ASTM 304L wedge wire screen for microfiltration systems
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel |
Properties: | Wedge wire screen |
Application: | wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of ASTM 304L wedge wire screen for microfiltration systems

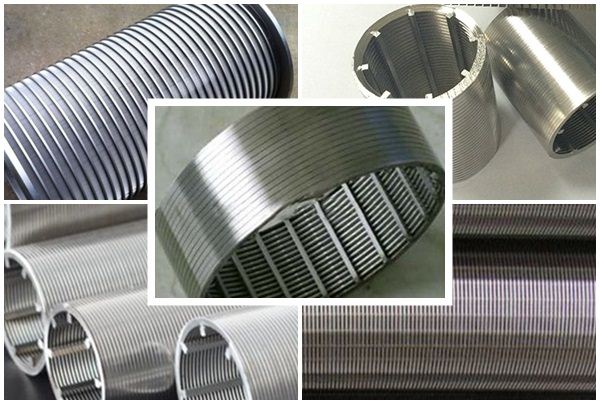

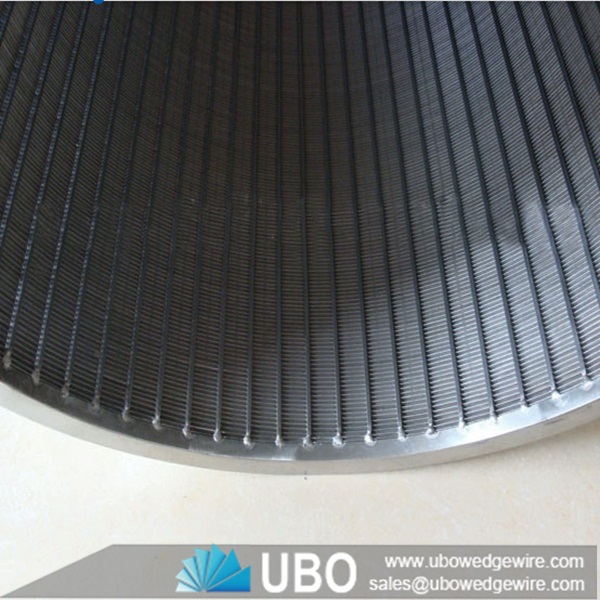

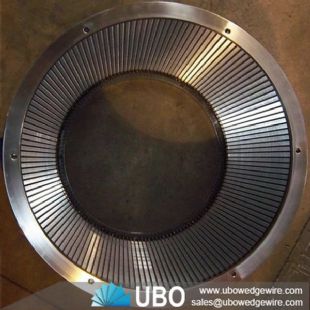

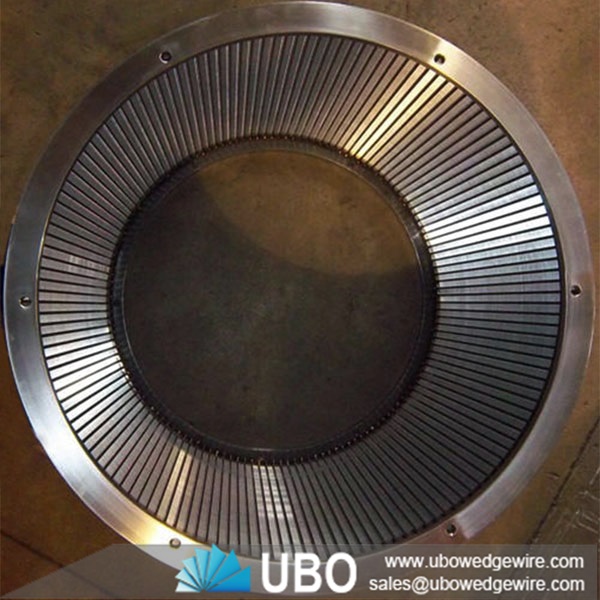

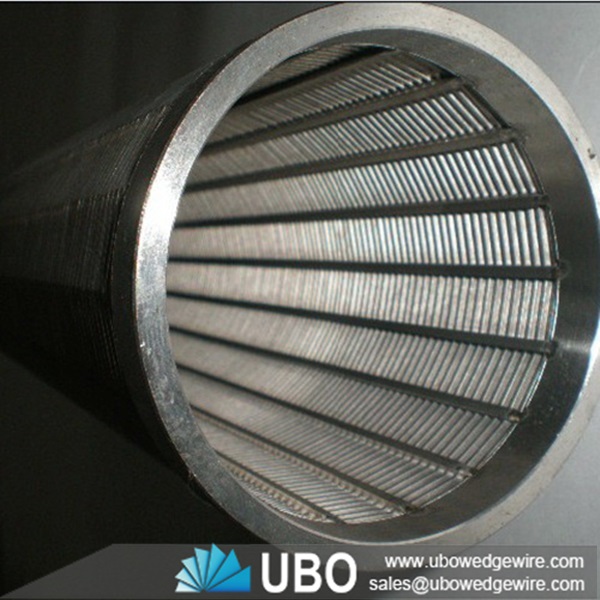

wedge wire screen for microfiltration system is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.
Application for ASTM 304L wedge wire screen for microfiltration systems:
wedge wire screens are widely used for wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining, painting as well as the industries of cigarete, sugar, foodstuff, noise-sliencer, environmetal protection, agriculral machine, chemical industry and pharmacy industry.
Features for ASTM 304L wedge wire screen for microfiltration systems:
1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2) Low cost operation.
3) Reduce the abrasion of the pump.
4) Extend the life span of well.
Characteristics for ASTM 304L wedge wire screen for microfiltration systems:
The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Specifications of ASTM 304L wedge wire screen for microfiltration systems:
Outside Diameter
|
Profile
wire
|
Rod
wire
|
Rod
quantity
|
Slot
size
|
Length
|
||
DN
|
Inch
|
mm
|
mm
|
mm
|
|
mm
|
mm
|
20
|
3/4
|
26.9
|
1.5*2
|
2*3
|
12
|
0.1~0.25
|
45~3000
|
25
|
1
|
33.7
|
1.5*2
|
2*3
|
14
|
0.1~0.25
|
45~3000
|
32
|
1~1/4
|
42.4
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000
|
40
|
1~1/2
|
48.3
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000
|
50
|
2
|
60.3
|
1.5*2
|
2*3
|
18
|
0.1~0.5
|
45~3000
|
65
|
2~2/2
|
76.1
|
1.5*2
|
2*3
|
20
|
0.1~0.5
|
45~3000
|
80
|
3
|
88.9
|
1.8*2.5
|
2*3
|
24
|
0.1~0.5
|
45~3000
|
100
|
4
|
114.3
|
1.8*2.5
|
2*3
|
30
|
0.5~2
|
1000~6000
|
125
|
5
|
139.7
|
2.3*2.7
|
2*3
|
36
|
0.5~2
|
1000~6000
|
150
|
6
|
168.3
|
2.3*2.7
|
3*5
|
44
|
0.5~2
|
1000~6000
|
200
|
8
|
219.1
|
3.3*4.5
|
3*4.7
|
56
|
0.5~2
|
1000~6000
|
250
|
10
|
273
|
3.3*4.5
|
4*6
|
66
|
0.5~2
|
1000~6000
|
300
|
12
|
323.9
|
3.3*4.7
|
4*6
|
72
|
0.5~2
|
1000~6000
|
350
|
14
|
355.6
|
3.7*5
|
4*6
|
80
|
0.5~2
|
1000~6000
|
400
|
16
|
406.4
|
1.5*2
|
2*3
|
94
|
0.1~2
|
1000~6000
|
450
|
18
|
457
|
2*3
|
4*5
|
112
|
0.1~2
|
500~400
|
500
|
20
|
508
|
2*3
|
4*5
|
124
|
0.1~2
|
500~400
|
550
|
22
|
559
|
2*3
|
4*5
|
140
|
0.1~2
|
500~400
|
600
|
24
|
610
|
2*3
|
4*5
|
156
|
0.1~2
|
500~400
|
Siot:0.1mm~2mm Tolerance:0.05
|
