Wedge Wire Distributor of Header Lateral

More Views

Wedge Wire Distributor of Header LateralWedge Wire Distributor of Header LateralWedge Wire Distributor of Header Lateral

Wedge Wire Distributor of Header Lateral

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Distributor of Header Lateral

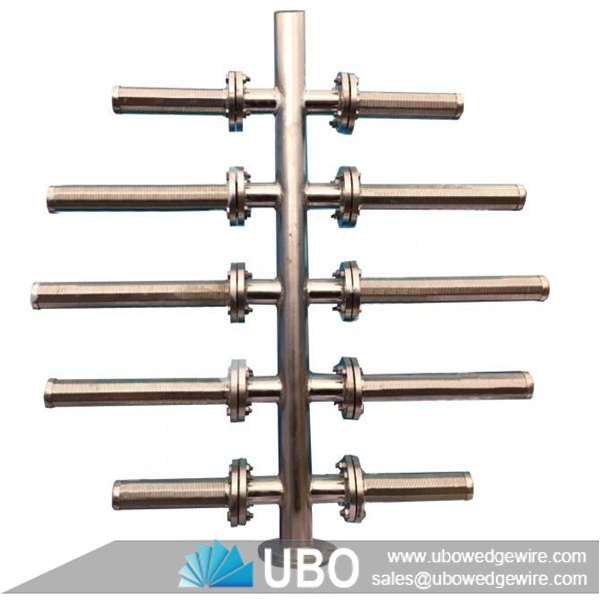

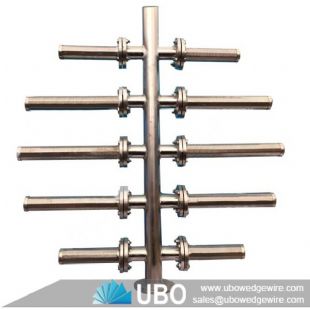

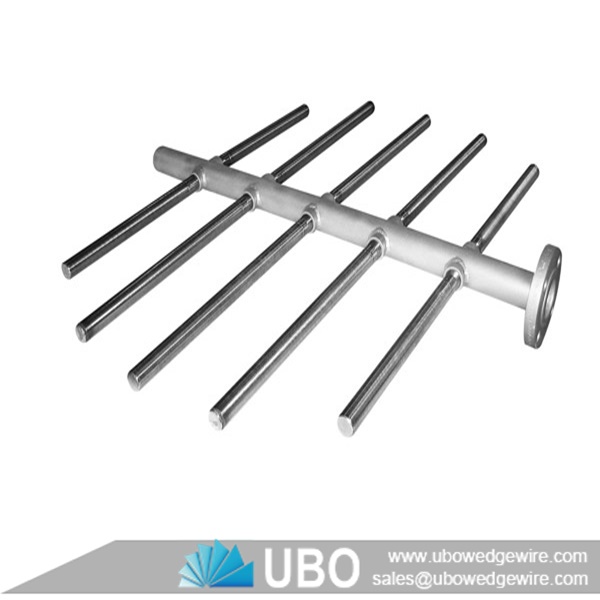

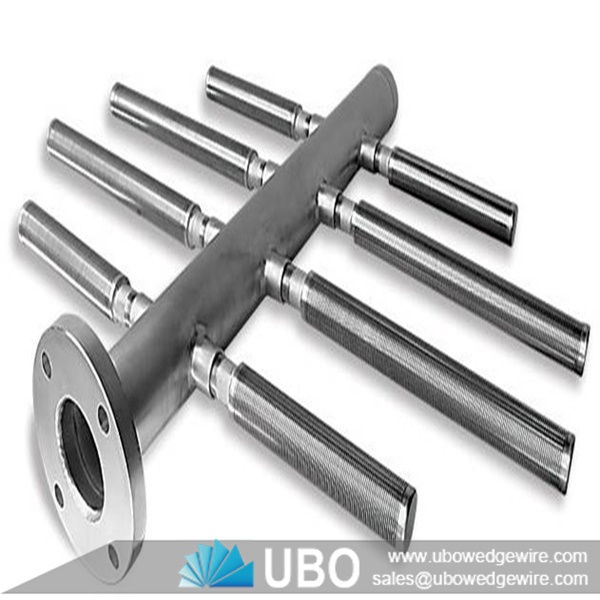

The system of header lateral is composed of a central tube, or alternatively a hub, equipped with several laterals to ensure perfect distribution of flow. This is achieved by conforming to the shape of the bottom of the vessel.

The following distribution and collection systems are used in numerous processes including water treatment, sweetened juice and the petrochemical industry:

• Adsorption by activated carbon

• Sand filters

• De-mineralisation – Softeners – Ion exchange resins

• MTBE processes

Each of our header lateral Systems are carefully designed from the specified design conditions including the volumetric flow rate, allowable pressure drop through the screen, resin/media to be retained and minimum open area to list a few.

Therefore it is very important to work closely with Completion Products during the design and engineering stage to ensure that all screen characteristics are accommodated.

Advantage of Wedge Wire Distributor of Header Lateral

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

wedge wire distributor of header lateral

Specifications of Wedge Wire Distributor of Header Lateral:

Material:stainless steel

Type:lateral screen pipe,or as your request




No.

(mm)TYPE

OD

(mm)

 ID

(mm)

Support wire Number

Filter direction

1

SRD25.4

25.4

18.6

12

FOTI

2

SRD 33

33

24

8

FOTI

3

SRD 37

37

28

8

FOTI

4

SRD 40

40

31

8/10

FOTI/FITO

5

SRD 45

45

36

10/12

FOTI/FITO

6

SRD 48

48

38

12

FOTI/FITO

7

SRD 60

60

51

12

FOTI/FITO

8

SRD 70

70

61

12/18

FOTI/FITO

9

SRD 85

85

76

18

FOTI/FITO

10

SRD 110

110

101

24

FOTI/FITO

11

SRD120

120

111

24

FOTI/FITO

Packaging and Transportation of Wedge Wire Distributor of Header Lateral:

Package: in wood case

Delivery Time: 5-25 days
