V Wire Wrapped Screen Resin Traps Wedge Wire Distributors / Collectors
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of V Wire Wrapped Screen Resin Traps Wedge Wire Distributors / Collectors

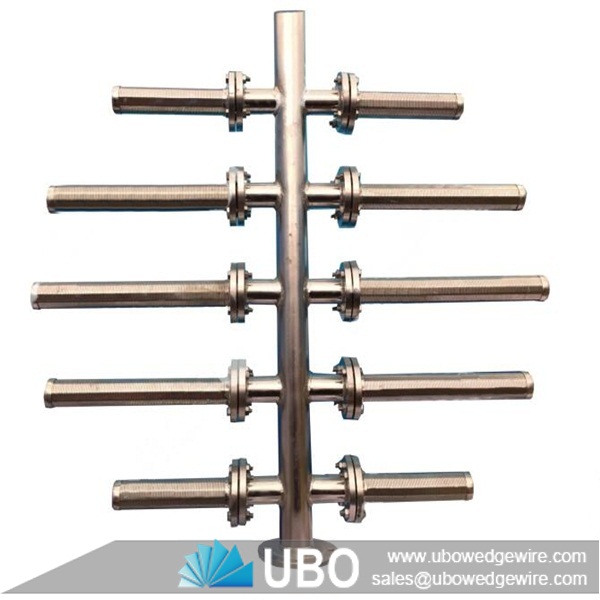

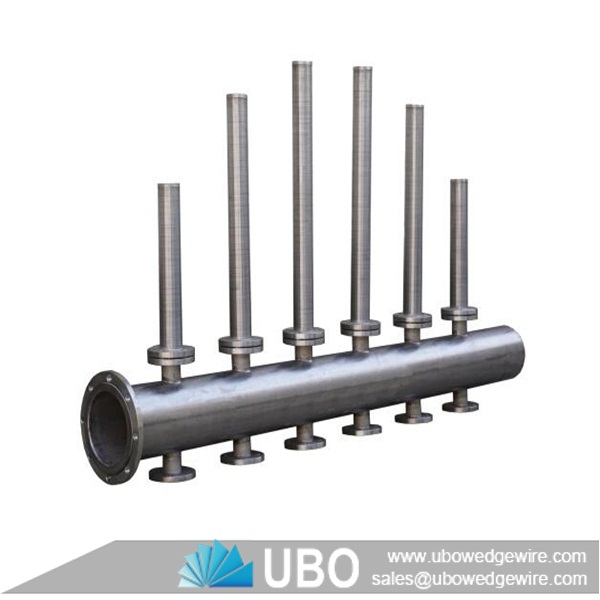

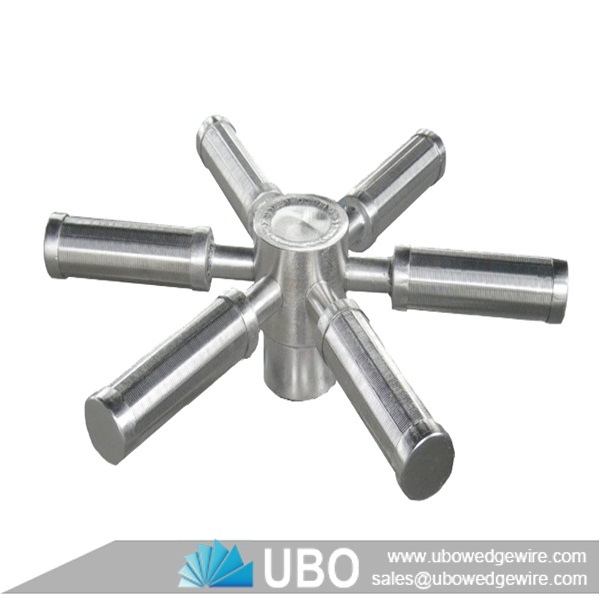

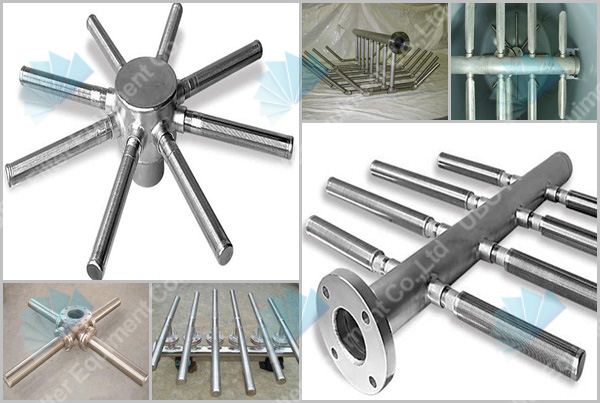

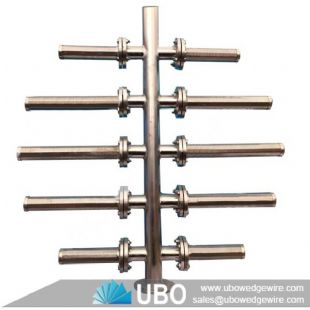

V Wire Wrapped Screen Resin Traps Wedge Wire Distributors / Collectors system comprises many slot tubes (laterals). They are positioned in parallel connected to a central pipe (header), or, positioned in star-form and connected to a central collector hub.A distributor-collector system is used in a treatment vessel containing for instance resin, active carbon, catalyst or another molecular bed, to retain the treatment media in the vessel. Normally an assembly of header and laterals is used at the top of the vessel for in-flow distribution. Another one is used at the bottom of the vessel for collecting the treated out-flow. The distributor-collector system creates an optimal flow distribution of liquids or gases throughout the vessel and avoids creation of preferential paths.Application:water treatment,gas treatment,chemical industry,petrochemical industry (only larger constructions serving as reactor internal).
Advantage of V Wire Wrapped Screen Resin Traps Wedge Wire Distributors / Collectors
Profile Screen Laterals is made of V shaped stainless steel wire. It has flow area.water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.
Features of V Wire Wrapped Screen Resin Traps Wedge Wire Distributors / Collectors
(1)Water distributor used for water treatment,such as RO plant,Softener system or water filter;
(2) High chemical resistance and pressure operation;
(3) Made of ABS synthetic resin;
(4) Max diameter of the matched tank: 400mm;
(5) Tank working pressure : 100/150PSI;
(6) Working temperature : 45C
Application of V Wire Wrapped Screen Resin Traps Wedge Wire Distributors / Collectors
The water distributor are widely used in ion exchange equipment, medium filter and sand filter filter, the resin tank, silicate and chemical industry, water treatment industry
Working Principle
Water device is mainly composed of mother pipe (center) of several wire pipe, via adjusting the number of size, type and distribution manifold, we can achieve excellent collection and distribution process. Water distribution device which can realize uniform and effective allocation and collection need to deal with liquid or gas.
Specifications of V Wire Wrapped Screen Resin Traps Wedge Wire Distributors / Collectors:
a. Raw material: SS321, SS304, SS316, SS316L, TaGr2, Low carbon, Hastelloy-C alloy.
b. Slot Size: 0.05, 0.025, 0.03, 0.04, 0.05...0.2 0.3 0.5 1.0.....60mm,
c. Wire diameter: 1.5x2mm, 2x3mm, 2x23.5, 3x7mm, 4x6mm.
d. Support rod: 2x3mm, 3x3.8mm, 3x5mm......5x6mm,
e. Length: 0.05m-6m,
f. OD: 25mm to 800mm,
g. Surface treatment: polishing, chroming, etc upon clients' request.
