Water slot well screen filter nozzle for liquid filtration

More Views

Water slot well screen filter nozzle for liquid filtrationWater slot well screen filter nozzle for liquid filtrationWater slot well screen filter nozzle for liquid filtration

Water slot well screen filter nozzle for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Water slot well screen filter nozzle for liquid filtration

Water slot well screen filter nozzle has many important roles to play and is useful for filtration in various industries. Hebei HighTop wedge wire screen nozzles are primarily used as add-ons to filtering equipment in the water petrol resin industry. That said, nozzles are also used in various industries including: water treatment, sea water conversion to fresh water plants and food chemistry filtration. This new type of filtration component is made from stainless steel material ensuring durability, and filtration precision starts from 20 microns. Nozzles are welded to the profile(s) on several connection areas to ensure stability.

Water slot well screen filter nozzle for liquid filtration

Advantage of water slot well screen filter nozzle for liquid filtration

High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Flat panel surface;
Fairly well precision and roundness;
Long work time.
Easy to clean and back wash;
Uniform gap.

Applications of water slot well screen filter nozzle for liquid filtration

The wedge wire screen nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

Water slot well screen filter nozzle for liquid filtration

Specifications of Water slot well screen filter nozzle for liquid filtration:

Water slot well screen filter nozzle for liquid filtration

No.

Type

Ton

Slot Opening

Size

0.2-0.25mm slot opening Area of through-flow mm2 (reference)

D

L1

L

M

1

TYS45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

TYS53-2-B

1

0.2-0.5

53

45

100

24

570

3

TYS53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

TYS57-3-B

2

0.2-0.5

57

45

110

32

600

5

TYS70-4-B

3

0.2-0.5

70

55

120

32

1000

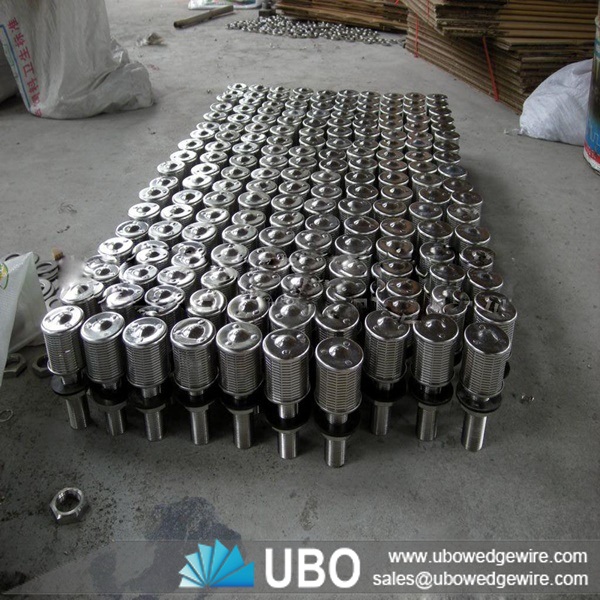

Packaging and Transportation of Water slot well screen filter nozzle for liquid filtration:
