Water filter nozzle for filtration
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen nozzle |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

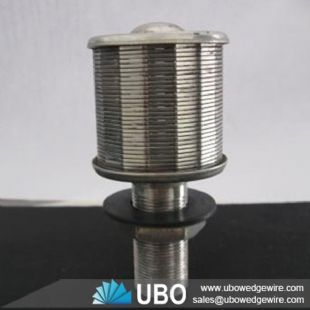

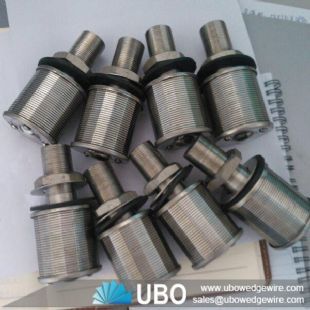

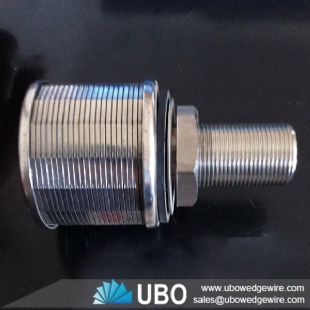

Details of Water filter nozzle for filtration
Water filter nozzle as the important parts used in the water treatment equipment for power plant,waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm.
We can manufacture single Water filter nozzle,double wedge wire nozzle,also used in the lon exchanger.
Benefits of Water filter nozzle for filtration
Economical design
Non-plugging design
High open area
Increased strength and corrosion resistance
Usages of Water filter nozzle for filtration
Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.
Specifications of Water filter nozzle for filtration:
Material:stainless steel
Type:filter nozzle
Thread:3/4''NPT or as your special requirement
|
Type |
Ton |
Slot Opening |
Size |
0.2-0.25mm slot opening Area of through-flow mm2(reference) |
|||
D |
L1 |
L |
M |
|||||
1 |
SH45-1-C |
0.5 |
0.2-0.5 |
45 |
45 |
95 |
24 |
500 |
2 |
SH53-2-B |
1 |
0.2-0.5 |
53 |
45 |
100 |
24 |
570 |
3 |
SH53-2-C |
1.5 |
0.2-0.5 |
53 |
50 |
110 |
32 |
700 |
4 |
SH57-3-B |
2 |
0.2-0.5 |
57 |
45 |
110 |
32 |
600 |
5 |
SH70-4-B |
3 |
0.2-0.5 |
70 |
55 |
120 |
32 |
1000 |
Packaging and Transportation of Water filter nozzle for filtration:
