Water Well Intake Sand Screen Wedge Wire well screen

More Views

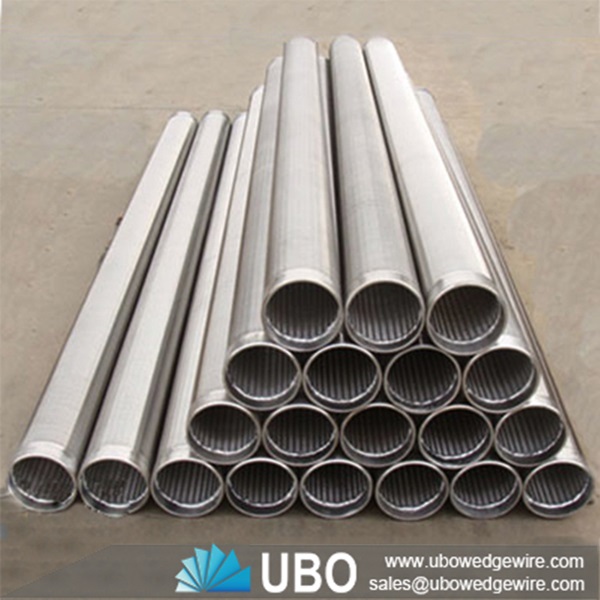

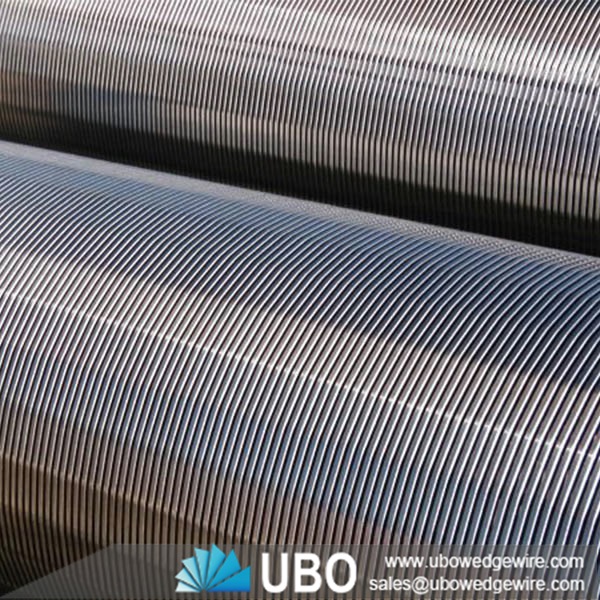

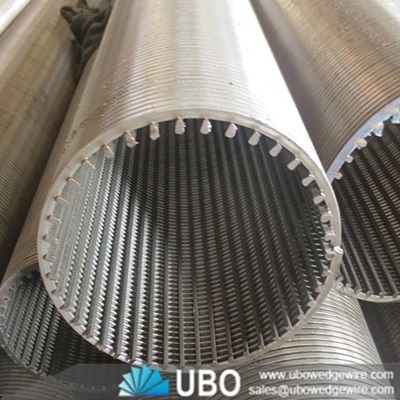

Water Well Intake Sand Screen Wedge Wire well screenWater Well Intake Sand Screen Wedge Wire well screenWater Well Intake Sand Screen Wedge Wire well screen

Water Well Intake Sand Screen Wedge Wire well screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Water Well Intake Sand Screen Wedge Wire well screen

     Metal wedge wire screen filter is composed of ribs and V—winding wire, manufactured with advanced special welding equipment.Ribs and V—winding wire are connected with resistance weld by special equipment and has the advantages, such as, high welding strength, homogeneous gap, corrosion resistance, large effective filtration area, good permeability,simple structure, and slot size is 20 micron or larger for users to choose freely.

Application for Water Well Intake Sand Screen Wedge Wire well screen :

Wedge wire screen pipe are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

Feature for Water Well Intake Sand Screen Wedge Wire well screen :

Wedge Wire screen have the features of great strength , precision , long service life and a wide range of applications in the field of process and engineering such as waste water treatment , sugar juice filtration , crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation , filtration of oils , greases , water , fuels , paints , food products , liquid cooling agents , and chemicals etc.

Advantages for Water Well Intake Sand Screen Wedge Wire well screen :

•High mechani cal strength to withstand greater pressure difference.
•The homogeneous filtration gap forms a relatively homogeneous cake to facilitate backwash regeneration.
•Wedged gap can improve backwash regeneration capacity.
•Pressure, temperature, aging and corrosion—resistant, suitable for all kinds of fluids.
•Metal wedged wire mesh is adopted as filter element and has the advantages, such as, high mechanical strength, high g reater pressure difference, easy cleaning, and regeneration. Al most two—dimensional filter mesh have no par— ticle packing dead space, the wedged gap can gather energy when backwashing, with good resuIt.

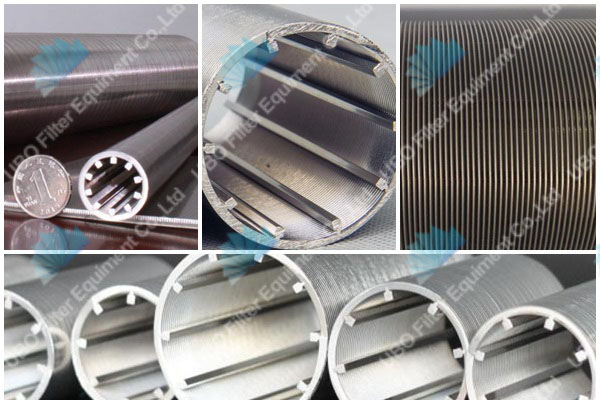

Water Well Intake Sand Screen Wedge Wire well screen

Specifications of Water Well Intake Sand Screen Wedge Wire well screen:

Water Well Intake Sand Screen Wedge Wire well screen



Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05

Packaging and Transportation of Water Well Intake Sand Screen Wedge Wire well screen:

Water Well Intake Sand Screen Wedge Wire well screen



Water Well Intake Sand Screen Wedge Wire well screen



Water Well Intake Sand Screen Wedge Wire well screen
