Vessel Internals Wedge Wire Screen Nozzles for Filtration

More Views

Vessel Internals Wedge Wire Screen Nozzles for FiltrationVessel Internals Wedge Wire Screen Nozzles for FiltrationVessel Internals Wedge Wire Screen Nozzles for Filtration

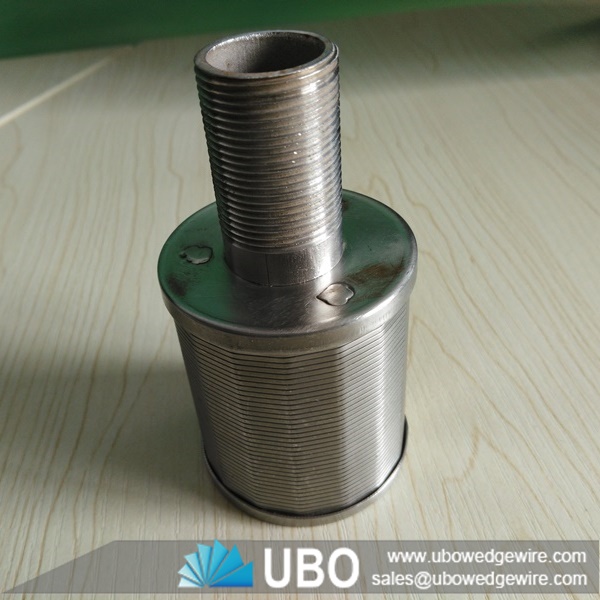

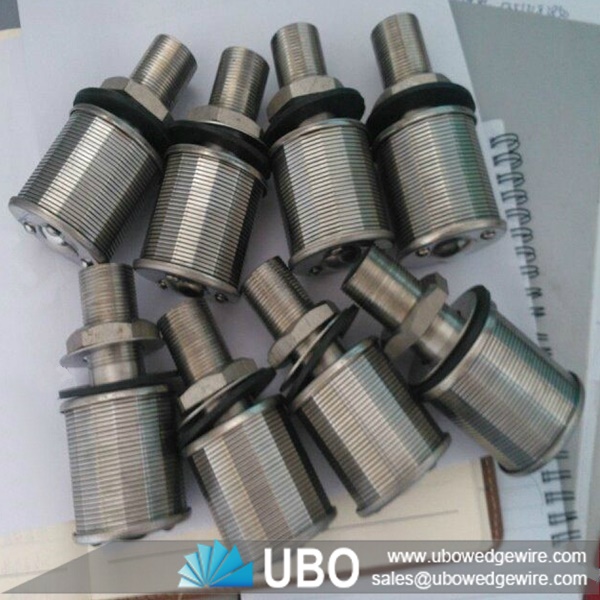

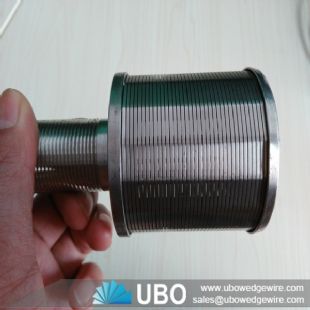

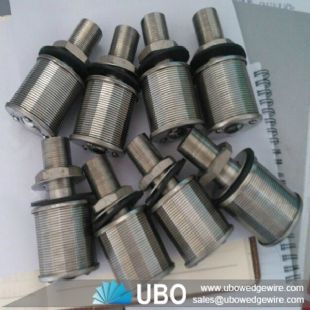

Vessel Internals Wedge Wire Screen Nozzles for Filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wegde wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Vessel Internals Wedge Wire Screen Nozzles for Filtration

Wedge Wire screen nozzle manufactured by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. Screen sections are usually twenty feet long. Commonly referred to as continuous slot or wire wrap screen, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained.



Advantage of Vessel Internals Wedge Wire Screen Nozzles for Filtration



-- High strength;
-- Good resistance to abrasion and corrosion;
-- High rigidity;
-- Good in filtration and fluidity;
-- Flat panel surface;
-- Fairly well precision and roundness;
-- Long work time.
-- Easy to clean and back wash;
-- Uniform gap.

Application of Vessel Internals Wedge Wire Screen Nozzles for Filtration



Above mentioned designs are used widely in down-flow reactors for liquid/solid or gas/solid separation.
The liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles.

Vessel Internals Wedge Wire Screen Nozzles for Filtration

Specifications of Vessel Internals Wedge Wire Screen Nozzles for Filtration:

Vessel Internals Wedge Wire Screen Nozzles for Filtration

Type in catalogue

Slots (mm)

Thread

ΦA (mm)

Thread length L1(mm)

Shaft L2(mm)

A

0.05

0.1

0.2

0.3

0.5

1

1 ¼ "WW

32

25,30,45,+5+5...

80,110,140,200,

250,300,350...

M30*3.5

30

30

G 3/4"

26.5

25,30,45,+5+5...

80,110,140,200,

250,300,350...

1"WW

25.4

20,45,+5+5...

M24

24

25,45,+5+5...

M22*1.5

22

45,+5+5...

G 1/2"

21

20

80,110,140,200..

M20

20

45,+5+5...

G 3/8"

16.7

20

Packaging and Transportation of Vessel Internals Wedge Wire Screen Nozzles for Filtration:
