V Slot Wire Screen Filter for Liquid Filtration

More Views

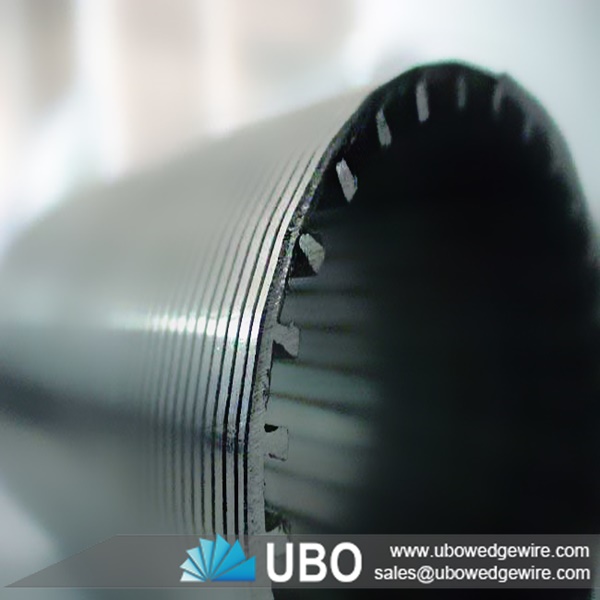

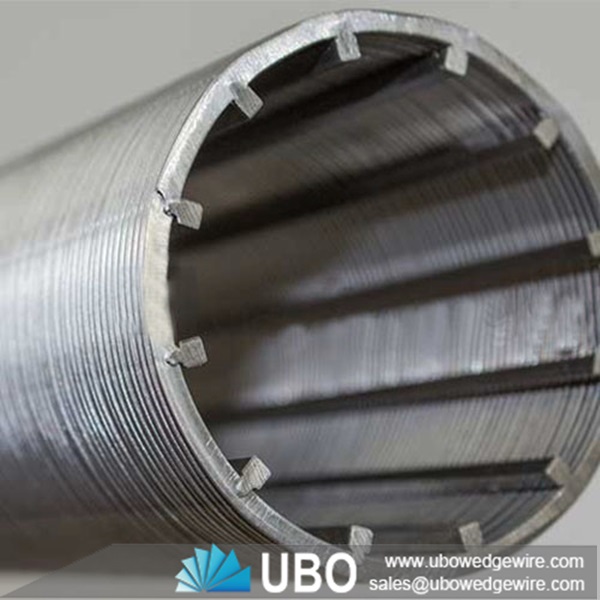

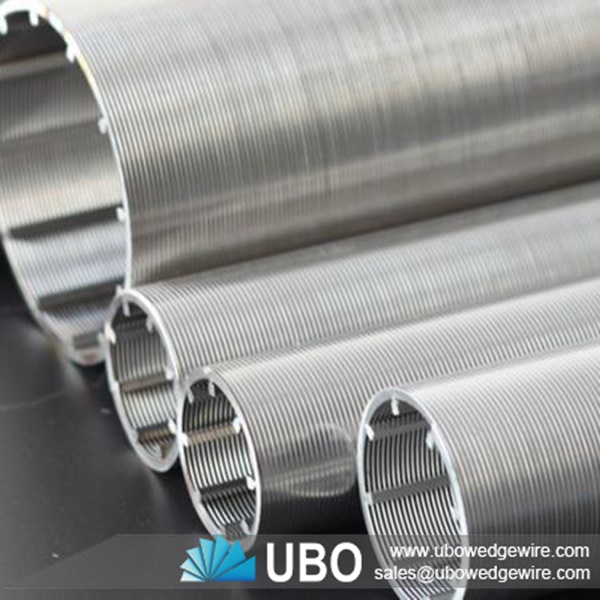

V Slot Wire Screen Filter for Liquid FiltrationV Slot Wire Screen Filter for Liquid FiltrationV Slot Wire Screen Filter for Liquid Filtration

V Slot Wire Screen Filter for Liquid Filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of V Slot Wire Screen Filter for Liquid Filtration

V slot wire screen filter and the longitudinal support rods together forms a pipe filter for well screen. The V wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. So wedge wire pipe well screen has sturdy constriction and good mechanical property. It is used to prevent sands from entering the water.

The V slot wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Advantages of V Slot Wire Screen Filter for Liquid Filtration

1) Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2) Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3) Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4) Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)

5) Long live: Welded at each intersection creating a strong and durable screen.

6) Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7) Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.

Application of V Slot Wire Screen Filter for Liquid Filtration

Stainless steel pipe filter screen is a kind of filtered water tubing with the perforation, it can use with the deep well pump, water diving pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

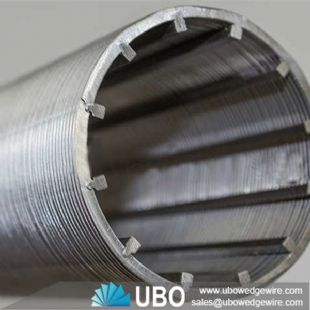

V slot wire screen filter for liquid filtration

Specifications of V Slot Wire Screen Filter for Liquid Filtration:

Specification(wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length:

up to 6 meters

Diameter:

  from 25mm to 1200mm.

V slot wire screen filter for liquid filtration

Packaging and Transportation of V Slot Wire Screen Filter for Liquid Filtration:

Package: in wood case
Delivery Time: 5-25 days
