Quality Wedge Wire Screen Manufacturer in China

Supply Stainless Steel Wedge Wire Screen Panel for Geothermal

More Views

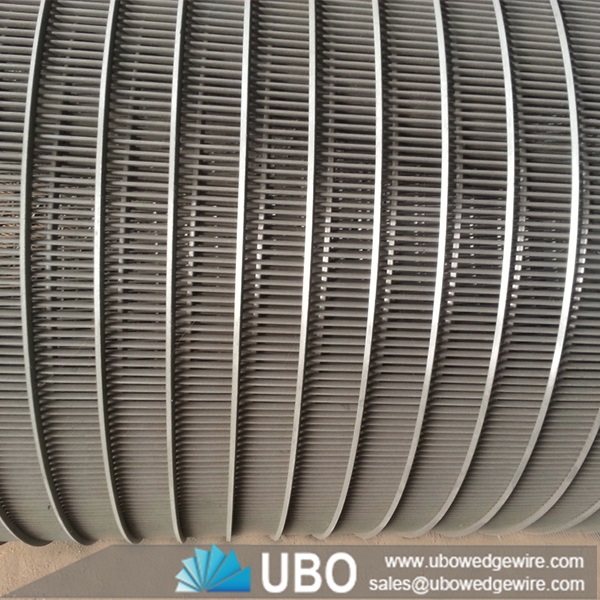

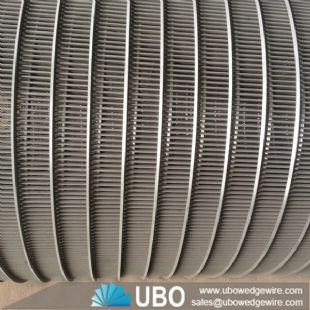

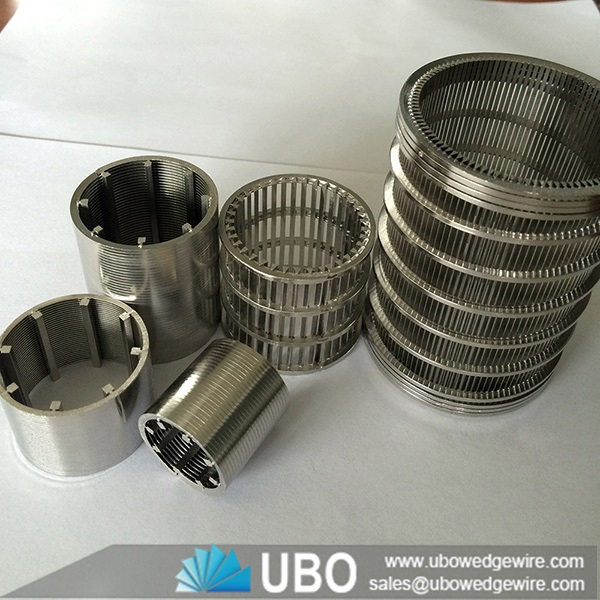

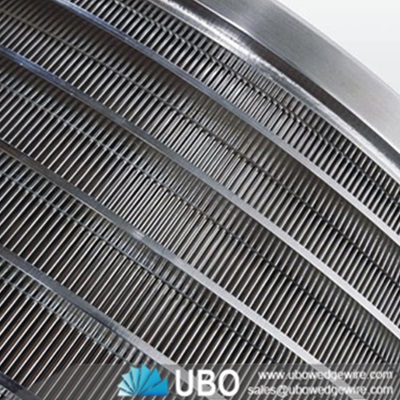

Supply Stainless Steel Wedge Wire Screen Panel for GeothermalSupply Stainless Steel Wedge Wire Screen Panel for GeothermalSupply Stainless Steel Wedge Wire Screen Panel for Geothermal

Supply Stainless Steel Wedge Wire Screen Panel for Geothermal

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wire mesh
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Supply Stainless Steel Wedge Wire Screen Panel for Geothermal

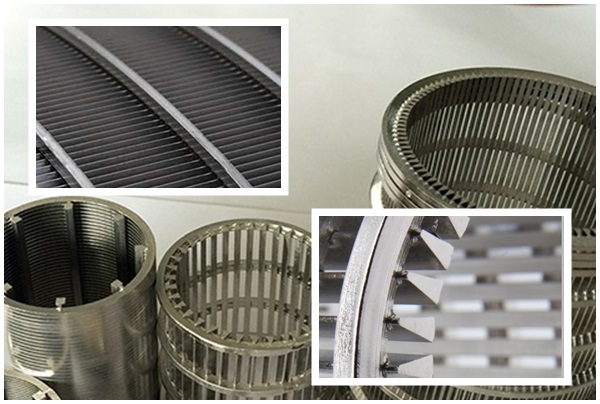

Wedge wire screen products consist of V Shaped profile wire and the longitudinal support rods. Each intersection point The V Shape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to of these wires is fusion welded, so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure, so it can filter sand better.

Meanwhile, the slot can change according to the real condition of the earth. If you are interested in our product, please contact us, and for more information.

 Supply Stainless Steel Wedge Wire Screen Panel for Geothermal

Application for Supply Stainless Steel Wedge Wire Screen Panel for Geothermal:

Wedge Wire v wedge wire stainless steel water well pipe screen are mainly used for the water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, sewage treatment and other industries, water, oil or gas filter and other filtration equipment.

Characteristics for Supply Stainless Steel Wedge Wire Screen Panel for Geothermal:

1) They consist of V-shape or wedge shape profile wire and the longitudinal support rods.

2) The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.

3) Each intersection point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

Customized design for Supply Stainless Steel Wedge Wire Screen Panel for Geothermal:

The design is customized to your demands:

-- Slot opening from 50 micron up to 2000 micron

-- All API and ANSI pipe sizes are available

Customized construction:

-- Lower V-wires for reduced OD

-- Higher support rods for more standoff

-- Customized end-fittings and threaded connections

-- Fixation of screen by welding or shrink fitting of end-rings to the base-pipe

 Supply Stainless Steel Wedge Wire Screen Panel for Geothermal

Specifications of Supply Stainless Steel Wedge Wire Screen Panel for Geothermal:

 Supply Stainless Steel Wedge Wire Screen Panel for Geothermal


1) OD(outside diameter):usually 6-5/8" 7" 8-5/8" 9-5/8" 10-3/4" 12" 12-3/4" by our customers' requirements.

2) Material:carbon steel or stainless steel(201,304,304L,316, 316L)

3) Slot size:given by customers. We can do 0.05-2mm.

4) Open area:a maximum open area of 60% is offered facilitating high flow capacity and low inlet resistance resulting in extended well life.

5) Wire and rod dimensions:obtained through well depth, or collapse strength and tensile strength, which are furnished by customers.

6) Connection types:usually STC threads or a passage of welded ring ( plain end and beveled end), both of them are welded together with the portion of screen.

SLOT
(INCH)
LENGTH
(m)
WIDTH
(m)
COLLAPSE
STERENG
(PSI)
TENSILE
WEIGHT
(TON)
WRAP
(thick*deep)
(mm)
RODS
(mm)
0.04
1-6
0.5-2
395
6
2.2*3.0
3.8mm/22
0.04
1-6
0.5-2
395
6
2.3*3.0
3.8mm/22
0.04
1-6
0.5-2
252
8
2.3*3.5
3.8mm/32
0.01
1-6
0.5-2
399
10.5
3.0*5.0
3.8mm/48
0.02
1-6
0.5-2
370
10.5
3.0*5.0
3.8mm/48
0.04
1-6
0.5-2
323
10.5
3.0*5.0
3.8mm/48
0.01
1-6
0.5-2
206
11
3.0*5.0
3.8mm/50
0.02
1-6
0.5-2
191
11
3.0*5.0
3.8mm/50
0.04
1-6
0.5-2
167
11
3.0*5.0
3.8mm/50

Packaging and Transportation of Supply Stainless Steel Wedge Wire Screen Panel for Geothermal:

 Supply Stainless Steel Wedge Wire Screen Panel for Geothermal
