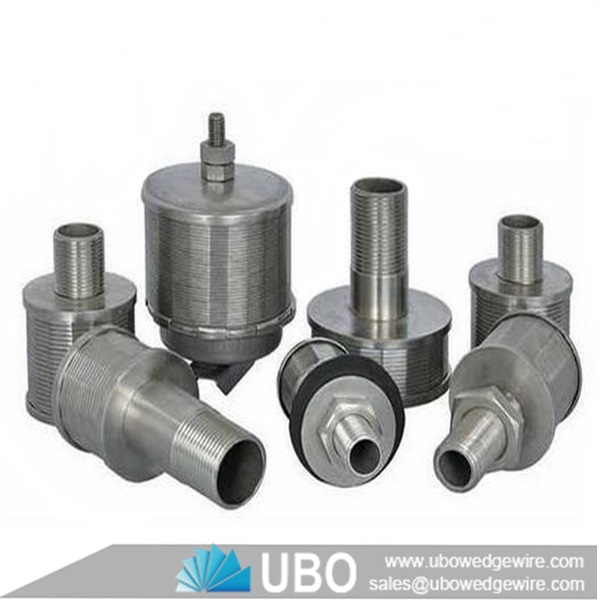

Stainless steel wedge wire water filter cap

More Views

Stainless steel wedge wire water filter capStainless steel wedge wire water filter capStainless steel wedge wire water filter cap

Stainless steel wedge wire water filter cap

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter Nozzle
Application:the water treatment, water softening, conversion of sea water into fresh water, the filter of food chemistry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel wedge wire water filter cap

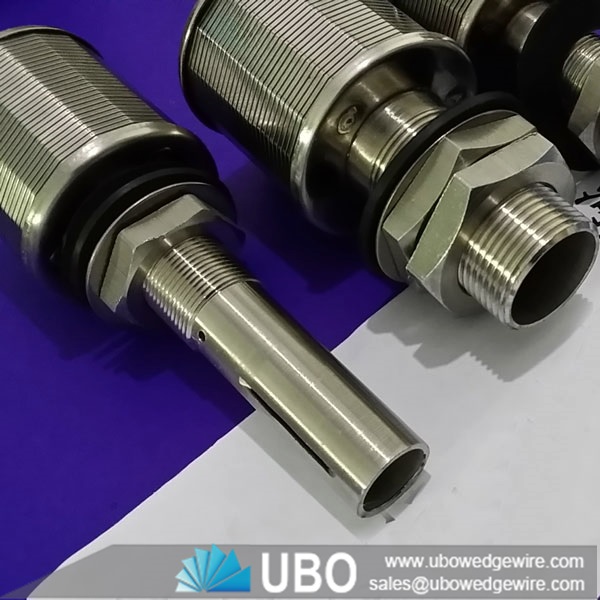

     The v-wire screen nozzle in a nozzles a slot tube. Nozzles are closed on one side and have a threaded fitting on the other. The flow is always out to in. Standard nozzles are 50 mm in diameter, all having a flow-out-to-in (FOTI) filtration.

Application for Stainless steel wedge wire water filter cap :

The Stainless steel wedge wire water filter cap with thread coupling can be fixed on the filtering equipment for the filtration of water petrol resin and other medium. Also it can be used in the water treatment, water softening, conversion of sea water into fresh water, the filter of food chemistry.

features for Stainless steel wedge wire water filter cap :

Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.
It is possible to clean the wedge wire screen with a reversed flow (back flushing).

Operating principle for Stainless steel wedge wire water filter cap :

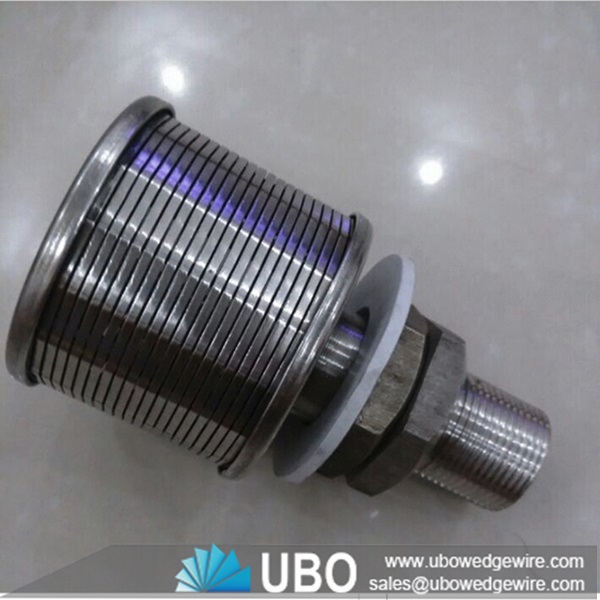

It consists of v-shaped profiles welded accurately on cross support bars that allows to control the distance between the v-shaped profiles. This distance is the slot opening.

Stainless steel wedge wire water filter cap

Specifications of Stainless steel wedge wire water filter cap:

Stainless steel wedge wire water filter cap



Type
Slots mm
ΦA
ΦB
L1mm
L2mm
AM
0.05,
0.1,
0.2,
0.3,
0.5,
1.0
G2"
G1 1/2"
G2"
G2"
Φ60
1 1/2"NPT
2 1/2"
Φ50
Φ38
1 1/4"NPT
1 1/2"NPT
G2"
1 1/4"NPT
Φ60
30,55
30,55
30
30
30
30
20
73, 126, 180, 231, 284, 338, 389



Note: Other specifications can be customized according to your requirement
