Stainless steel wedge wire slot panel for filtration

More Views

Stainless steel wedge wire slot panel for filtrationStainless steel wedge wire slot panel for filtrationStainless steel wedge wire slot panel for filtration

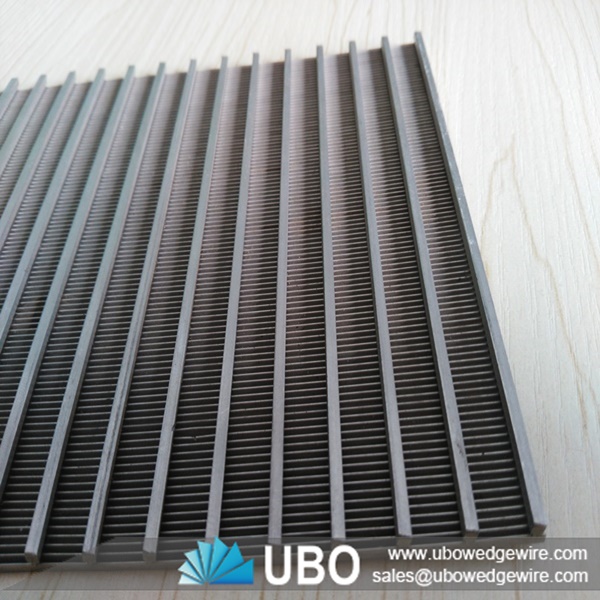

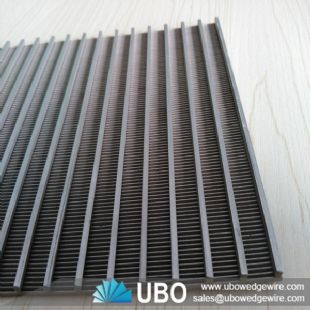

Stainless steel wedge wire slot panel for filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel wedge wire slot panel for filtration

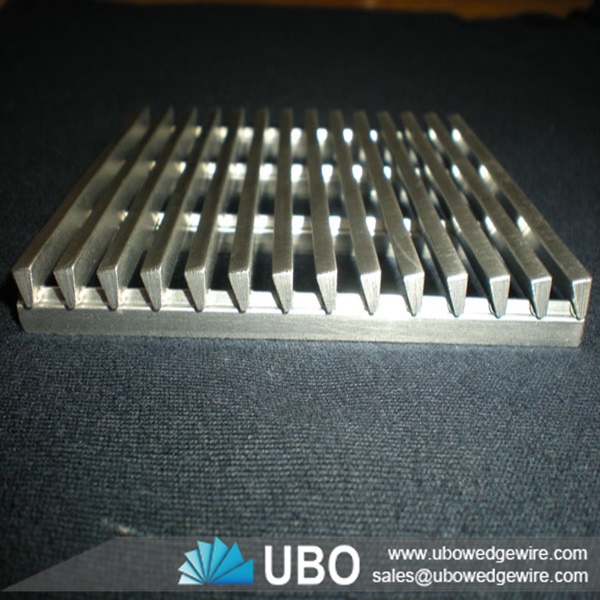

Stainless steel wedge wire slot panel is a sieve made from looped wires formed into a deep wedge-shaped section. Individual wedge wires are built into " Panels " by threading cross rods of suitable diameter through the loops. The whole is then clamped and made secure usually by riveting or putting ring nuts over the cross rod ends or by welding.

Stainless steel wedge wire slot panel can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.

Advantages ofStainless steel wedge wire slot panel for filtration

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer)
A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.

Application of Stainless steel wedge wire slot panel for filtration

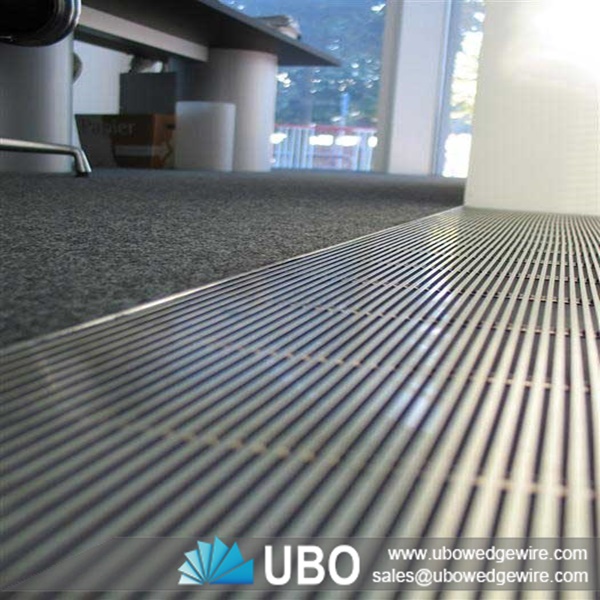

wedge wire screen panel is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens.

Stainless steel wedge wire slot panel for filtration

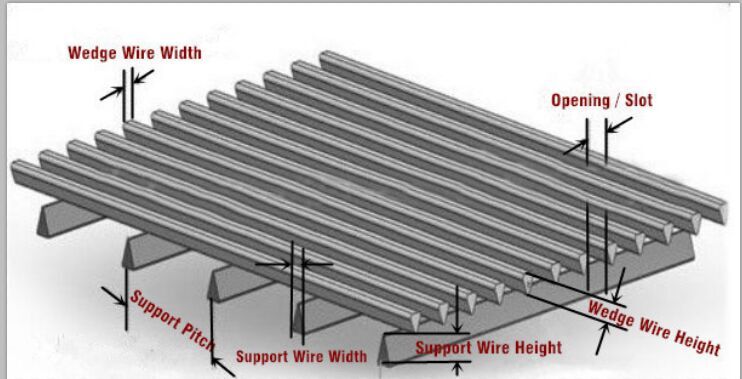

Specifications of Stainless steel wedge wire slot panel for filtration:

Specification
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Length max6000mm
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.

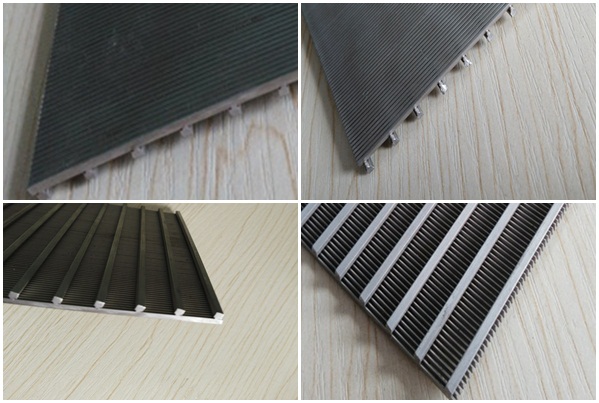

Stainless steel wedge wire slot panel for filtration

Packaging and Transportation of Stainless steel wedge wire slot panel for filtration:

packing

transportation
