Flat wedge wrap v wire screen plate stainless steel screen slot well water panel

More Views

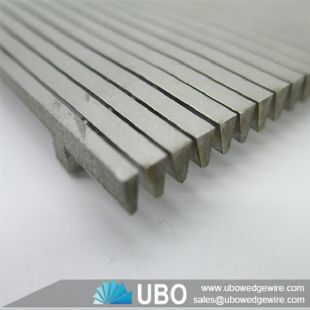

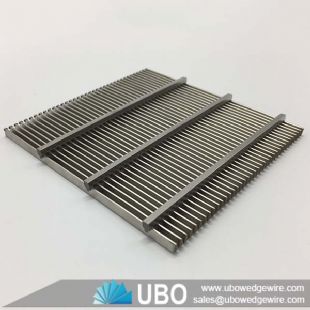

Flat wedge wrap v wire screen plate stainless steel screen slot well water panelFlat wedge wrap v wire screen plate stainless steel screen slot well water panelFlat wedge wrap v wire screen plate stainless steel screen slot well water panel

Flat wedge wrap v wire screen plate stainless steel screen slot well water panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Flat wedge wrap v wire screen plate stainless steel screen slot well water panel

Flat wedge wrap v wire screen plate stainless steel screen slot well water panels are welded steel structure, used for filtration, separation and retention media.
It is available in a wide variety of shapes and sizes. From two basic forms, slot tubes and flat screens, almost all shapes and sizes can be developed to fit customers´ requirements.

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.

Wedge wire screens are either flow-out-to-in or flow-in-to-out.

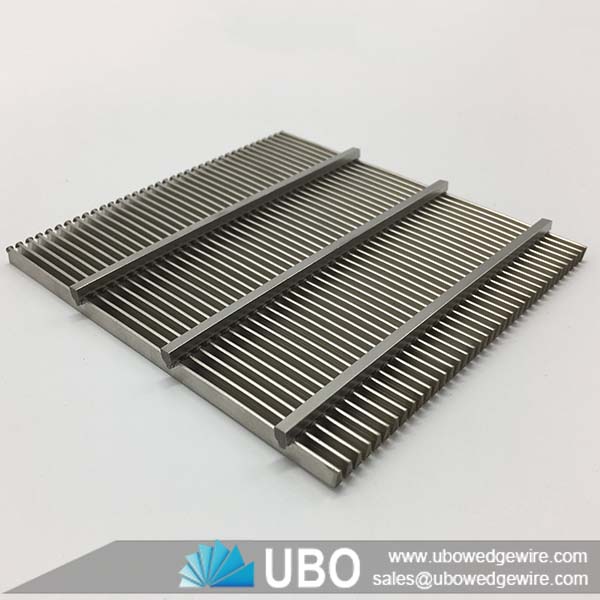

Flat wedge wrap v wire screen plate stainless steel screen slot well water panel

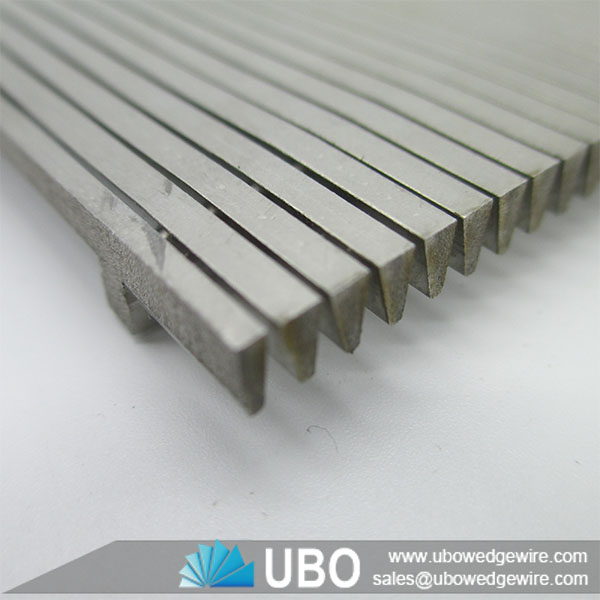

Flat wedge wrap v wire screen plate stainless steel screen slot well water panel

Characteristic of Flat wedge wrap v wire screen plate stainless steel screen slot well water panel

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

Uses of Flat wedge wrap v wire screen plate stainless steel screen slot well water panel

Use in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

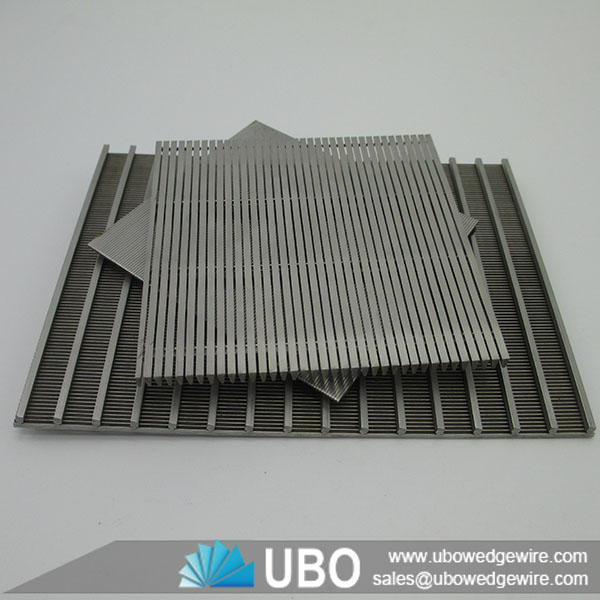

Flat wedge wrap v wire screen plate stainless steel screen slot well water panel

Specifications of Flat wedge wrap v wire screen plate stainless steel screen slot well water panel:

Flat wedge wrap v wire screen plate stainless steel screen slot well water panel

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Other Shapes

Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8x2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

With the frame, without any frame, according to request.

Note

Customized According To Requirement

Packaging and Transportation of Flat wedge wrap v wire screen plate stainless steel screen slot well water panel:

Flat wedge wrap v wire screen plate stainless steel screen slot well water panel
