Quality Wedge Wire Screen Manufacturer in China

Stainless steel wedge wire screen sand control screen pipe for ground water

More Views

Stainless steel wedge wire screen sand control screen pipe for ground waterStainless steel wedge wire screen sand control screen pipe for ground waterStainless steel wedge wire screen sand control screen pipe for ground water

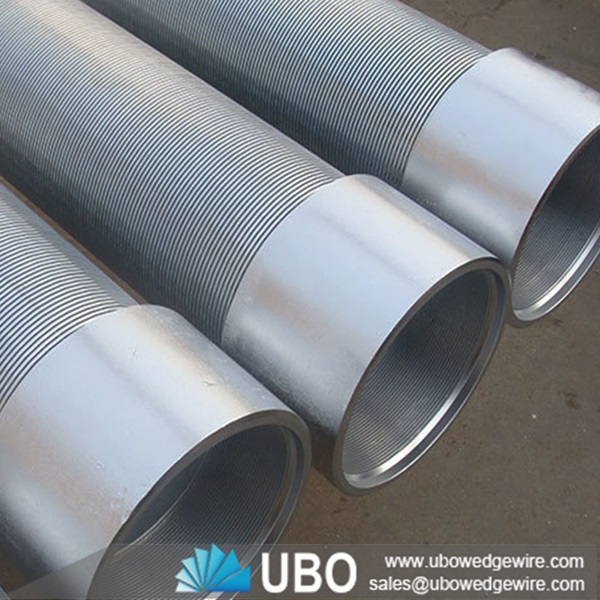

Stainless steel wedge wire screen sand control screen pipe for ground water

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatme

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel wedge wire screen sand control screen pipe for ground water

This type of screen made up of rods and warp.the rod can be round wire,triangular wire and trapezoid wire.The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.


The warp is triangular wire(v-shape wire).The water well screens have astructure and high open area;as well as accurate slot dimension.Sand filter screen have heat -resising,anti-corrosive,good machine capability,last long ,satefy and reliability and so on.

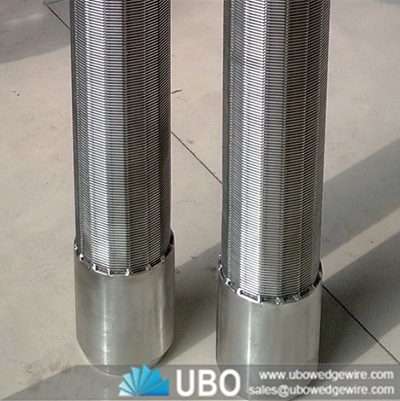

Stainless steel wedge wire screen sand control screen pipe for ground water

Application for Stainless steel wedge wire screen sand control screen pipe for ground water:

wire wrapped screen pipe is widely used in oil, gas, water and sand control industry, its position in the water well industry is particularly important, is one of the most widely used in various water filter screen.

Features for Stainless steel wedge wire screen sand control screen pipe for ground water:

This product is mainly body joints, wrist, wire winding tube and an inner tube.Liquid flow is from the outside to the inside, through the wire winding tube gap filter via the inner tube holes into the wire wrapped screen cavity. Because the screen section is trapezoidal,the gap is always outside small and inside large, very favorable filtration and washing. Wire wrapped screen length and filtering accuracy can be customized according to requirements. Besides, V type, wedge type and other types are available.

Advantages for Stainless steel wedge wire screen sand control screen pipe for ground water:

Stainless steel wedge wire filter provide a unique combination of the most important features required for maximum screening efficiency.

1) Free Clearance

The wedge-shaped sections of the wire form apertures that become progressively wider in a
downward direction, thus ensuring rapid flow of material through them. Clogged and blinded apertures are reduced to an absolute minimum.

2) Lateral Strength

In our opinion no form of screening surface with apertures as fine as those of wedge wire screens, can compare with the mechanical strength and working efficiency of wedge wire.

3) Percentage Open Area

For a given aperture size, wedge wire screens have a much larger percentage of open area than conventional sieves.

4) Wearing Life

Owing to a greater wearing area being provided by flat top surfaces, wedge wire screens retain their aperture for a longer duration than round wire screens.

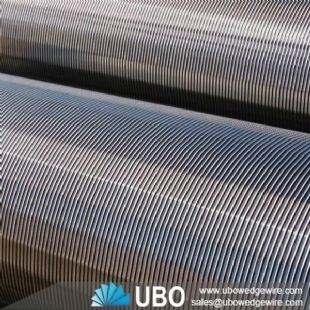

Stainless steel wedge wire screen sand control screen pipe for ground water

Specifications of Stainless steel wedge wire screen sand control screen pipe for ground water:

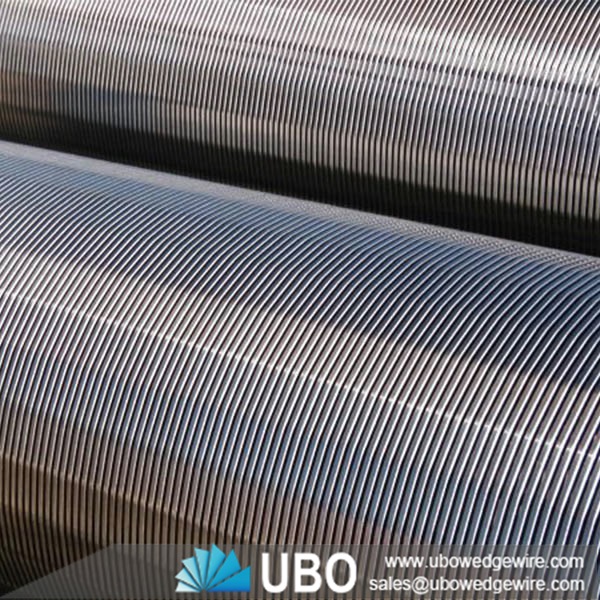

Stainless steel wedge wire screen sand control screen pipe for ground water



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless steel wedge wire screen sand control screen pipe for ground water:

Stainless steel wedge wire screen sand control screen pipe for ground water
