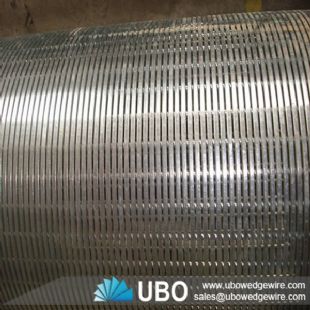

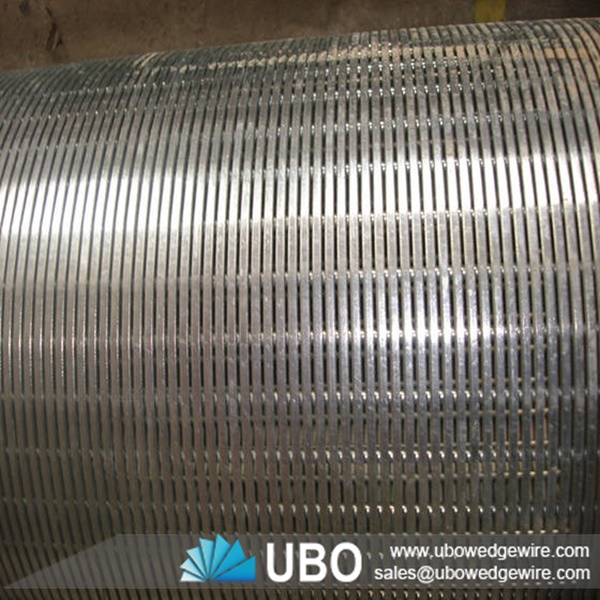

Stainless steel slot well screen pipe for liquid filtration

More Views

Stainless steel slot well screen pipe for liquid filtrationStainless steel slot well screen pipe for liquid filtrationStainless steel slot well screen pipe for liquid filtration

Stainless steel slot well screen pipe for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel slot well screen pipe for liquid filtration

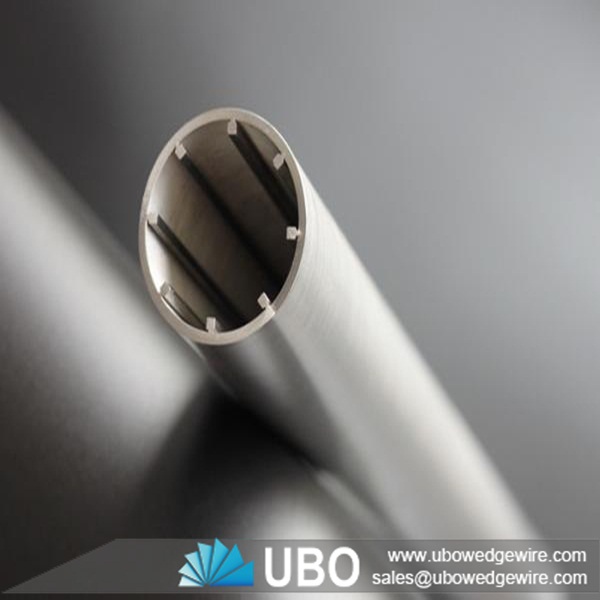

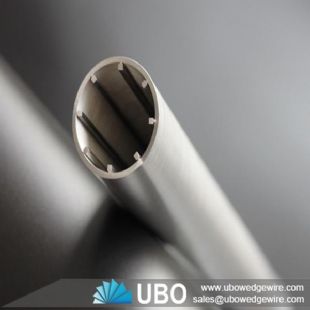

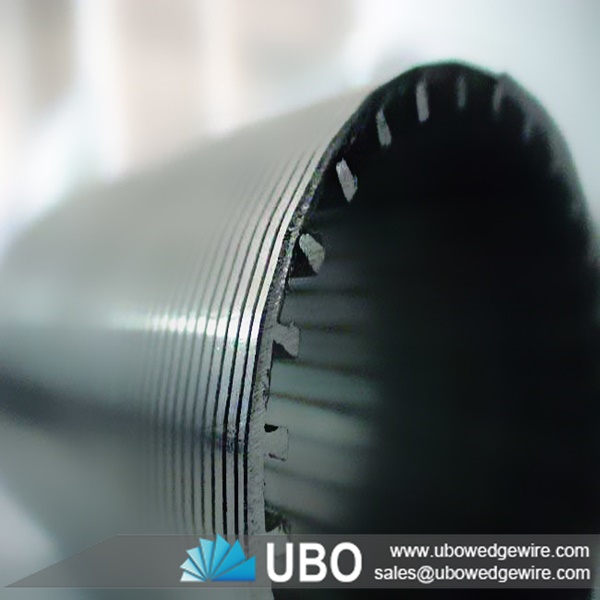

Stainless steel slot well screen pipe, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance. The wedge wire screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

Advantage of stainless steel slot well screen pipe for liquid filtration

1) Non-clogging construction: The V-shape section plane of wedge wire screens (Wedge Wire type screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2) Large Filtering Area: The consecutive slot of wedge wire screens (Wedge Wire type screens) have wider open area,
and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

3) Long service life: Wire and support rods are all-welded, which makes wedge wire screens (Wedge Wire types screens) more robust and longer life.

4) Excellent construction strength: The longitudinal support rods and the continuous slot make the wedge wire screens(Wedge Wire type screens) have more excellent pressure-resistant performance.

5) Specifications and end connections of wedge wire screens(Wedge Wire screens) can me fabricated according to customers’ requirements.

Usages of stainless steel slot well screen pipe for liquid filtration

The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Stainless steel slot well screen pipe for liquid filtration

Specifications of Stainless steel slot well screen pipe for liquid filtration:

Stainless steel slot well screen pipe for liquid filtration

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note: Other specifications can be customized according to your requirement

Stainless steel slot well screen pipe

Packaging and Transportation of Stainless steel slot well screen pipe for liquid filtration:

transportation
