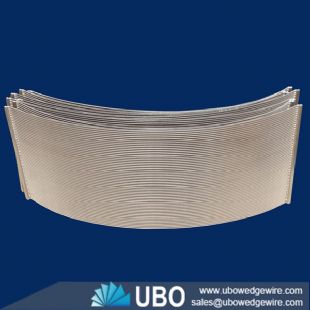

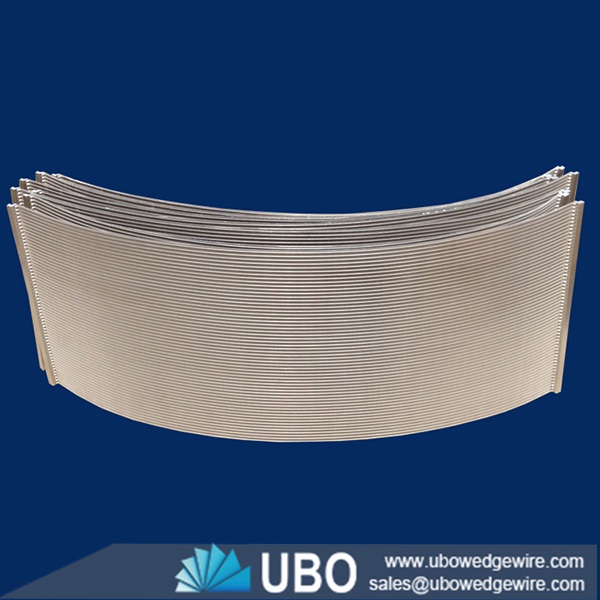

Stainless steel low carbon wedge wire sieve bend screen panel

More Views

Stainless steel low carbon wedge wire sieve bend screen panelStainless steel low carbon wedge wire sieve bend screen panelStainless steel low carbon wedge wire sieve bend screen panel

Stainless steel low carbon wedge wire sieve bend screen panel

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wire mesh
Application:the water-treating equipment;the environment protection; the sea water transforms into the industrial water

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel low carbon wedge wire sieve bend screen panel

Sieve Bend Screens also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens.

A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.

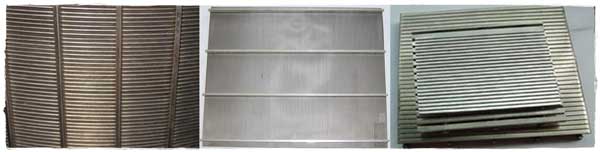

Stainless steel low carbon wedge wire sieve bend screen panel

Usages for Stainless steel low carbon wedge wire sieve bend screen panel:

1) Widely used in vairous kinds of medium filtering

2) As the fitting using in the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;

3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;

4) The organic solution recycling filter

Advantage for Stainless steel low carbon wedge wire sieve bend screen panel:

1) Excellent roundness

2) Very good slot width precision

3) High mechanical load capacity

4) No form closure connection that would allow vibration of the profiled bars

5) Automated welding process for high-precision manufacturing

6) Perfectly adjusted screen basket profiles

7) Available for all screens

8) Surface finishing as required

Characteristic for Stainless steel low carbon wedge wire sieve bend screen panel:

1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

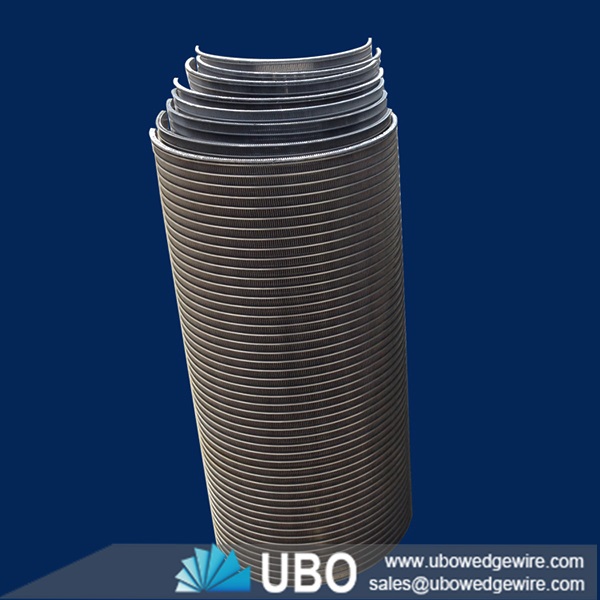

Stainless steel low carbon wedge wire sieve bend screen panel

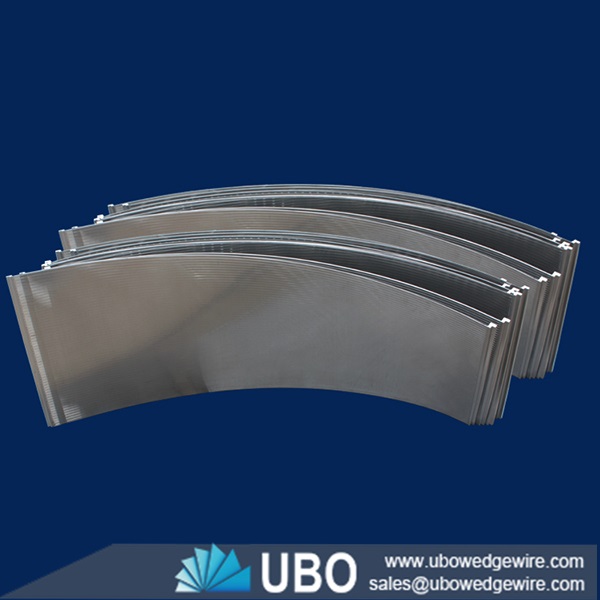

Stainless steel low carbon wedge wire sieve bend screen panel

Specifications of Stainless steel low carbon wedge wire sieve bend screen panel:

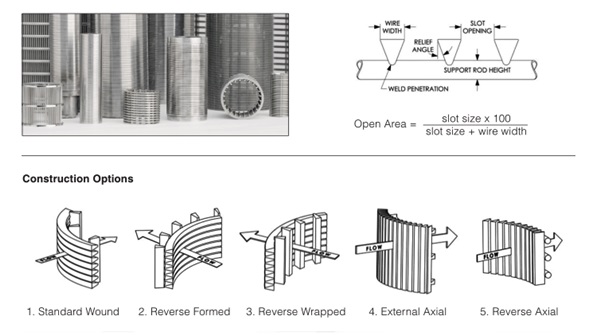

Stainless steel low carbon wedge wire sieve bend screen panel



Outside Diameter
Profile
wire
Rod
wire
Rod
quantity
Slot
size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25
45~3000
25
1
33.7
1.5*2
2*3
14
0.1~0.25
45~3000
32
1~1/4
42.4
1.5*2
2*3
16
0.1~0.25
45~3000
40
1~1/2
48.3
1.5*2
2*3
16
0.1~0.25
45~3000
50
2
60.3
1.5*2
2*3
18
0.1~0.5
45~3000
65
2~2/2
76.1
1.5*2
2*3
20
0.1~0.5
45~3000
80
3
88.9
1.8*2.5
2*3
24
0.1~0.5
45~3000
100
4
114.3
1.8*2.5
2*3
30
0.5~2
1000~6000
125
5
139.7
2.3*2.7
2*3
36
0.5~2
1000~6000
150
6
168.3
2.3*2.7
3*5
44
0.5~2
1000~6000
200
8
219.1
3.3*4.5
3*4.7
56
0.5~2
1000~6000
250
10
273
3.3*4.5
4*6
66
0.5~2
1000~6000
300
12
323.9
3.3*4.7
4*6
72
0.5~2
1000~6000
350
14
355.6
3.7*5
4*6
80
0.5~2
1000~6000
400
16
406.4
1.5*2
2*3
94
0.1~2
1000~6000
450
18
457
2*3
4*5
112
0.1~2
500~400
500
20
508
2*3
4*5
124
0.1~2
500~400
550
22
559
2*3
4*5
140
0.1~2
500~400
600
24
610
2*3
4*5
156
0.1~2
500~400
Siot:0.1mm~2mm    Tolerance:0.05

Packaging and Transportation of Stainless steel low carbon wedge wire sieve bend screen panel:

Package:

Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
