Stainless steel Wedge Wire wedge wrapped wire screen filter nozzle strainer
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | filter nozzle |
Application: | water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless steel Wedge Wire wedge wrapped wire screen filter nozzle strainer

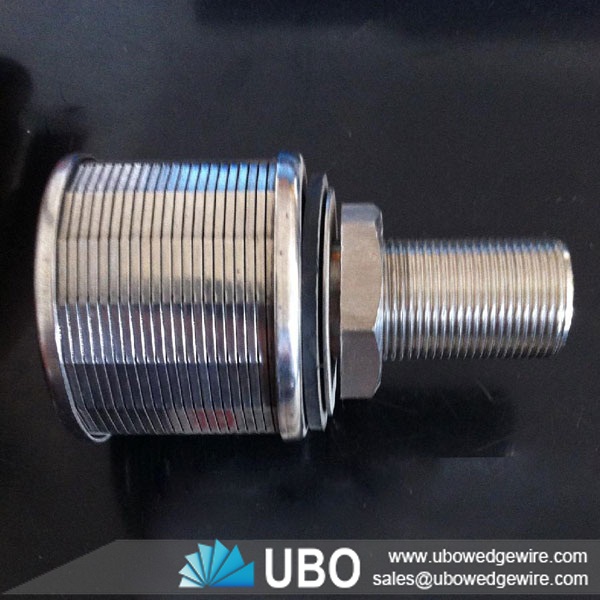

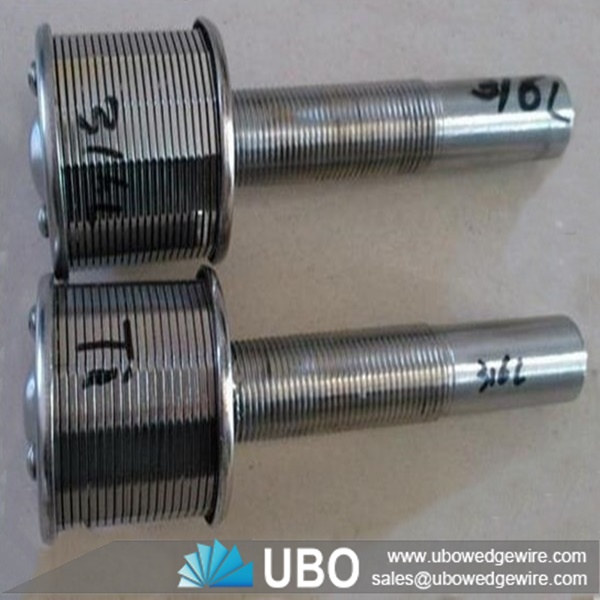

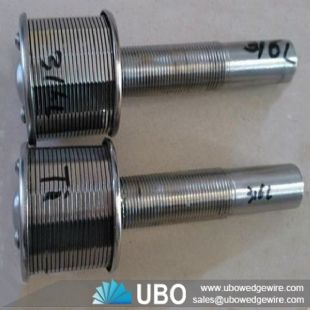

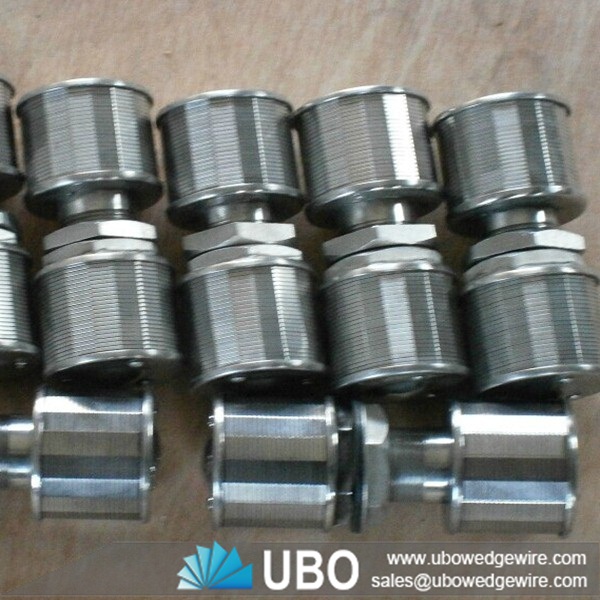

Stainless steel Wedge Wire wedge wrapped wire screen filter nozzle strainer is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate. Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
Advantages of stainless steel Wedge Wire wedge wire wrapped screen filter nozzle strainer
-- Great mechanical strength
-- Highly resistant to abrasivity and vibration.
-- It can hold more pressure and temperature compared to the perforated sheet screen.
-- Longer screen life.
-- Larger useful area than that of the standard perforated sheet screen.
-- The wedge wire screen can be used in any of INOXPA filters.
-- The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.
-- It is possible to clean the wedge wire screen with a reversed flow (back flushing).
Application of stainless steel Wedge Wire wedge wire wrapped screen filter nozzle strainer
The wedge wire water strainer & nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Specifications of Stainless steel Wedge Wire wedge wrapped wire screen filter nozzle strainer:
Slot |
Dimension |
Flow area/mm2 (Slot:0.2mm) |
|||||
D |
H |
L |
M |
L1 |
|||
1 |
0.2-0.5 |
45 |
30 |
180 |
25 |
According to custom’s request |
330 |
2 |
45 |
40 |
190 |
25 |
450 |
||
3 |
53 |
40 |
190 |
30 |
500 |
||
4 |
53 |
50 |
200 |
30 |
630 |
||
5 |
53 |
40 |
235 |
32 |
500 |
||
6 |
57 |
40 |
190 |
32 |
605 |
||
7 |
57 |
50 |
200 |
32 |
750 |
