Quality Wedge Wire Screen Manufacturer in China

Stainless steel Water treatment system filter nozzle

More Views

Stainless steel Water treatment system filter nozzleStainless steel Water treatment system filter nozzleStainless steel Water treatment system filter nozzle

Stainless steel Water treatment system filter nozzle

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wegde wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel Water treatment system filter nozzle

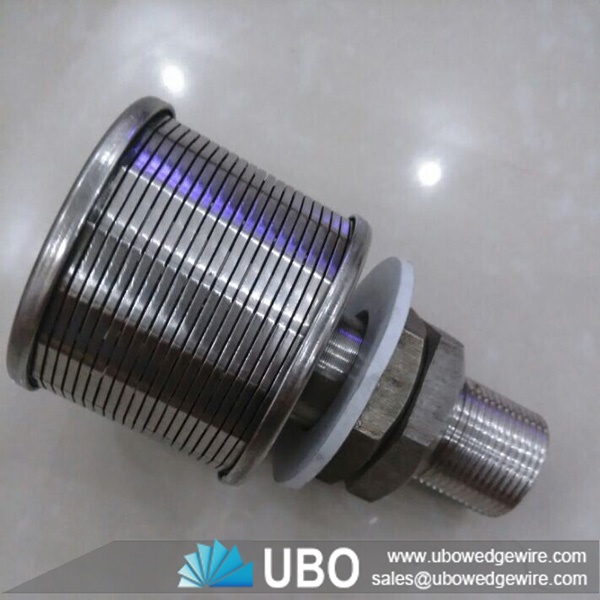

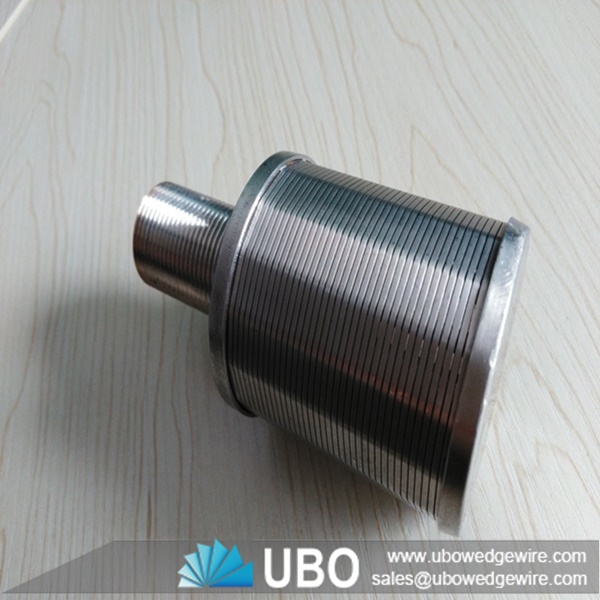

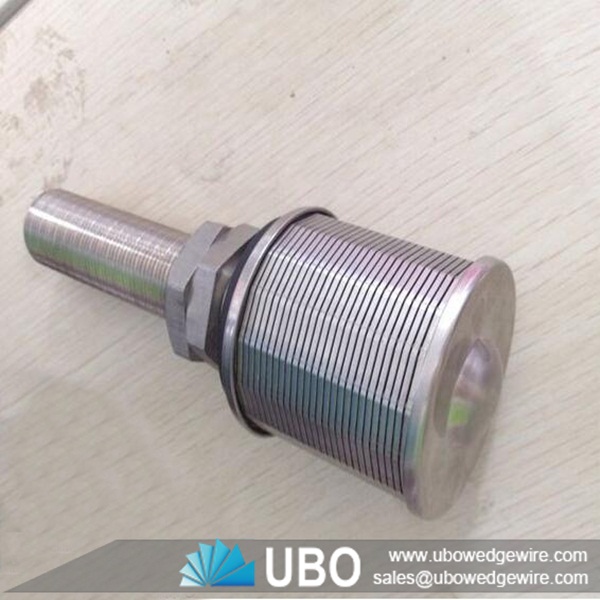

Stainless steel Water treatment system filter nozzle are widely used in various industries, especially suitable for water treatment or liquid filtration.The main part of the nozzle is stainless steel wedge wire screen. It’s a new type filter component.
Stainless steel Water treatment system filter nozzle has a long life. The precise filter ratings are from 20 microns. It is made by welding with profile wire on every connection spots.

Advantages of Stainless steel Water treatment system filter nozzle

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Uses of Stainless steel Water treatment system filter nozzle

The stainless steel wedge wire screen nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

Stainless steel Water treatment system filter nozzle

Specifications of Stainless steel Water treatment system filter nozzle:

Stainless steel Water treatment system filter nozzle

Catalogue Item Slots mm Thread ΦAmm Thread length L1mm Shaft L2 mm L3 mm
Type B
0.05, 0.1, 0.2, 0.3, 0.5,
1.0
11/4"WW 32 25,30,45
80,110,140,200,
250,300,350,…
45,50,55, 60, 70, 80
M30 30×3.5 30
G 3/4" 26.5 20,45,+5+5…
1"WW 25.4 20,45,+5+5…
M24 24 20,45,+5+5…

Packaging and Transportation of Stainless steel Water treatment system filter nozzle:

transportation
