Quality Wedge Wire Screen Manufacturer in China

Stainless steel Continuous slot wedge wire screen for water treatment

More Views

Stainless steel Continuous slot wedge wire screen for water treatmentStainless steel Continuous slot wedge wire screen for water treatmentStainless steel Continuous slot wedge wire screen for water treatment

Stainless steel Continuous slot wedge wire screen for water treatment

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel Continuous slot wedge wire screen for water treatment

    Water well stainless steel sand free screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

Stainless steel Continuous slot wedge wire screen for water treatment

Application for Stainless steel Continuous slot wedge wire screen for water treatment:

sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

Characteristic for Stainless steel Continuous slot wedge wire screen for water treatment:

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

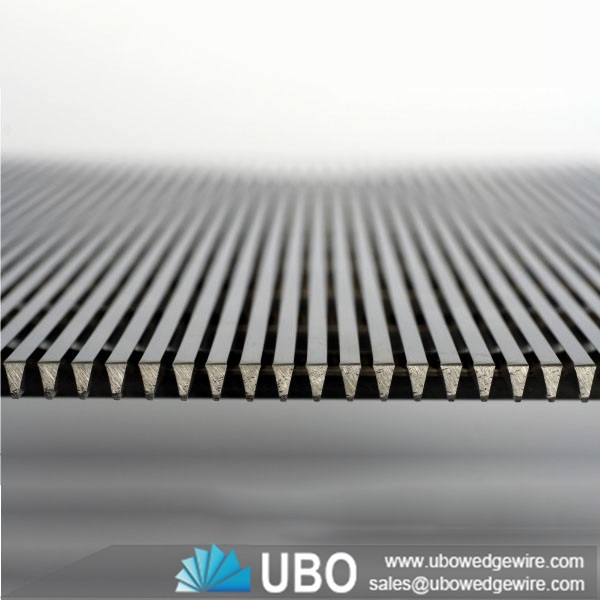

About the V-Wire Profiles:

Water well stainless steel sand free screen consist of V-shape profile wire and the longitudinal support rods, each intersecting point of wires of Johnson Well Screens is fusion welded, so it has sturdy construction and good mechanical property. The V-shape section plane of Johnson Well Screens can avoid blockage, and make sure of the unimpeded water.

Stainless steel Continuous slot wedge wire screen for water treatment

Specifications of Stainless steel Continuous slot wedge wire screen for water treatment:

Stainless steel Continuous slot wedge wire screen for water treatment



Surface Profile

W
H

Material

10S

0.75
1.425

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

11SL

10.75
1.8

22S

1.8
3.7

4S

0.45
1.2

50SL

3.4
7.5



Surface Profile
W
H
Material
Q22
2
2.28

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

Q35
3
5
Q53
4
3
D56
4
5.6
D45
3.8
6.0

Packaging and Transportation of Stainless steel Continuous slot wedge wire screen for water treatment:

Stainless steel Continuous slot wedge wire screen for water treatment
