Stainless Steel Wedge Wire Water Well Screen
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | wedge wire screen |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless Steel Wedge Wire Water Well Screen

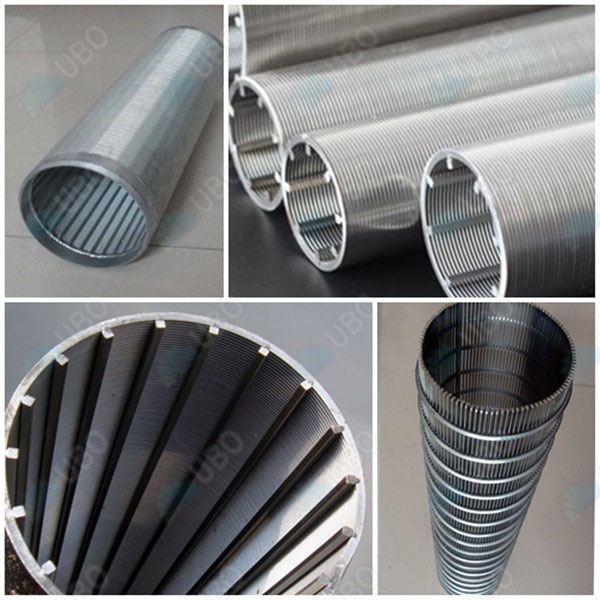

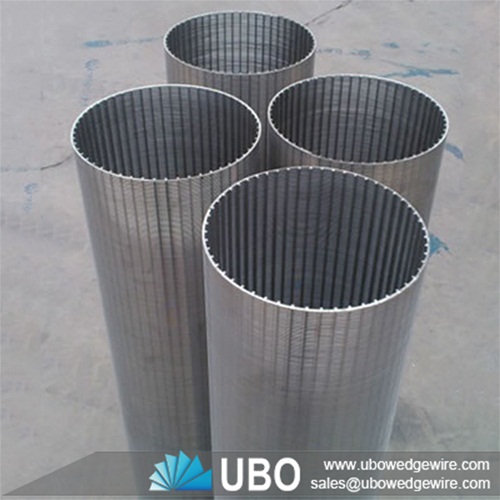

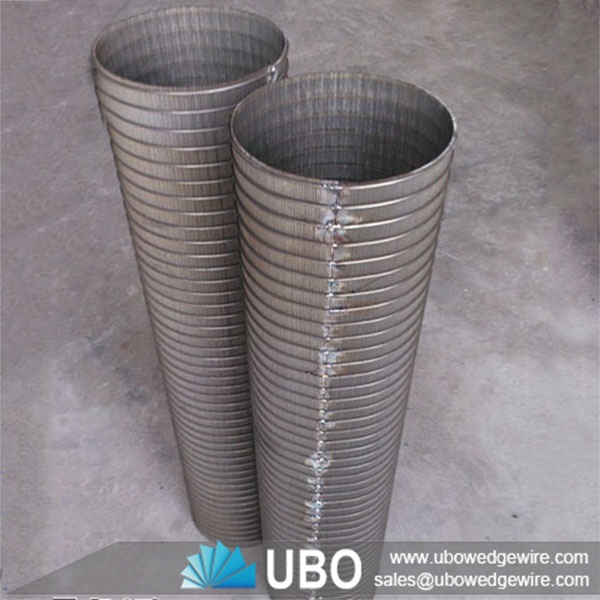

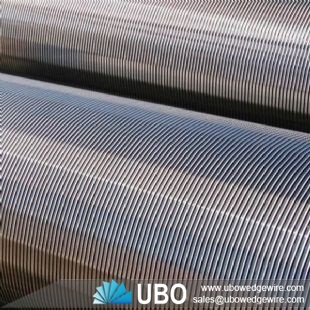

Wedge wire screen pipe is popularly used in making of water well screen. water well screen is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire).
Features for Stainless Steel Wedge Wire Water Well Screen
1) Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2) V-type profile of the structure to avoid clogging and ensure smooth flow.
3) Continuous long-term effective use of the pore.
4) Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5) Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.
Advantages for Stainless Steel Wedge Wire Water Well Screen
1) Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2) Low cost operation.
3) Reduce the abrasion of the pump.
4) Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.
Specifications of Stainless Steel Wedge Wire Water Well Screen:
Basepipe OD (in)
|
Perforations per foot
|
Basepipe Hole Size (in)
|
Open Area of Basepipe Holes (in2/ft)
|
Wrap Wire Size Keystone (in)
|
Rib Wire Size Round (in)
|
Maximum OD (in)
|
1.05
|
54
|
0.312
|
4.14
|
0.09*0.09
|
0.125
|
1.489
|
1.315
|
66
|
0.312
|
5.06
|
0.09*0.09
|
0.125
|
1.726
|
1.66
|
78
|
0.312
|
5.98
|
0.09*0.09
|
0.125
|
2.126
|
1.90
|
42
|
0.375
|
4.63
|
0.09*0.09
|
0.125
|
2.387
|
2.063
|
42
|
0.375
|
4.63
|
0.09*0.09
|
0.125
|
2.55
|
2.375
|
54
|
0.375
|
5.96
|
0.09*0.09
|
0.125
|
2.86
|
2.875
|
66
|
0.375
|
7.28
|
0.09*0.09
|
0.125
|
3.362
|
3.25
|
78
|
0.375
|
8.61
|
0.09*0.09
|
0.125
|
3.737
|
3.50
|
78
|
0.375
|
8.61
|
0.09*0.09
|
0.125
|
3.987
|
4.00
|
90
|
0.375
|
9.94
|
0.09*0.09
|
0.125
|
4.487
|
4.50
|
102
|
0.375
|
11.26
|
0.09*0.09
|
0.125
|
5.001
|
5.00
|
114
|
0.375
|
12.59
|
0.09*0.09
|
0.125
|
5.506
|
