Stainless Steel Wedge Wire Screen for well drilling

More Views

Stainless Steel Wedge Wire Screen for well drillingStainless Steel Wedge Wire Screen for well drillingStainless Steel Wedge Wire Screen for well drilling

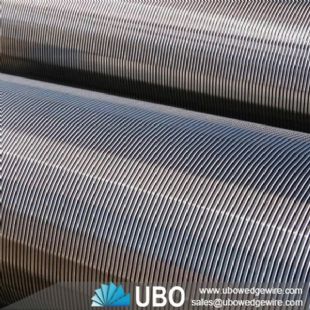

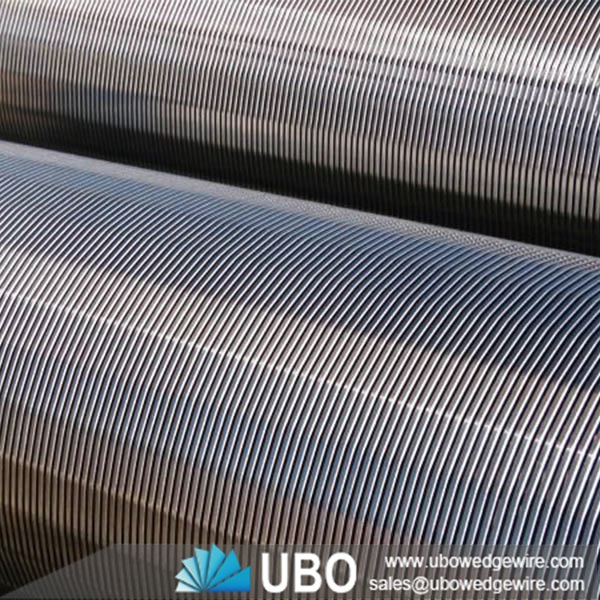

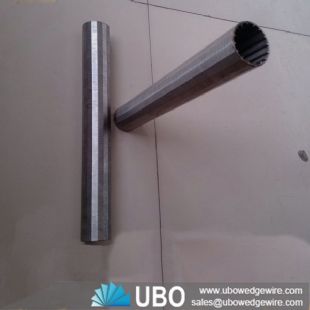

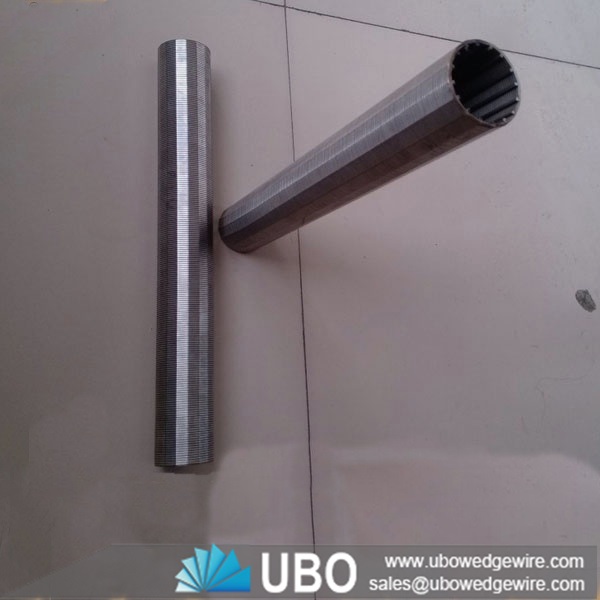

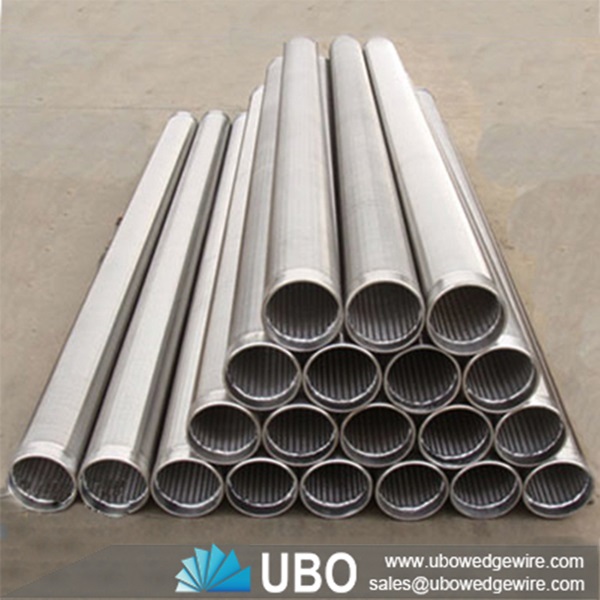

Stainless Steel Wedge Wire Screen for well drilling

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:water, oil, and gas wells, and is the dominant screen type used in the water well industry.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Screen for well drilling

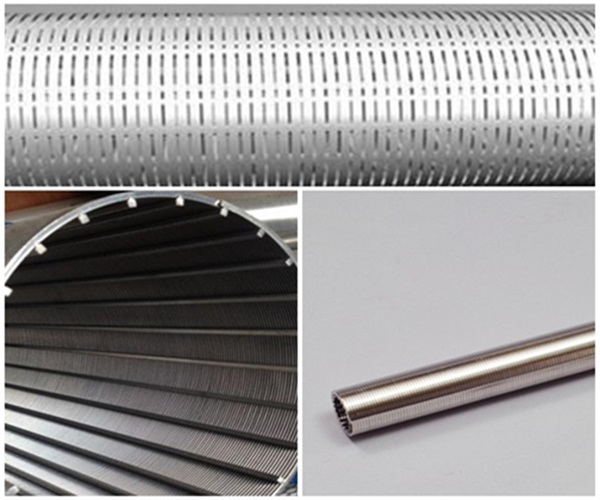

   The continuous slot wire-wrap screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry. this type of screen is constructed by winding cold rolled triangular V-shaped wire around a circular array of longitudinal rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.

Stainless Steel Wedge Wire Screen for well drilling

Application for Stainless Steel Wedge Wire Screen for well drilling:

The continuous-slot well screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.

Characteristic for Stainless Steel Wedge Wire Screen for well drilling:

Non-clogging slot
Continuous-slot well screens have V-shaped openings that narrowest at the outer face and widen inwardly, thus, oversize particles are retained outside the screen and particles passing through the narrow outside opening can enter the screen.
Maximizing flow rates
When considering screens of equal length, diameter and slot size, flow rates through V-shaped well screens can be;
Three times higher than bridge-slot screens
Nine times higher than slotted casing
Reductions in operating costs
By using a Continuous-slot well screen, savings can be achieved in pumping costs. Lower through-slot velocities mean that pressure drops are minimized

Technical parameter for Stainless Steel Wedge Wire Screen for well drilling:

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Stainless Steel Wedge Wire Screen for well drilling

Specifications of Stainless Steel Wedge Wire Screen for well drilling:

Stainless Steel Wedge Wire Screen for well drilling

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

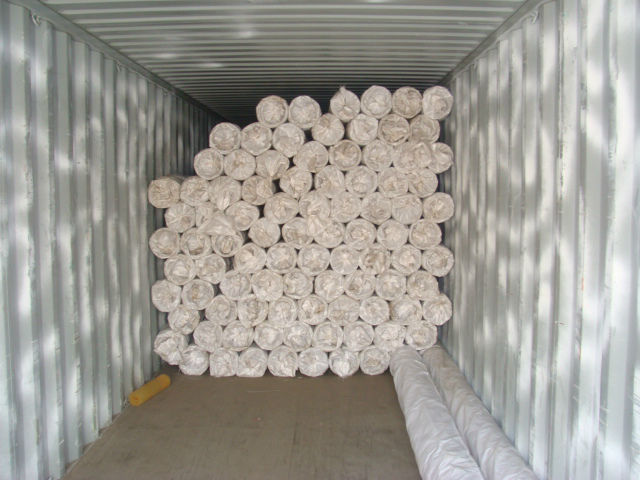

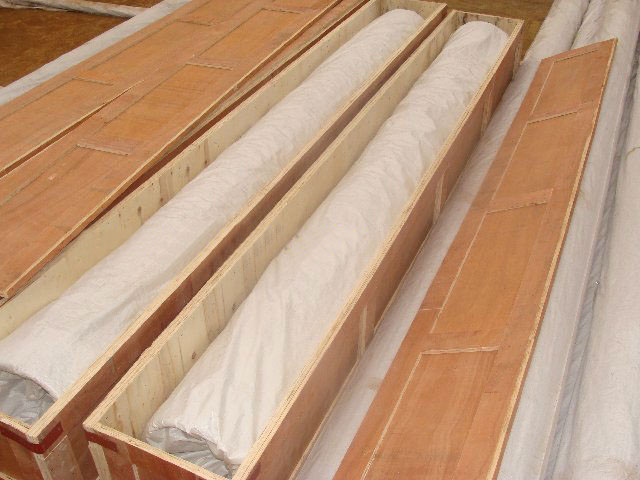

Packaging and Transportation of Stainless Steel Wedge Wire Screen for well drilling:

Stainless Steel Wedge Wire Screen for well drilling



Stainless Steel Wedge Wire Screen for well drilling



Stainless Steel Wedge Wire Screen for well drilling
