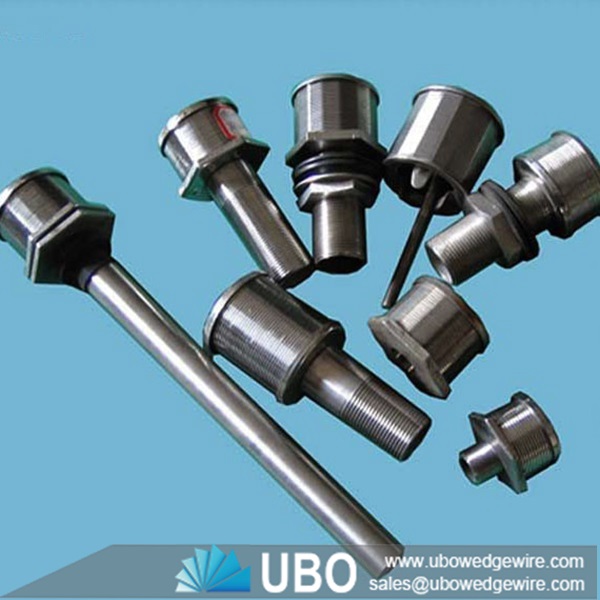

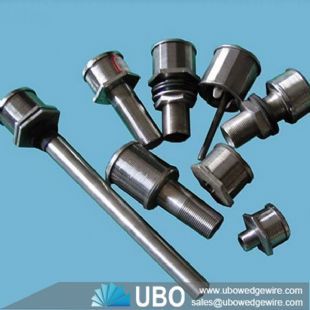

Stainless Steel Wedge Wire Screen Water Well Screen Nozzle
| Category: | Wedge Wire Application |
|---|---|
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | stainless steel wire mesh |
| Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless Steel Wedge Wire Screen Water Well Screen Nozzle

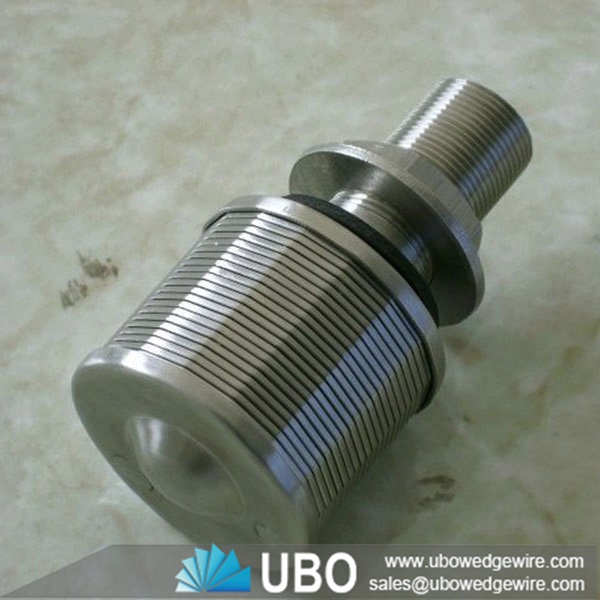

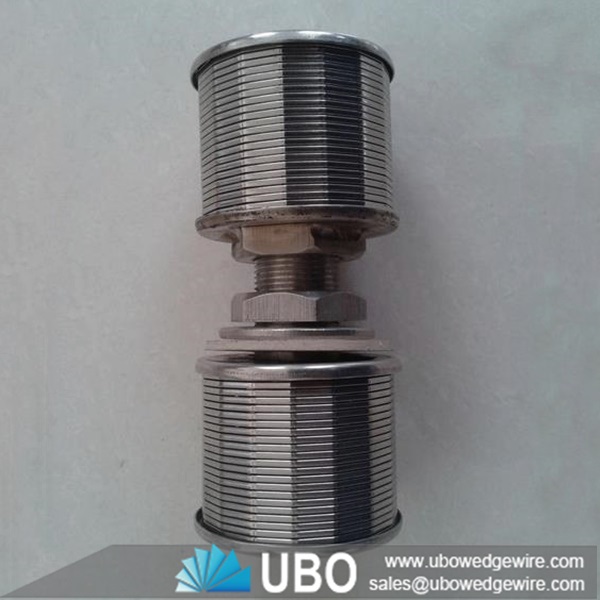

Stainless steel Water treatment system filter nozzle are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component.
Stainless steel Water treatment system filter nozzle has a long life. The precise filter ratings are from 20 microns. It is made by welding with profile wire on every connection spots.
Application for Stainless Steel Wedge Wire Screen Water Well Screen Nozzle:
This filter nozzle can be used at the filter equipment for the filtration of water, petrol resin and other medium. It can be also used in water treatment, water soft, conversion of sea water into fresh water, the filter of food chemistry and other filter industry.
Feature for Stainless Steel Wedge Wire Screen Water Well Screen Nozzle:
•Metal construction.
•Excellent roundness.
•Great flow area.
•High mechanical load capacity.
•High precision slot width.
•Pressure and temperature resistance.
•Anti-corrosion, anti-aging.
•Safe, reliable.
•Environment friendly.
•Easy installation.
•Long service time.
Advantages for Stainless Steel Wedge Wire Screen Water Well Screen Nozzle:
1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.
Specifications of Stainless Steel Wedge Wire Screen Water Well Screen Nozzle:
|
No.
|
Slot
|
Dimension
|
Flow area/mm2
(Slot:0.2mm)
|
||||
|
D
|
H
|
L
|
M
|
L1
|
|||
|
1
|
0.2-0.5
|
45
|
30
|
180
|
25
|
According to custom’s request
|
330
|
|
2
|
45
|
40
|
190
|
25
|
450
|
||
|
3
|
53
|
40
|
190
|
30
|
500
|
||
|
4
|
53
|
50
|
200
|
30
|
630
|
||
|
5
|
53
|
40
|
235
|
32
|
500
|
||
|
6
|
57
|
40
|
190
|
32
|
605
|
||
|
7
|
57
|
50
|
200
|
32
|
750
|
||
Packaging and Transportation of Stainless Steel Wedge Wire Screen Water Well Screen Nozzle:
Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
