Stainless Steel Wedge Wire Screen Water Intake Screen Tube

More Views

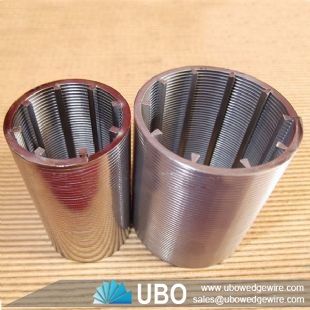

Stainless Steel Wedge Wire Screen Water Intake Screen TubeStainless Steel Wedge Wire Screen Water Intake Screen TubeStainless Steel Wedge Wire Screen Water Intake Screen Tube

Stainless Steel Wedge Wire Screen Water Intake Screen Tube

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Screen Water Intake Screen Tube

The v-wire or wedge wire tapered opening becomes progressively wider toward the interior of the well screen. This produces a non plugging opening ( unlike mesh construction ) that has only two contact points to retain sand particles, thus increasing efficiency and lowering entrance velocity.

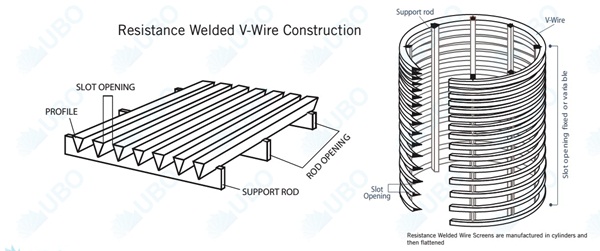

Our stainless steel wedge wire well screens are manufactured using unique computer controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded into support rods. This 'V' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening.

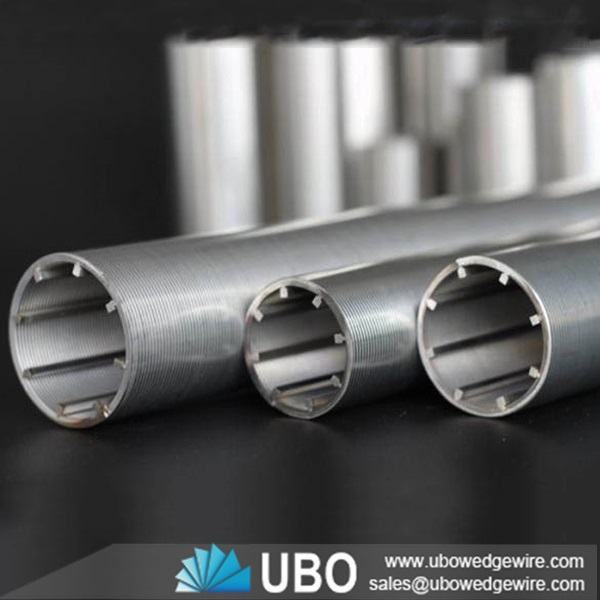

stainless steel wedge wire water intake screen tube

Usages for Stainless Steel Wedge Wire Water Intake Screen Tube:

Wedge Wire Screen Tubes are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.

Features for Stainless Steel Wedge Wire Water Intake Screen Tube:

-- A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
-- Avoids clogging and ensures uninterrupted flow.
-- Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
-- Styles of connection: by welding or by threaded male/female coupling.
-- Standard length: 1m-6m

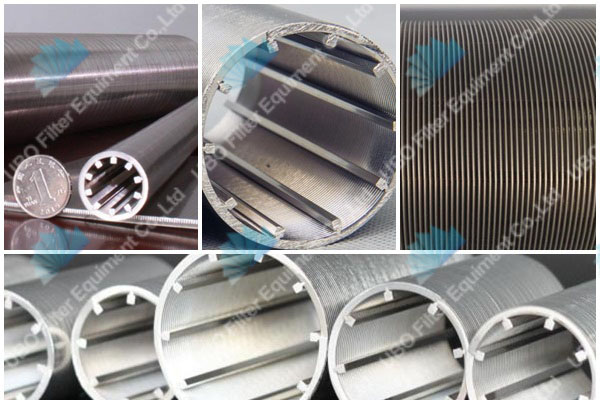

stainless steel wedge wire water intake screen tube

Specifications of Stainless Steel Wedge Wire Screen Water Intake Screen Tube:

stainless steel wedge wire water intake screen tube


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings


Packaging and Transportation of Stainless Steel Wedge Wire Screen Water Intake Screen Tube:

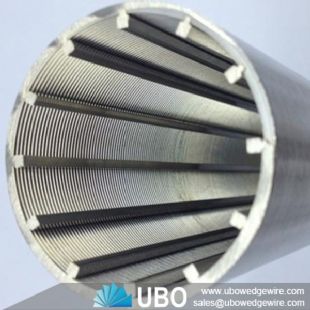

stainless steel wedge wire water intake screen tube

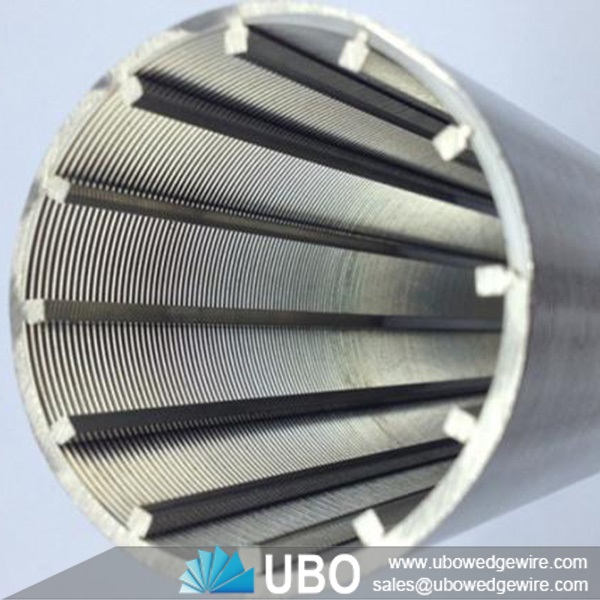

stainless steel wedge wire water intake screen tube
