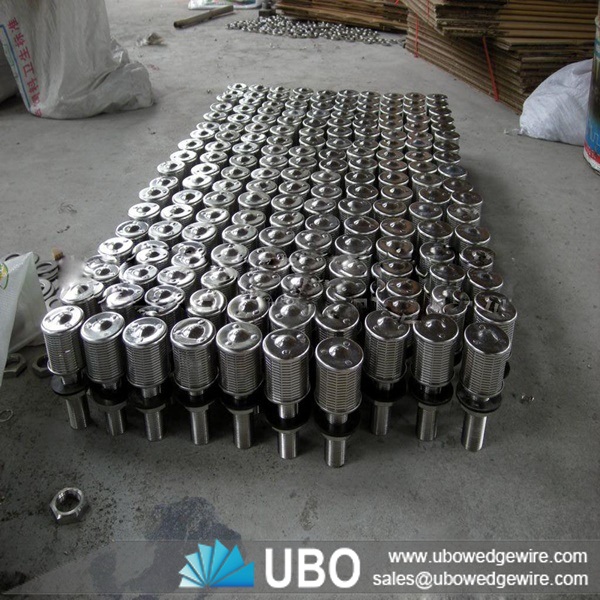

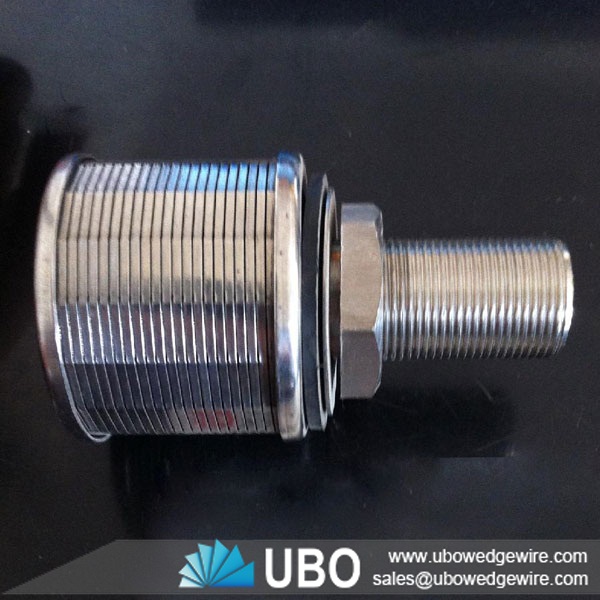

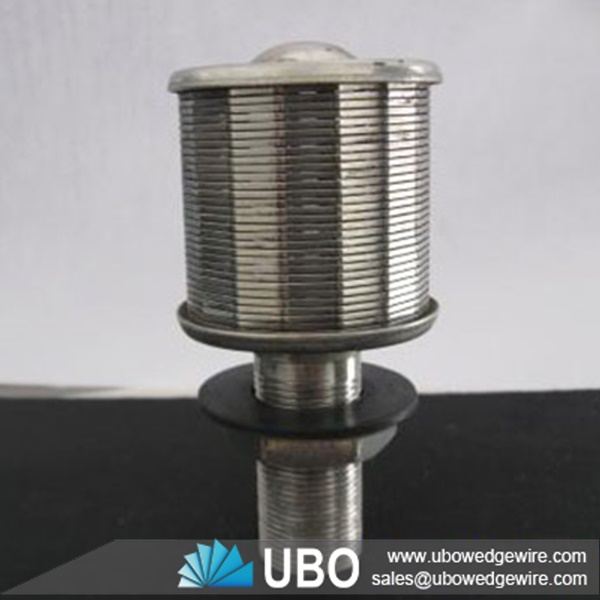

Stainless Steel Wedge Wire Screen Nozzle for Filtration
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless Steel Wedge Wire Screen Nozzle for Filtration
They are manufactured in accordance to customer flow requirements in almost any alloy.
They can be designed for filtration or treatment systems to permit more effective use of the treatment media.
Because of their non-clogging design strainer are effective in a wide range of water treatment and other industrial applications.
Applications of Wedge Wire Screen Nozzle for Filtration
Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters.
Nozzle Strainers can be also used as collectors at the bottom of the vessels by installing a number of strainers uniformly across a tray plate.
The combination of high open area and a non-plugging slot design makes this nozzle/collector application popular.
Advantage of Wedge Wire Screen Nozzle for Filtration
1) Excellent roundness
2) Very good slot width precision
3) High mechanical load capacity
4) No form closure connection that would allow vibration of the profiled bars
5) Automated welding process for high-precision manufacturing
6) Perfectly adjusted screen basket profiles
7) Available for all screens
8) Surface finishing as required
Features of Wedge Wire Screen Nozzle for Filtration
1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2) Low cost operation.
3) Reduce the abrasion of the pump.
4) Extend the life span of well.
Specifications of Stainless Steel Wedge Wire Screen Nozzle for Filtration:
Specification of Wedge Wire Screen Nozzle |
|||||
Item |
D (mm) |
H (mm) |
L (mm) |
Slot size (mm) |
Flow area (mm2) |
WWNS-01 |
45 |
30 |
180 |
0.18-0.5 |
380-493 |
WWNS-02 |
45 |
40 |
190 |
0.18-0.5 |
551-690 |
WWNS-03 |
53 |
40 |
190 |
0.18-0.5 |
453-597 |
WWNS-04 |
53 |
50 |
200 |
0.18-0.5 |
680-710 |
WWNS-05 |
53 |
40 |
235 |
0.18-0.5 |
800-920 |
WWNS-06 |
57 |
40 |
190 |
0.18-0.5 |
560-670 |
WWNS-07 |
57 |
50 |
200 |
0.18-0.5 |
780-905 |
