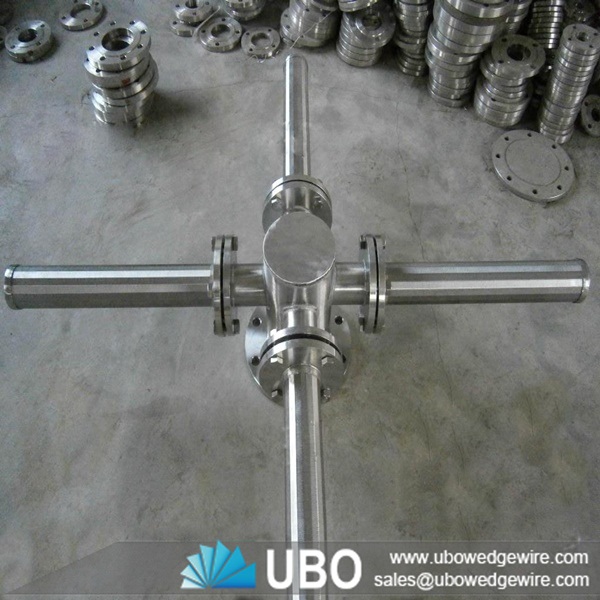

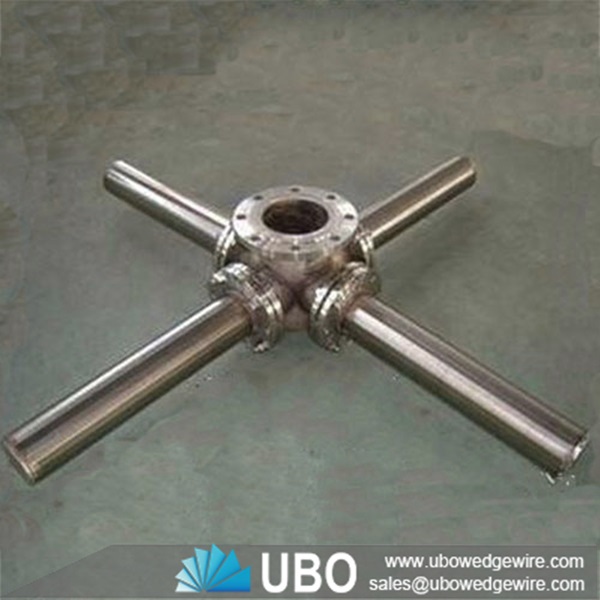

Stainless Steel Wedge Wire Screen Header Hub Laterals

More Views

Stainless Steel Wedge Wire Screen Header Hub LateralsStainless Steel Wedge Wire Screen Header Hub LateralsStainless Steel Wedge Wire Screen Header Hub Laterals

Stainless Steel Wedge Wire Screen Header Hub Laterals

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Screen
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Screen Header Hub Laterals

Hub Laterals can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel. Header laterals design is also available for flat bottom vessel distributor or collector applications All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.

Applications of Stainless Steel Wedge Wire Screen Header Hub Laterals:

wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Advantage for Stainless Steel Wedge Wire Screen Header Hub Laterals:

Profile Screen Laterals is made of V shaped stainless steel wire. It has flow area.water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.

Futures for Stainless Steel Wedge Wire Screen Header Hub Laterals:

(1)Water distributor used for water treatment,such as RO plant,Softener system or water filter;

(2) High chemical resistance and pressure operation;

(3) Made of ABS synthetic resin;

(4) Max diameter of the matched tank: 400mm;

(5) Tank working pressure : 100/150PSI;

(6) Working temperature : 45C

Specifications of Stainless Steel Wedge Wire Screen Header Hub Laterals:



Type

Slots mm

ΦA

Flange DN

L1mm

AM1

0.05, 0.1, 0.2

0.3, 0.5, 1.0

45,57,76,89,108,

133, 159, 219

40,50,65,80,

100,125,150, 200

442,496,547, 600,654,705,

758,812,863, 916,970,1021,

1074,1128,1179, 1232, 1286


Packaging and Transportation of Stainless Steel Wedge Wire Screen Header Hub Laterals:

Stainless Steel Wedge wire screen Header hub Laterals
