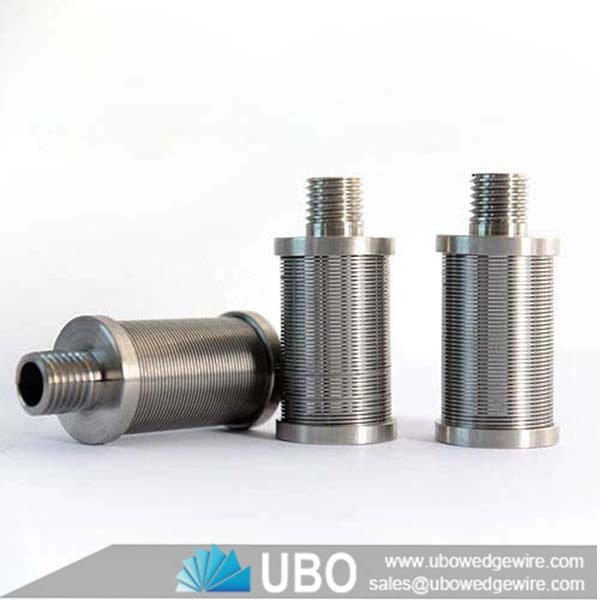

Stainless Steel Water Well Slot Screen nozzle

More Views

Stainless Steel Water Well Slot Screen nozzleStainless Steel Water Well Slot Screen nozzleStainless Steel Water Well Slot Screen nozzle

Stainless Steel Water Well Slot Screen nozzle

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter Nozzle
Application:solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Water Well Slot Screen nozzle

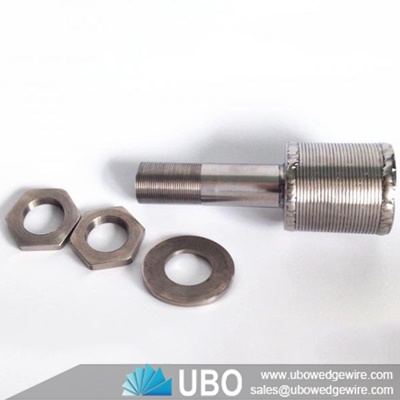

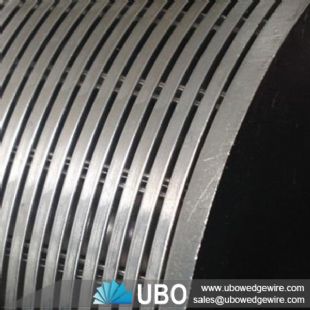

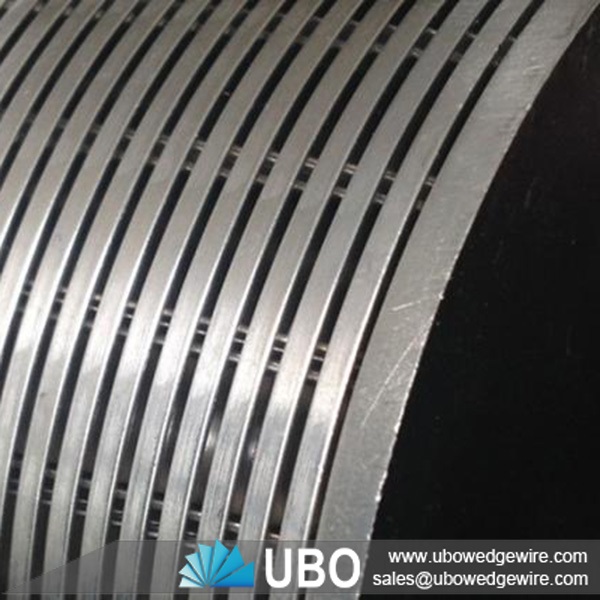

     Stainiess steel strainer nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Uses for Stainless Steel Water Well Slot Screen nozzle :

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

Advantages for Stainless Steel Water Well Slot Screen nozzle :

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Stainless Steel Water Well Slot Screen nozzle

Specifications of Stainless Steel Water Well Slot Screen nozzle:

Stainless Steel Water Well Slot Screen nozzle



No.

Slot

Dimension

Flow area/mm2

(Slot:0.2mm)

D

H

L

M

L1

1

0.2-0.5

45

30

180

25

According to customs request

330

2

45

40

190

25

450

3

53

40

190

30

500

4

53

50

200

30

630

5

53

40

235

32

500

6

57

40

190

32

605

7

57

50

200

32

750



Packaging and Transportation of Stainless Steel Water Well Slot Screen nozzle:

Stainless Steel Water Well Slot Screen nozzle



Stainless Steel Water Well Slot Screen nozzle
