Stainless Steel Water Screen Tube for Filtration System

More Views

Stainless Steel Water Screen Tube for Filtration SystemStainless Steel Water Screen Tube for Filtration SystemStainless Steel Water Screen Tube for Filtration System

Stainless Steel Water Screen Tube for Filtration System

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Water Screen Tube for Filtration System

The 316L Stainless steel Water filter are widely used in various industries, especially suitable for low maintenance applications as sieves and filters. It’s a new type filter component fabricated from the Fine Mesh Slot Opening Stainless Steel Wedge Wire Panels.

316L Stainless steel Water filter can be re-used repeatedly. The precise filter ratings are from 20 to 80 microns. Available in the form of tubes, panels, filter cylinders and bags and special filter elements. It is made by welding with profile wire on every connection spots.

316L Stainless steel Water filter
have excellent filtration property by its special welding structure and the material of Stainless Steel.

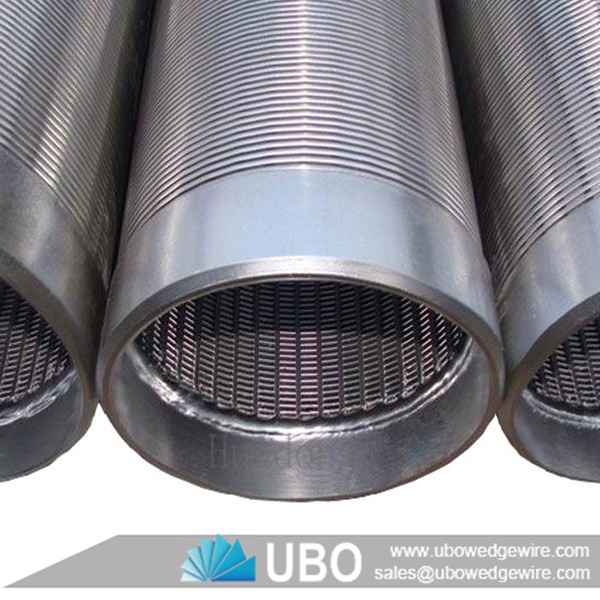

316L Stainless steel water screen tube

Features of Stainless Steel Water Screen Tube for Filtration System

-- Good strength;
-- Good resistance to abrasion and corrosion;
-- High rigidity;
-- Good in filtration and fluidity;
-- Flat panel surface;
-- Long work time.
-- Easy to clean and back wash;
-- Uniform gap;

Application of Stainless Steel Water Screen Tube for Filtration System

316L Stainless steel Water filter are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. 316L Stainless steel Water filter are the most popular mining screen due to its strength.

Filtration system using 316L Stainless steel water screen tube

Specifications of Stainless Steel Water Screen Tube for Filtration System:

316L Stainless steel water screen tube



No.

(mm)TYPE

OD

(mm)

 ID

(mm)

Support wire Number

Filter direction

1

SRD25.4

25.4

18.6

12

FOTI

2

SRD 33

33

24

8

FOTI

3

SRD 37

37

28

8

FOTI

4

SRD 40

40

31

8/10

FOTI/FITO

5

SRD 45

45

36

10/12

FOTI/FITO

6

SRD 48

48

38

12

FOTI/FITO

7

SRD 60

60

51

12

FOTI/FITO

8

SRD 70

70

61

12/18

FOTI/FITO

9

SRD 85

85

76

18

FOTI/FITO

10

SRD 110

110

101

24

FOTI/FITO

11

SRD120

120

111

24

FOTI/FITO

Remarks:

1.    Make tubes with different material according to user requirements.

2.    Slot should be bigger than 0.020mm and less that 2500mm long.

Packaging and Transportation of Stainless Steel Water Screen Tube for Filtration System:

Package: in wood case

Delivery Time: 5-25 days
