AISI Wedge Wrapped V Wire Strainer Screen Pipe Filter for Sewage Treatment

More Views

AISI Wedge Wrapped V Wire Strainer Screen Pipe Filter for Sewage TreatmentAISI Wedge Wrapped V Wire Strainer Screen Pipe Filter for Sewage TreatmentAISI Wedge Wrapped V Wire Strainer Screen Pipe Filter for Sewage Treatment

AISI Wedge Wrapped V Wire Strainer Screen Pipe Filter for Sewage Treatment

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of AISI Wedge Wrapped V Wire Strainer Screen Pipe Filter for Sewage Treatment

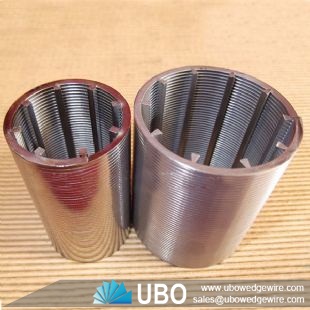

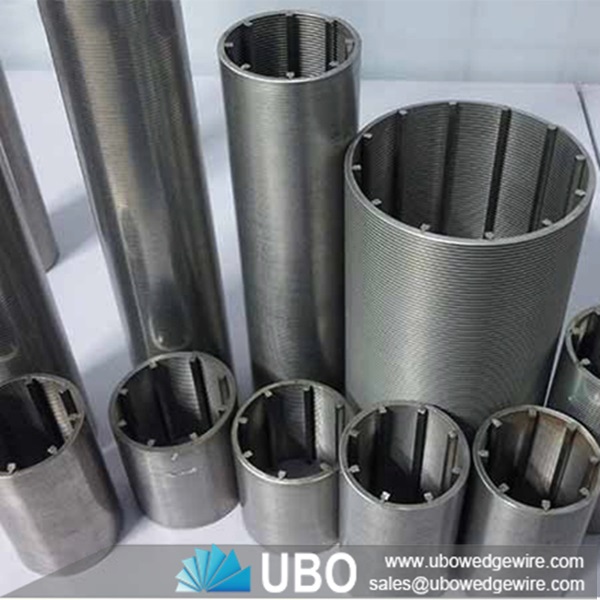

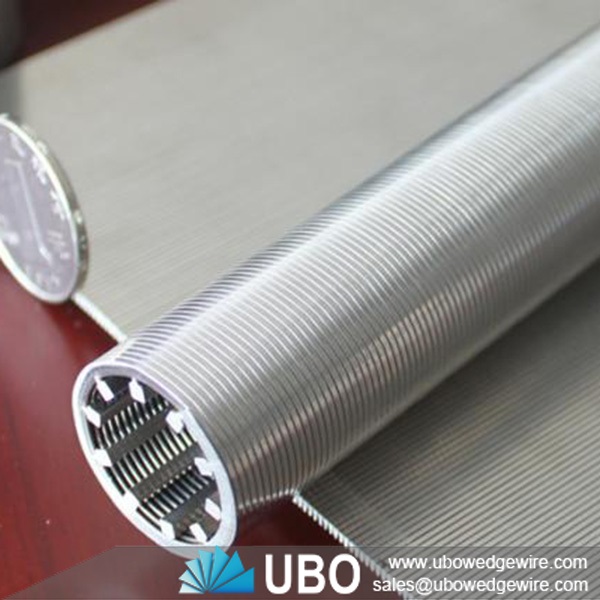

AISI wedge wrapped v wire strainer screen pipe filter for sewage treatment is made by a v or wedge profile wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded to form a precise and uniform mesh. Wedge wire profile screen combines superior weld strengths with accurate slots tolerances resulting in a reliable sand control screen applied in well drilling industries. Our stainless steel well screen offers stable structure and good strength, can withstand the pressure and corrosion during the downhole well completion and operation.

AISI Wedge Wire type wedge wrapped v wire strainer screen pipe filter for sewage treatment

AISI Wedge Wire type wedge wrapped v wire strainer screen pipe filter for sewage treatment

Application of AISI wedge wrapped v wire strainer screen pipe filter for sewage treatment

The continuous-slot well screen strainer is recommended in the following situations:
Formation comprised of small or fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Small diameter wells

Advantages of AISI wedge wrapped v wire strainer screen pipe filter for sewage treatment

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.



AISI Wedge Wire type wedge wrapped v wire strainer screen pipe filter for sewage treatment

AISI Wedge Wire type wedge wrapped v wire strainer screen pipe filter for sewage treatment

AISI Wedge Wire type wedge wrapped v wire strainer screen pipe filter for sewage treatment

Specifications of AISI Wedge Wrapped V Wire Strainer Screen Pipe Filter for Sewage Treatment:

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

19mm-2000mm

ID Range

13mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc

Note

Customized According To Requirement

Packaging and Transportation of AISI Wedge Wrapped V Wire Strainer Screen Pipe Filter for Sewage Treatment:

AISI Wedge Wire type wedge wrapped v wire strainer screen pipe filter for sewage treatment
