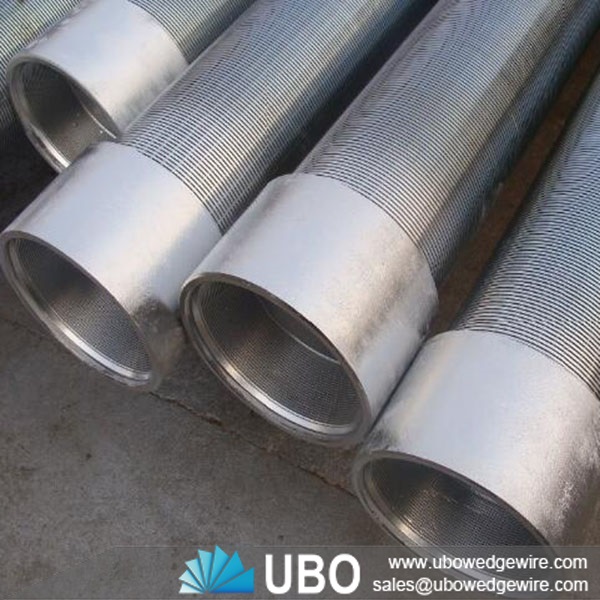

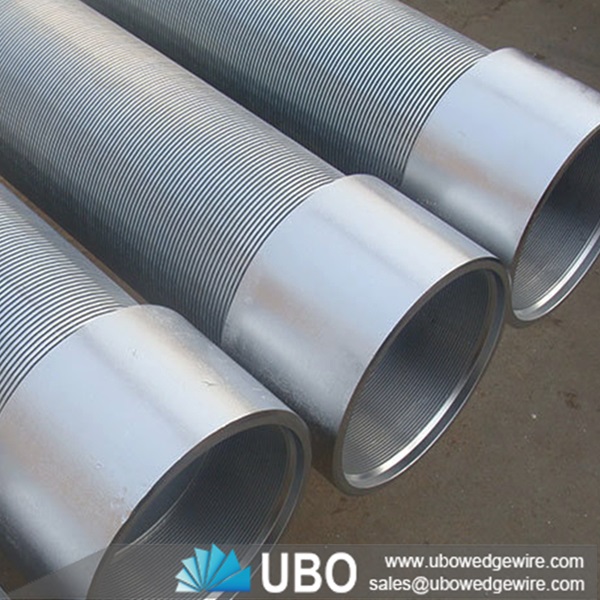

Stainless Steel Water Pipe Perforated Slotted Filter Screen

More Views

Stainless Steel Water Pipe Perforated Slotted Filter ScreenStainless Steel Water Pipe Perforated Slotted Filter ScreenStainless Steel Water Pipe Perforated Slotted Filter Screen

Stainless Steel Water Pipe Perforated Slotted Filter Screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Pipe
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Water Pipe Perforated Slotted Filter Screen

   The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction



Application for Stainless Steel Water Pipe Perforated Slotted Filter Screen:



wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation application



Features for stainless Steel Water Pipe Perforated Slotted Filter Water Screen:



V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.

Continuous Slots: The special design gives continuous slot opening across the periphery and length of screen.

Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.

Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.

Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.



Features for Stainless Steel Water Pipe Perforated Slotted Filter Screen:

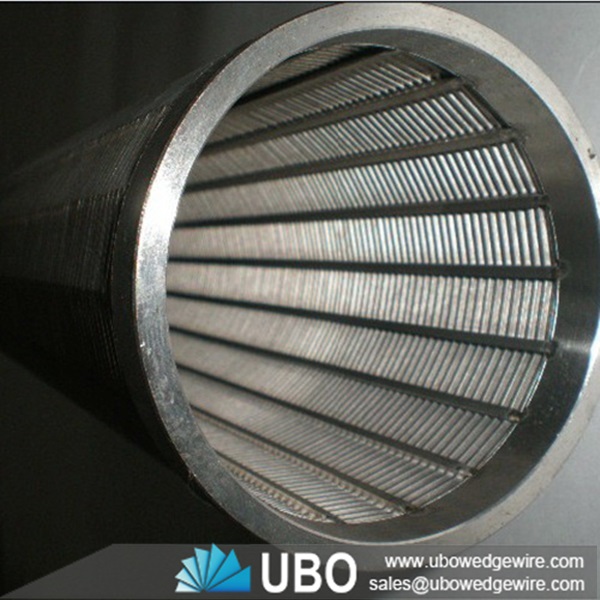

Welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

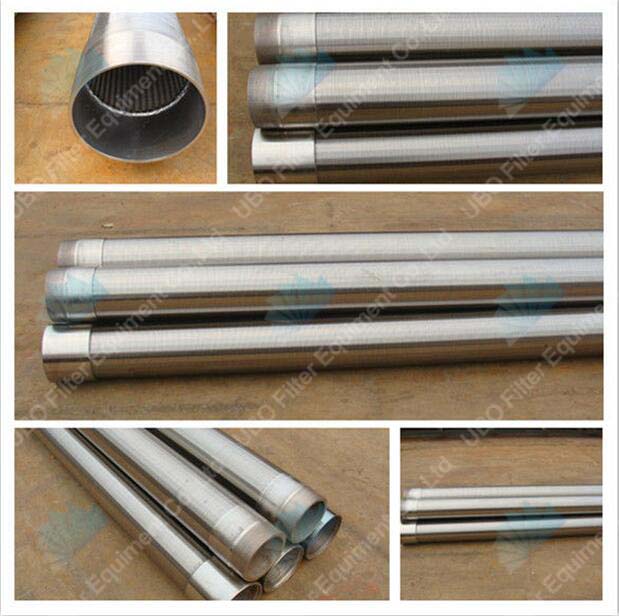

stainless steel water pipe perforated slotted filter water screen

Specifications of Stainless Steel Water Pipe Perforated Slotted Filter Screen:

stainless steel water pipe perforated slotted filter water screen

Size

Inner Diameter

Outer Diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324


Packaging and Transportation of Stainless Steel Water Pipe Perforated Slotted Filter Screen:

Package: in wood case

Delivery Time:5-25 days
