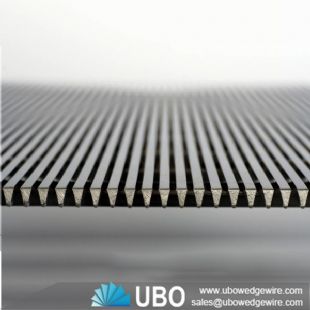

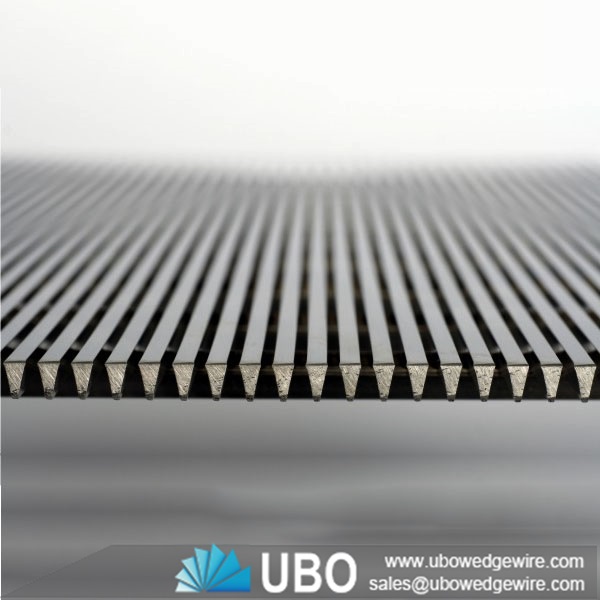

Stainless Steel V Wire Wrap sieve disc

More Views

Stainless Steel V Wire Wrap sieve discStainless Steel V Wire Wrap sieve discStainless Steel V Wire Wrap sieve disc

Stainless Steel V Wire Wrap sieve disc

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel V Wire Wrap sieve disc

    Welded Wedge Wire Screens are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

     Flat welded wedge wire panels offer a perfectly flat and smooth surface with rectangular openings.This kind of wedge wire can replace traditional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen.

Application for Stainless Steel V Wire Wrap sieve disc:

Flat wedge wire screens are used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centers or malls. It can also solve the problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals

Advantage for Stainless Steel V Wire Wrap sieve disc:

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Features for Stainless Steel V Wire Wrap sieve disc:

Self Supporting;
High Abrasion resistance;
Low pressure drop;
High resistance to Vibration.

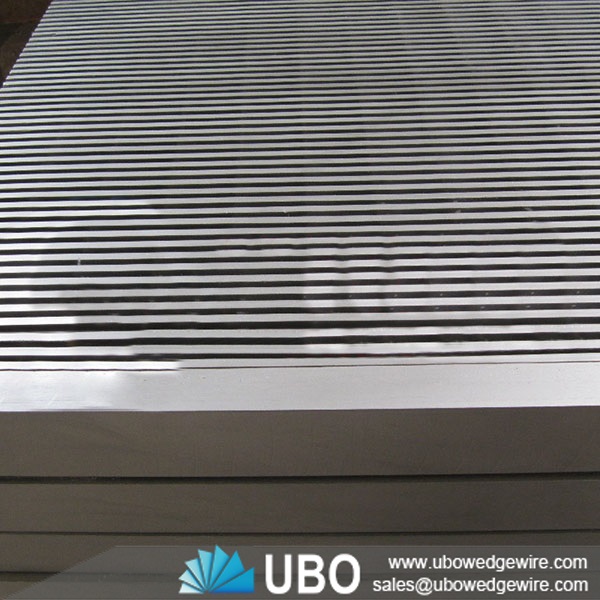

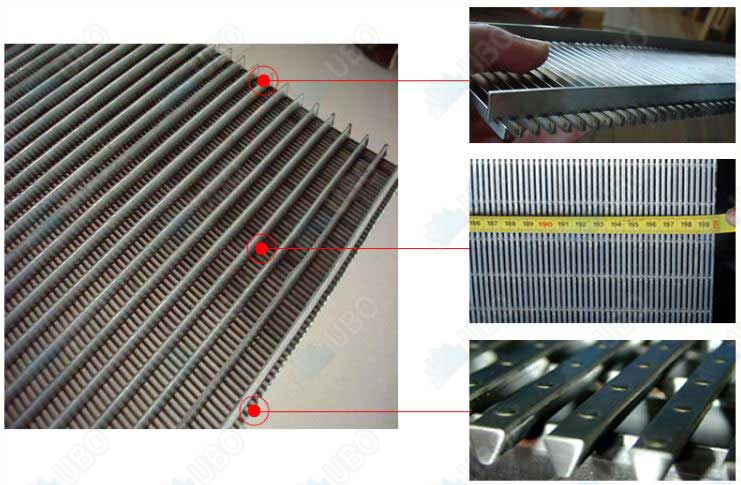

Stainless Steel V Wire Wrap sieve disc

Specifications of Stainless Steel V Wire Wrap sieve disc:

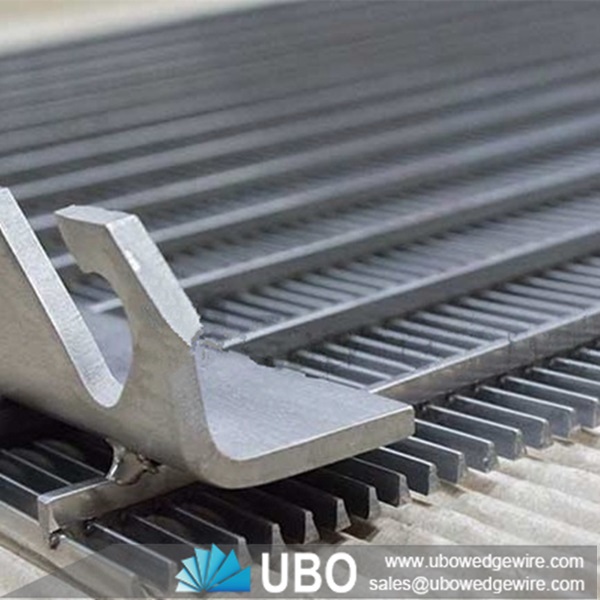

Stainless Steel V Wire Wrap sieve disc

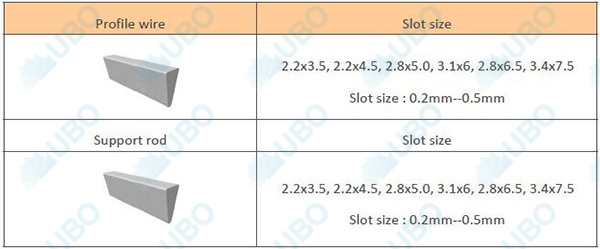

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless Steel V Wire Wrap sieve disc:

Stainless Steel V Wire Wrap sieve disc
