Stainless Steel V Wire Wrap Water Well sieve vessel

More Views

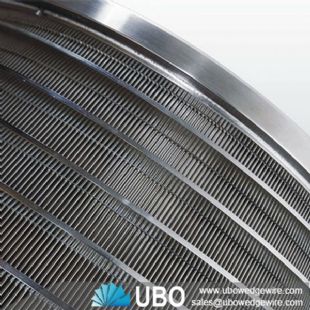

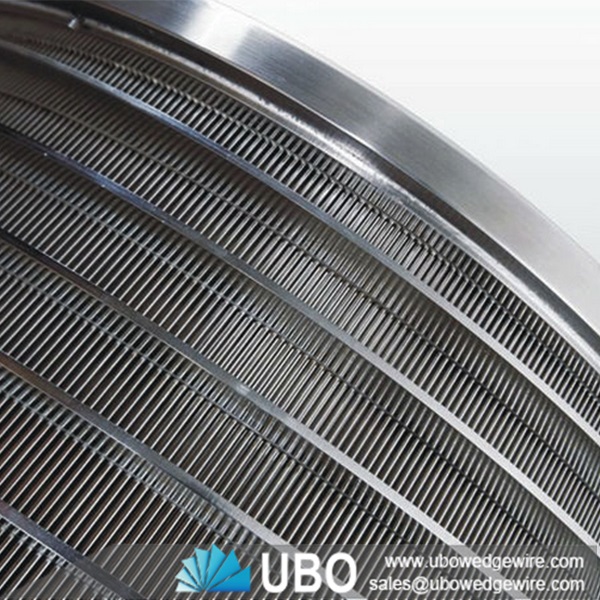

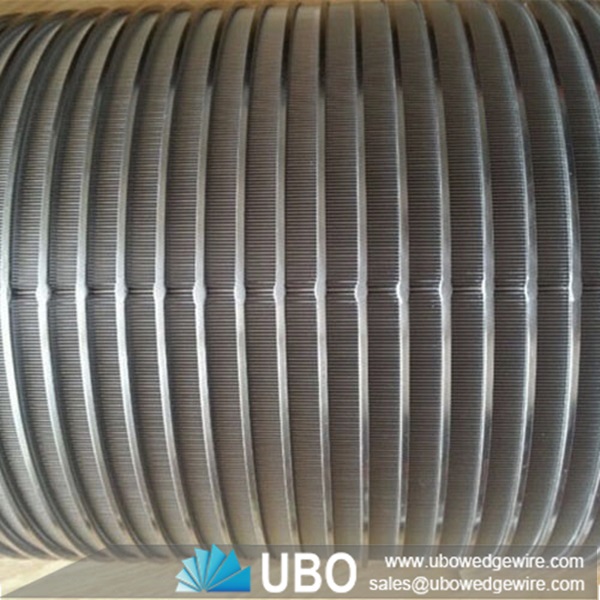

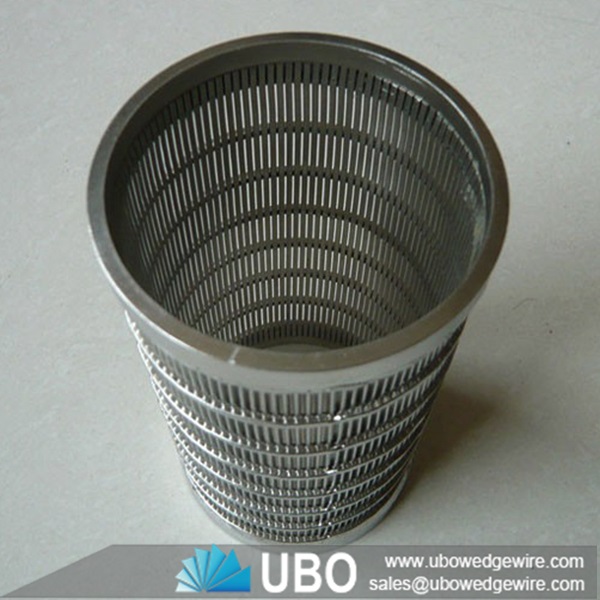

Stainless Steel V Wire Wrap Water Well sieve vesselStainless Steel V Wire Wrap Water Well sieve vesselStainless Steel V Wire Wrap Water Well sieve vessel

Stainless Steel V Wire Wrap Water Well sieve vessel

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel V Wire Wrap Water Well sieve vessel

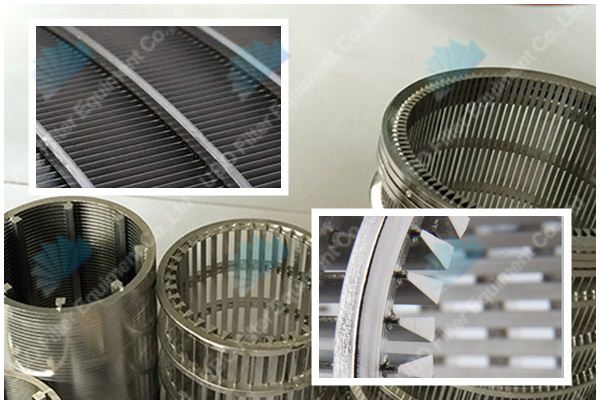

The profile wire stainless steel pipe screen is created by wrapping a profile wire cylindrical around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact.

The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods (fixed or variable) allow us to design a screen according your technical or cosmetic specification.

Stainless Steel V Wire Wrap Water Well sieve vessel

Applications for Stainless Steel V Wire Wrap Water Well sieve vessel:

Wedge wire products are used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.

Characteristics for Stainless Steel V Wire Wrap Water Well sieve vessel:

The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.


Advantages for Stainless Steel V Wire Wrap Water Well sieve vessel:

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Stainless Steel V Wire Wrap Water Well sieve vessel

Specifications of Stainless Steel V Wire Wrap Water Well sieve vessel:

Stainless Steel V Wire Wrap Water Well sieve vessel



size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

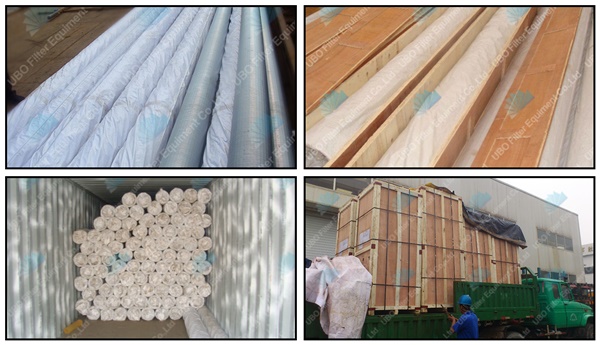

Packaging and Transportation of Stainless Steel V Wire Wrap Water Well sieve vessel:

Stainless Steel V Wire Wrap Water Well sieve vessel



Stainless Steel V Wire Wrap Water Well sieve vessel
