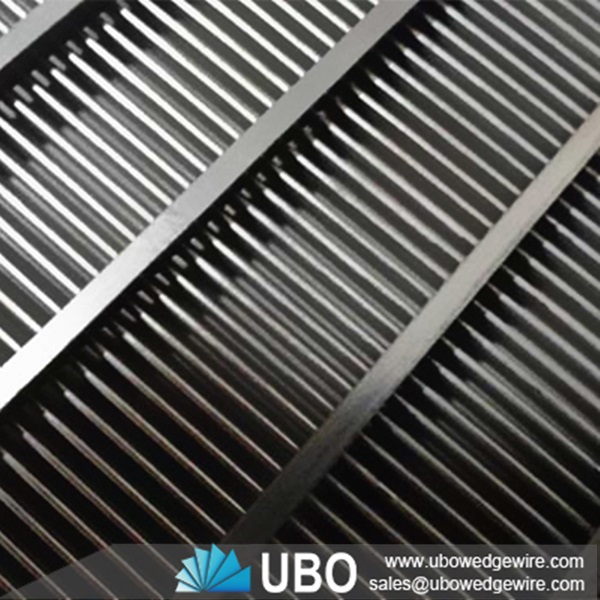

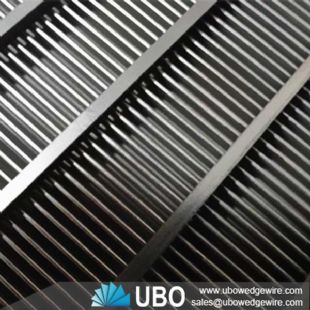

Stainless Steel Reverse Rolled Wedge Wire Water Well Screen

More Views

Stainless Steel Reverse Rolled Wedge Wire Water Well ScreenStainless Steel Reverse Rolled Wedge Wire Water Well ScreenStainless Steel Reverse Rolled Wedge Wire Water Well Screen

Stainless Steel Reverse Rolled Wedge Wire Water Well Screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:lauter tun screens
Application:screening, filtering, dehydration, water treatment, food, petroleum, environmental protection and other industries

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Reverse Rolled Wedge Wire Water Well Screen

     Water Well Screens are manufactured with unique computerized machinery, developed in-house, and in which a continuous length of profile wire of a triangular section is fusion welded onto support rods. This 'V' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening.

Application for Stainless Steel Reverse Rolled Wedge Wire Water Well Screen:

This kind of filter can used for screening, filtering, dehydration, water treatment, food, petroleum, environmental protection and other industries

Features for Stainless Steel Reverse Rolled Wedge Wire Water Well Screen:

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Advantage for Stainless Steel Reverse Rolled Wedge Wire Water Well Screen:

1.Large open area with small slots
2. High filtering accuracy
3. Best-class quality and competitive price
4. Can be customized
5. Timely delivery

Technical Details for Stainless Steel Reverse Rolled Wedge Wire Water Well Screen:

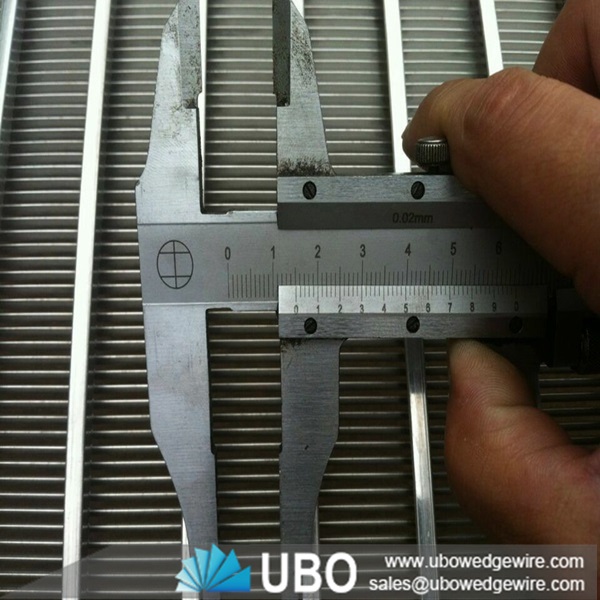

Slot (mm) Standards: 0.25, 0.50, 0.75, 1.00, 1.50mm
Materials of Construction: 304 & 316 grade Stainless Steel, Low Carbon Steel, Galvanized Steel…
Standard lengths : 2,90 m & 3 m or 5,80 m & 6 m
Connection Type: welded, thread. flange

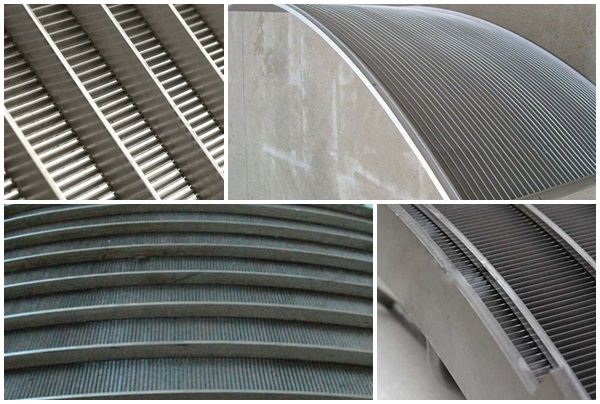

Stainless Steel Reverse Rolled Wedge Wire Water Well Screen

Specifications of Stainless Steel Reverse Rolled Wedge Wire Water Well Screen:

Stainless Steel Reverse Rolled Wedge Wire Water Well Screen

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

Packaging and Transportation of Stainless Steel Reverse Rolled Wedge Wire Water Well Screen:

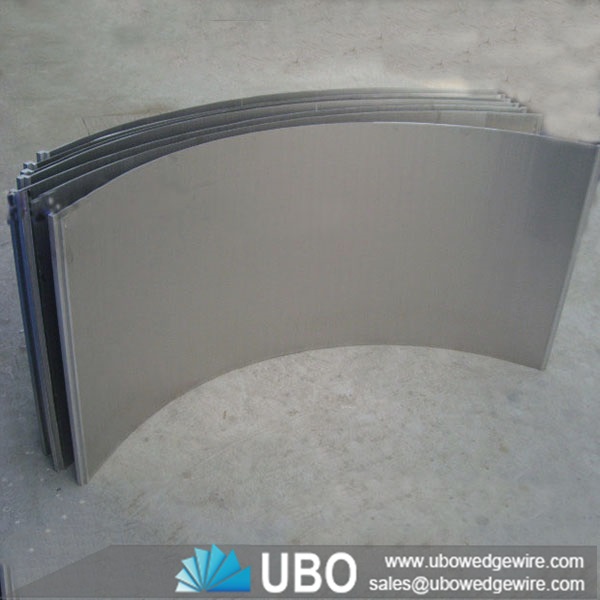

Stainless Steel Reverse Rolled Wedge Wire Water Well Screen
