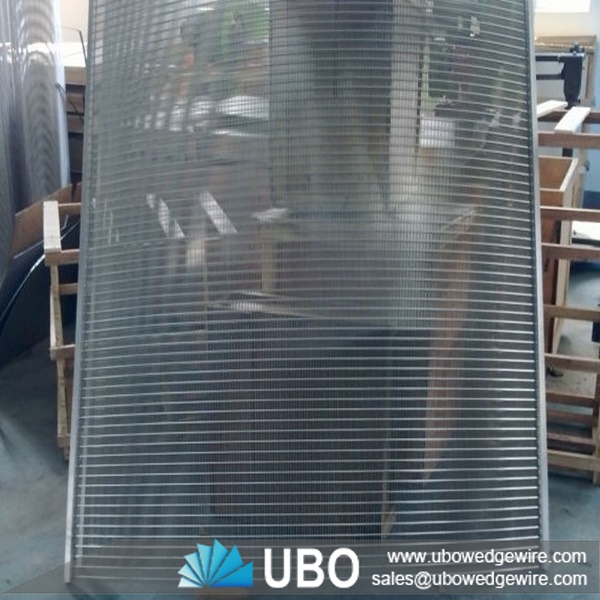

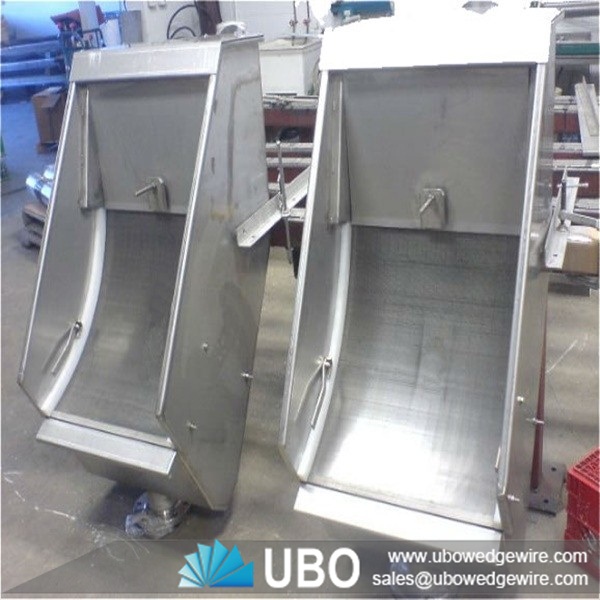

Stainless Steel Parabolic Screen for Food Processing

More Views

Stainless Steel Parabolic Screen for Food ProcessingStainless Steel Parabolic Screen for Food ProcessingStainless Steel Parabolic Screen for Food Processing

Stainless Steel Parabolic Screen for Food Processing

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Parabolic Screen for Food Processing

Stainless steel parabolic screen is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Application of Stainless Steel Parabolic Screen for Food Processing

1) Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.

2) Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.

3) Used for fiber removal in Starch industry.

Features of Stainless Steel Parabolic Screen for Food Processing

-- Reduced costs, since wedge wire screens have a very long life.

-- Greater resistance to stresses of different pressure and temperature.

-- Maximum effective flow area & operating efficiency is maintained.

-- Costly downtime for cleaning plugged screens is minimize.

Advantages of Stainless Steel Parabolic Screen for Food Processing

1) Better filter function. The V-shape section plane of water well screens(Johnson screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2) Prolong life of well. The consecutive slot of water well screens(Johnson screens) have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

3) Long service life. Wire and support rods are all-welded, which makes water well screens(Johnson screens) more robust and longer life.

4) High pressure-resistant. The longitudinal support rods and the continuous slot make the water well screens(Johnson screens) have more excellent pressure-resistant performance.

5) Customized. Specifications and end connections of water well screens(Johnson type screens) can be fabricated according to customers’ requirements.

Stainless steel parabolic screen for food processing

Specifications of Stainless Steel Parabolic Screen for Food Processing:

Stainless steel parabolic screen for food processing

Screen Area
(m2)
Sieve hole size (mm)
Seam Size (mm)
Screen Hole (T/D)
Screen Slot (T/D)
Inlet pulp consistency (%)
Motor Power (Kw)
0.3
Φ1.6~Φ3.5
0.1~0.55
50~80
30~50
1~4
22~55
0.6
Φ1.6~Φ3.5
0.1~0.55
90~160
60~100
1~4
30~75
0.9
Φ1.6~Φ3.5
0.1~0.55
135~250
90~150
1~4
37~90
1.2
Φ1.6~Φ3.5
0.1~0.55
180~320
120~190
1~4
45~110
1.5
Φ1.6~Φ3.5
0.1~0.55
200~380
140~230
1~4
55~132
2
Φ1.6~Φ3.5
0.1~0.55
260~500
220~300
1~4
75~160
3
Φ1.6~Φ3.5
0.1~0.55
400~700
300~450
1~4
90~220
4
Φ1.6~Φ3.5
0.1~0.55
500~1000
350~730
1~4
132~28

Packaging and Transportation of Stainless Steel Parabolic Screen for Food Processing:

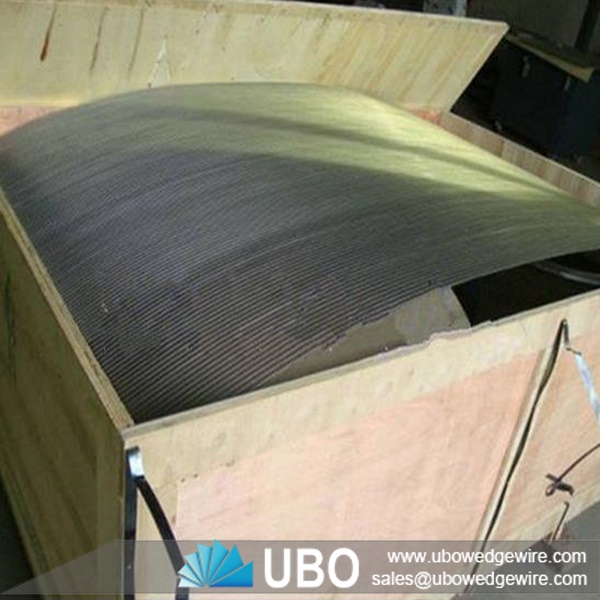

Package: in wood case

Delivery Time: 5-25 days
