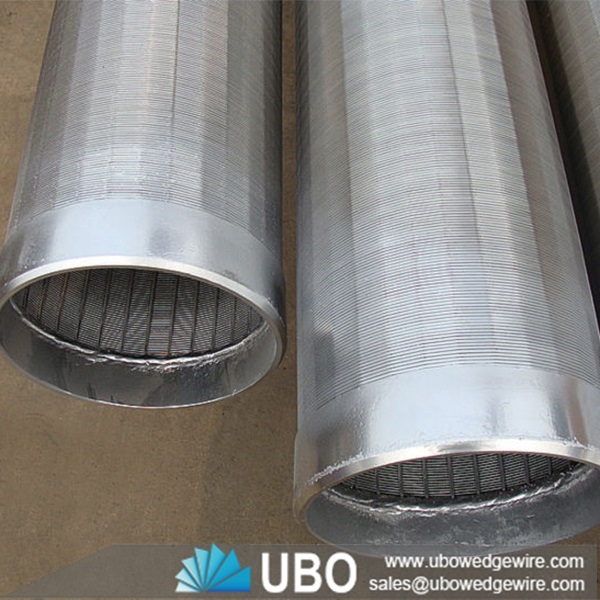

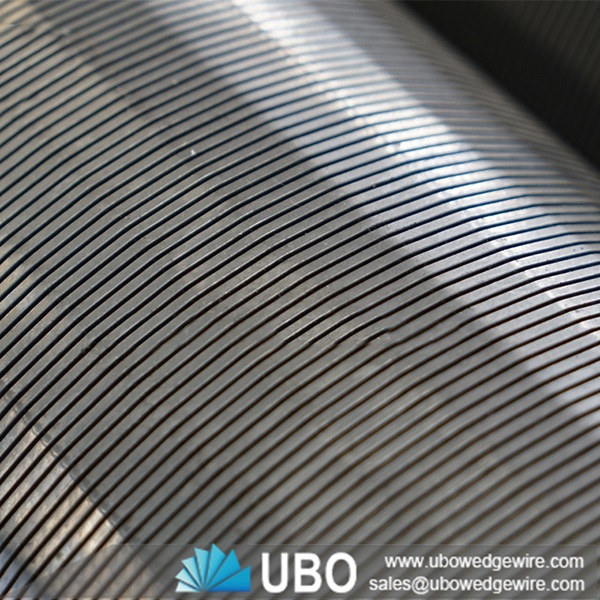

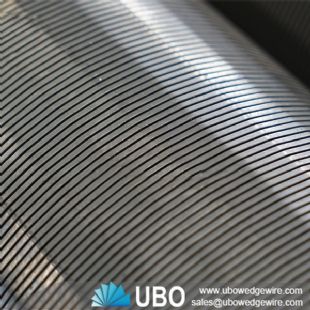

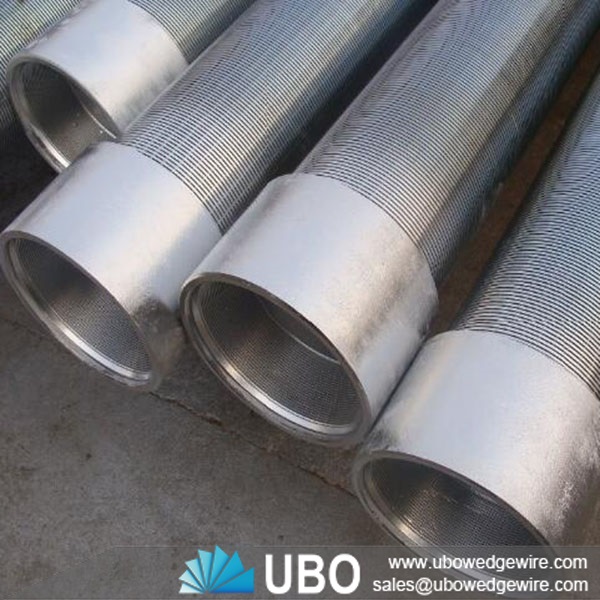

SUS316 Centrifugal Vacuum Filter for water softener and purifier

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Pipe
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SUS316 Centrifugal Vacuum Filter for water softener and purifier

    The Johnson screen pipe is composed of rib strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure, 0.1mm slot gap, and can be select by client in any way.

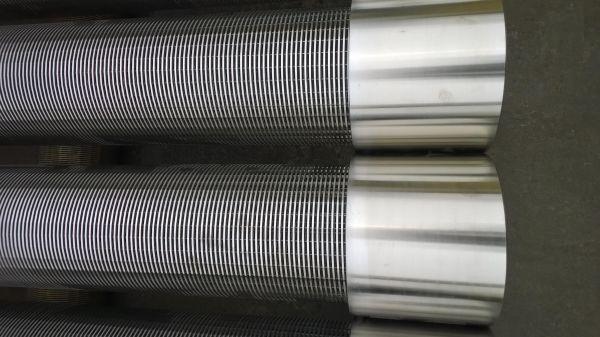

SUS316 Centrifugal Vacuum Filter for water softener and purifier

Application for SUS316 Centrifugal Vacuum Filter for water softener and purifier:

Johnson wedge wire water well screen filter are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

Advantages for SUS316 Centrifugal Vacuum Filter for water softener and purifier:

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Feature for SUS316 Centrifugal Vacuum Filter for water softener and purifier:

V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.
Continuous Slots: The special design gives continuous slot opening across the periphery and length of screen.
Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.
Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.
Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.

SUS316 Centrifugal Vacuum Filter for water softener and purifier


Specifications of SUS316 Centrifugal Vacuum Filter for water softener and purifier:

SUS316 Centrifugal Vacuum Filter for water softener and purifier



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of SUS316 Centrifugal Vacuum Filter for water softener and purifier:

SUS316 Centrifugal Vacuum Filter for water softener and purifier



SUS316 Centrifugal Vacuum Filter for water softener and purifier



SUS316 Centrifugal Vacuum Filter for water softener and purifier
