SUS304 continuous slot cylinders screen for water cleaning

More Views

SUS304 continuous slot cylinders screen for water cleaningSUS304 continuous slot cylinders screen for water cleaningSUS304 continuous slot cylinders screen for water cleaning

SUS304 continuous slot cylinders screen for water cleaning

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining, painting as well as the industries of cigarette, sugar

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

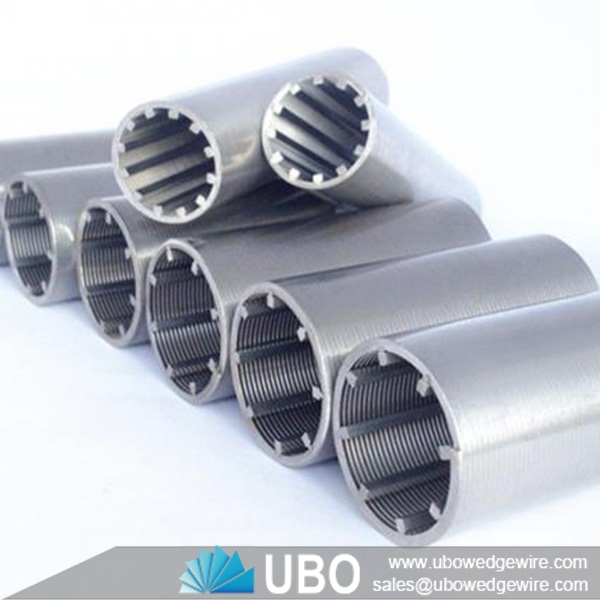

Details of SUS304 continuous slot cylinders screen for water cleaning

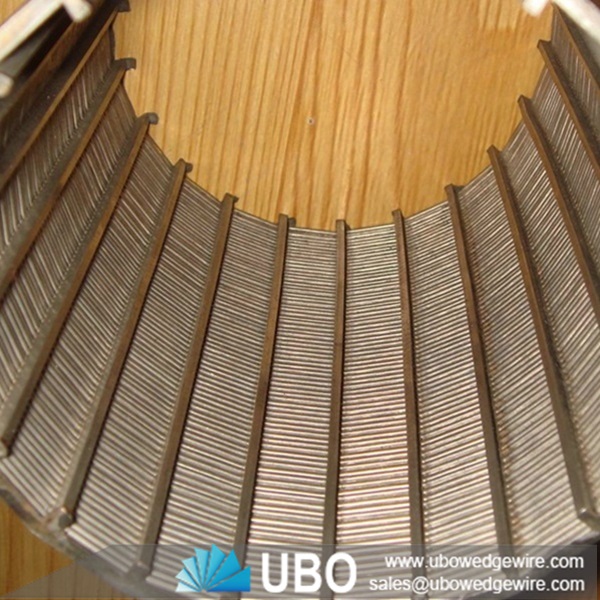

      The screen consists of an outer jacket that is fabricated on special wrapping machines that resemble a lathe. The shaped wire is simultaneously wrapped and welded to longitudinal rods to form a single helical slot with any desired width. The jacket is subsequently placed over and welded at each end to a supporting pipe base (containing drilled holes) to provide structural support.

SUS304 continuous slot cylinders screen for water cleaning

Application for SUS304 continuous slot cylinders screen for water cleaning:

widely used in mineral processing, coal processing, food processing, water treatment, petrochemical industry, architecture industry, as well as many other applications involving liquid & solids separation.

Feature for SUS304 continuous slot cylinders screen for water cleaning:

1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

Advantages for SUS304 continuous slot cylinders screen for water cleaning:

Maximizing Flow Rates
When considering screens of equal length, diameter and slot size, flow rates through V-shaped well screens can be;
Three times higher than bridge-slot screens
Nine times higher than slotted casing
Non-clogging Slot
Continuous-slot well screens have V-shaped openings that narrowest at the outer face and widen inwardly, thus, oversized particles are retained outside the screen and particles passing through the narrow outside opening can enter the screen.
Educations in operating costs
By using a Continuous-slot well screen, savings can be achieved in pumping costs. Lower through-slot velocities mean that pressure drops are minimized, therefore;
Drawdowns are reduced.
Less energy is needed for pumping.
Flow rates are increased.
Less sand in the water reduces wear on the pumps.

SUS304 continuous slot cylinders screen for water cleaning

Specifications of SUS304 continuous slot cylinders screen for water cleaning:

SUS304 continuous slot cylinders screen for water cleaning



size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

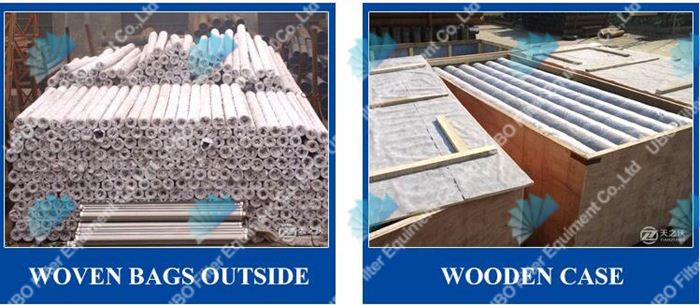

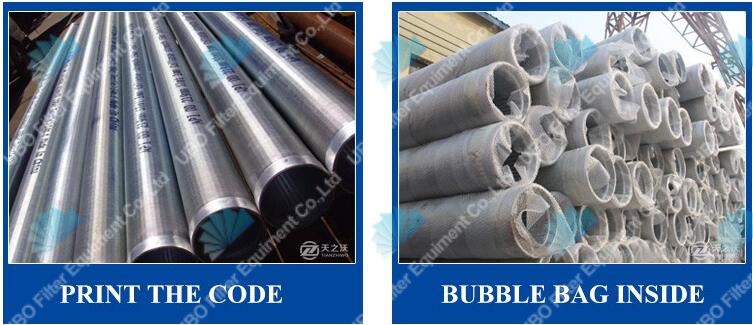

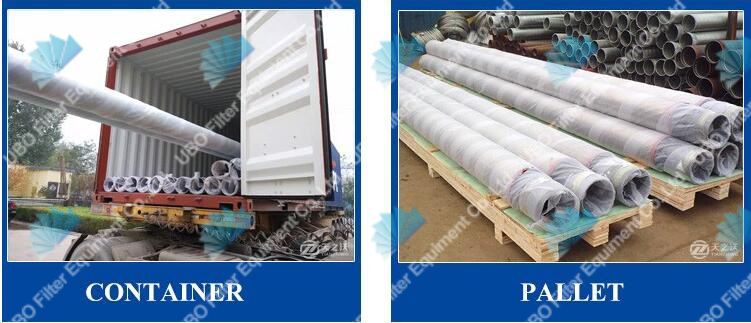

Packaging and Transportation of SUS304 continuous slot cylinders screen for water cleaning:

Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly
marked with:
Name & identification mark
Batch number
Date of manufacture
Material
Collapse strength Tensile strength



SUS304 continuous slot cylinders screen for water cleaning

SUS304 continuous slot cylinders screen for water cleaning

SUS304 continuous slot cylinders screen for water cleaning
