Water treatment SUS304 Sand Filter Nozzles and Wedge Wire Nozzle

More Views

Water treatment SUS304 Sand Filter Nozzles and Wedge Wire NozzleWater treatment SUS304 Sand Filter Nozzles and Wedge Wire NozzleWater treatment SUS304 Sand Filter Nozzles and Wedge Wire Nozzle

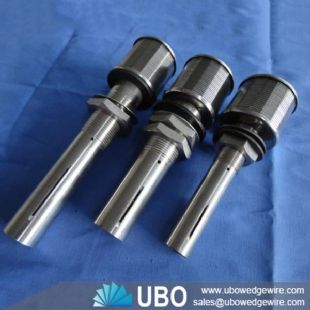

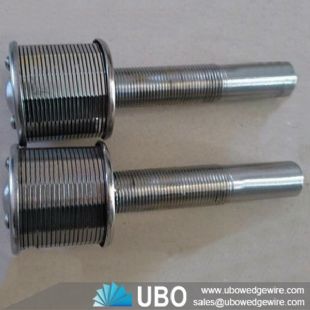

Water treatment SUS304 Sand Filter Nozzles and Wedge Wire Nozzle

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Filter Nozzle
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Water treatment SUS304 Sand Filter Nozzles and Wedge Wire Nozzle

   Wedge Wire screen nozzle manufactured by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. Screen sections are usually twenty feet long. Commonly referred to as continuous slot or wire wrap screen, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained.

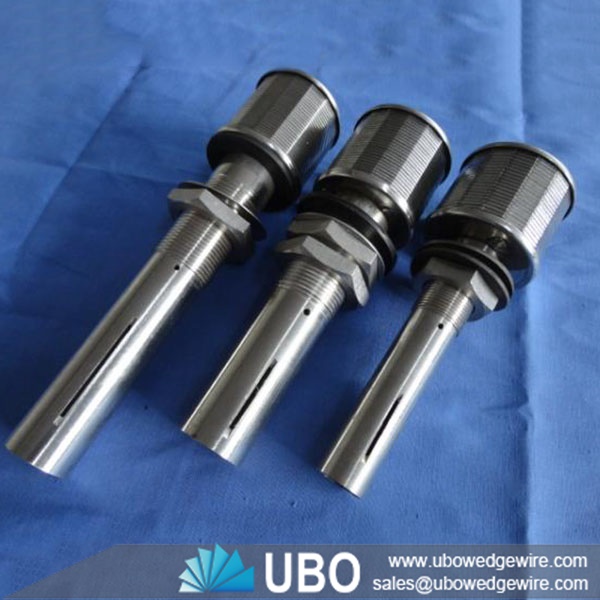

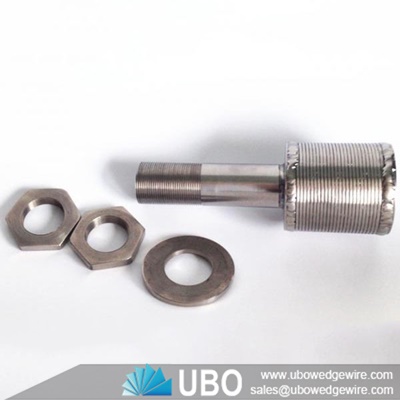

  Wedge Wire screen nozzle

Application for Water treatment SUS304 Sand Filter Nozzles and Wedge Wire Nozzle :

Above mentioned designs are used widely in down-flow reactors for liquid/solid or gas/solid separation.
The liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles.

Advantages for Water treatment SUS304 Sand Filter Nozzles and Wedge Wire Nozzle :

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

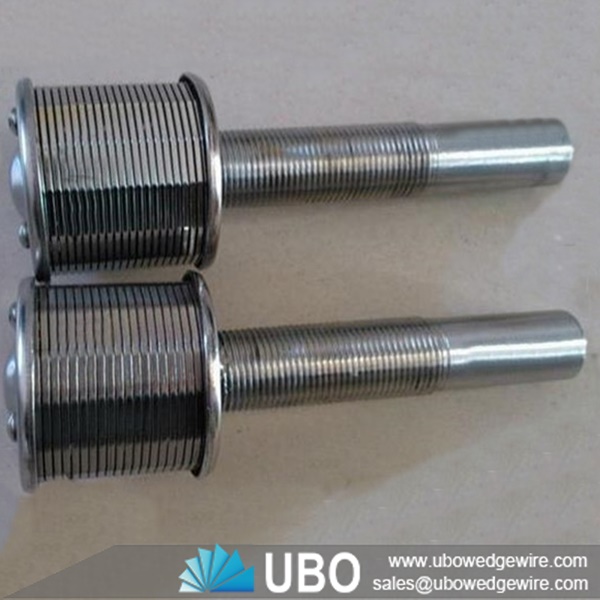

  Wedge Wire screen nozzle

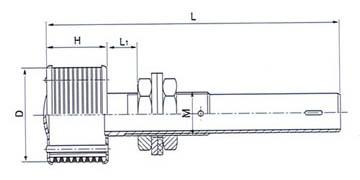

Specifications of Water treatment SUS304 Sand Filter Nozzles and Wedge Wire Nozzle:

Water treatment SUS304 Sand Filter Nozzles and Wedge Wire Nozzle



Type
Gap
Main dimensions
Circulation area
0.2mm Gap
D
H
L
M
L1
1
0.2~0.5
45
30
180
25
According to customs request
330
2
45
40
190
25
450
3
53
40
190
30
500
4
53
50
200
30
630
5
53
40
235
32
500
6
57
40
190
32
605
7
57
50
200
32
750

Packaging and Transportation of Water treatment SUS304 Sand Filter Nozzles and Wedge Wire Nozzle:

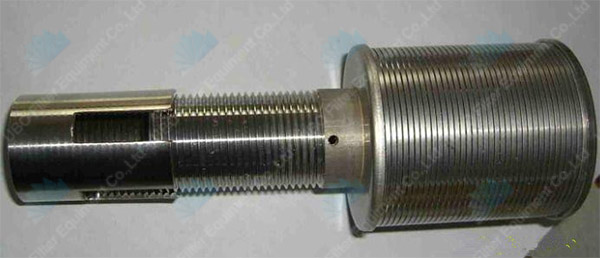

  Wedge Wire screen nozzle
