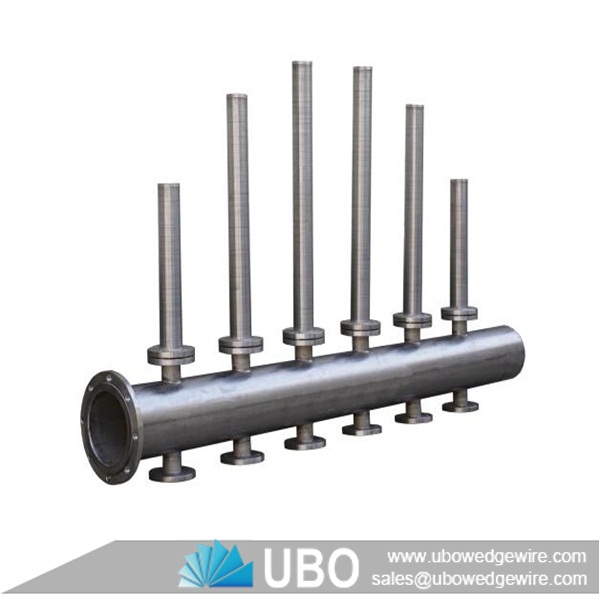

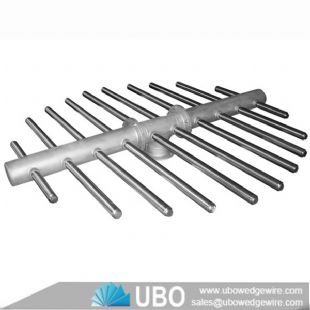

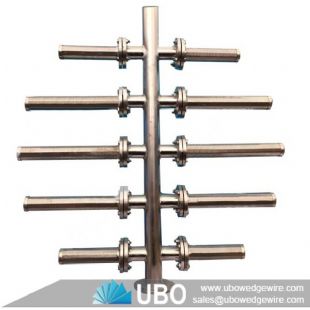

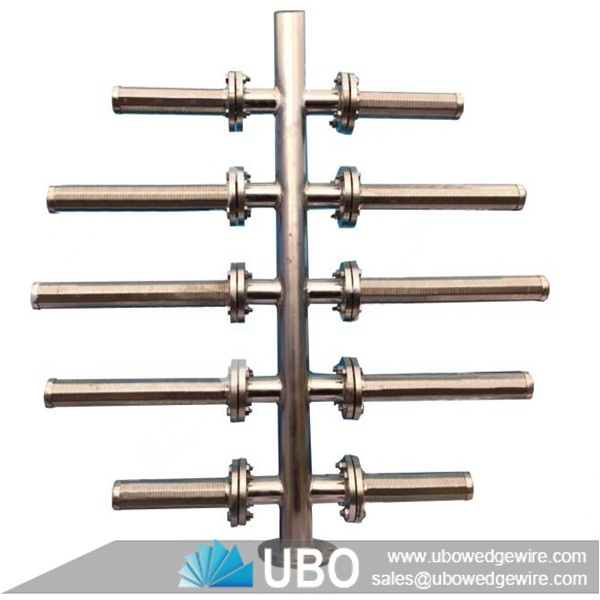

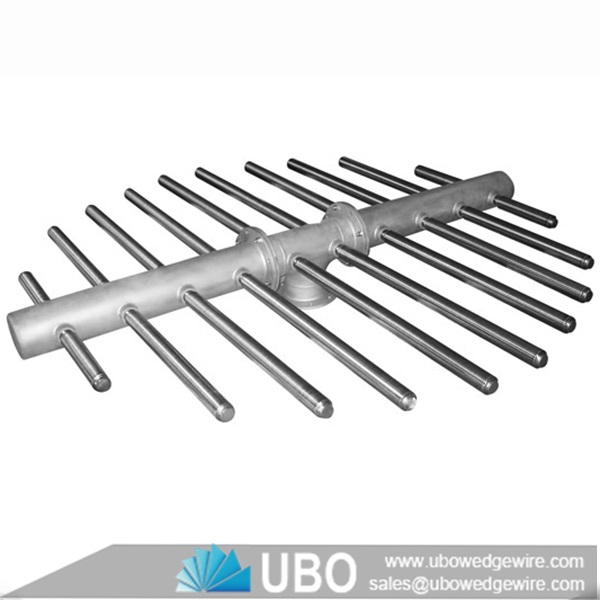

SUS304 Wedge Wire Header Lateral Screen Distributor System Sweetened Juice

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Header Laterals
Application:food processing, waste water filtration, pulp and paper as well as mineral processing applications

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SUS304 Wedge Wire Header Lateral Screen Distributor System Sweetened Juice

Header lateral screen distributor can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel. Header lateral design is also available for flat bottom vessel distributor or collector applications All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.

Application for SUS304 Wedge Wire Header Lateral Screen

Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Advantages for SUS304 Wedge Wire Header Lateral Screen

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

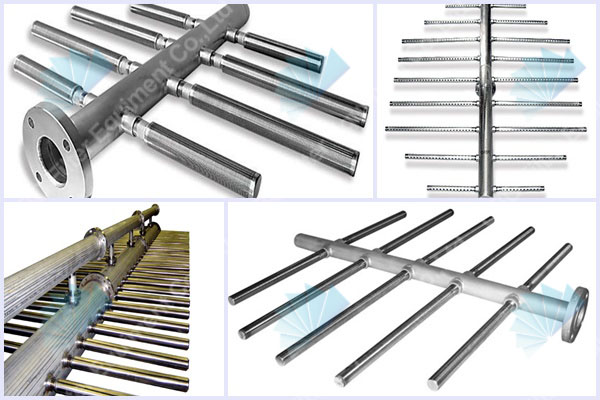

SUS304 wedge wire Header lateral screen distributor system for sweetened juice

Specifications of SUS304 Wedge Wire Header Lateral Screen Distributor System Sweetened Juice:

SUS304 wedge wire Header lateral screen distributor system for sweetened juice

Type
Slots
ФA
ФB
L1
L2
L3
Pipe no
Flange1 DN
Flange2 DN
Length L
99,127,157,
199,224,254,
284,326,351,
538,508,607,
635,665,707,
792,834,861,
889,919,
1016,1046,
1088
AME
0.05
0.1
0.2
0.3
0.5
1
32
40
57
76
89
76
89
108
133
159
219
1100
1280
1500
1700
1800
2000
2500
3200
420
480
600
680
720
1100
1280
1500
1700
1800
6
8
10
12
25
32
40
50
65
80
50
65
80
100
125
150

Packaging and Transportation of SUS304 Wedge Wire Header Lateral Screen Distributor System Sweetened Juice:

SUS304 wedge wire Header lateral screen distributor system for sweetened juice
