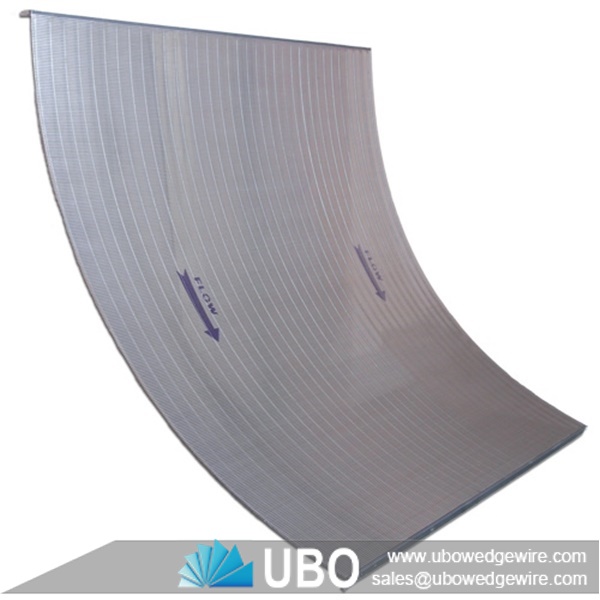

SS304 curve wedge wire screen panel for food processing

More Views

SS304 curve wedge wire screen panel for food processingSS304 curve wedge wire screen panel for food processingSS304 curve wedge wire screen panel for food processing

SS304 curve wedge wire screen panel for food processing

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire sieve bend screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS304 curve wedge wire screen panel for food processing

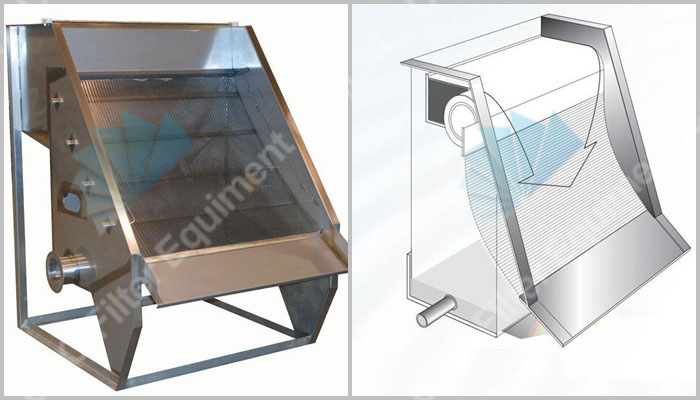

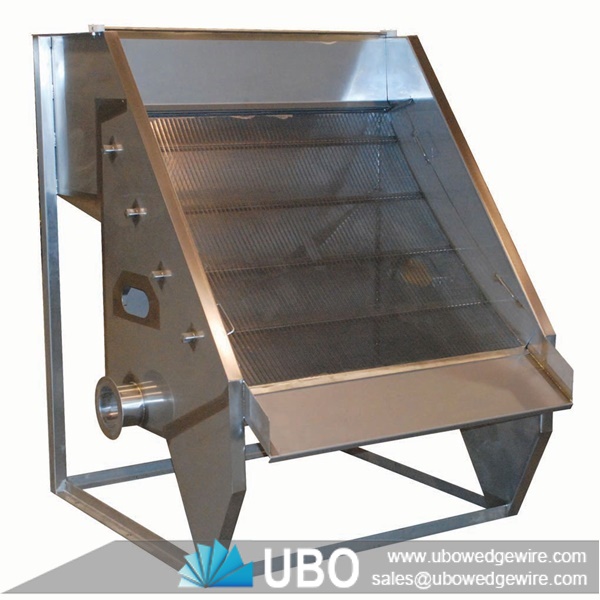

The SS304 curve wedge wire screen panel unit is the answer to many de-watering, sizing, and wastewater cleanup problems. Typical uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more. A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

SS304 curve wedge wire screen panel for food processing

Characteristics of SS304 curve wedge wire screen panel for food processing

continuous slot screens, stronger and more durable
more open area, very precise openings
virtually non-clogging and reduce media abrasion
easier installation and long-term operating and cost benefits

Application of SS304 curve wedge wire screen panel for food processing

Sieve bend screen is widely used in coal,chemical,environmental protection industries
mainly for coal plants and mine plants moving the material to be pre-dehydration, mud, off-mediated job,classification of slime recovery. It can be also used with water cyclone supporting for moving fines material to be effective classification, dehydration, mud, off-mediated.

SS304 curve wedge wire screen panel for food processing

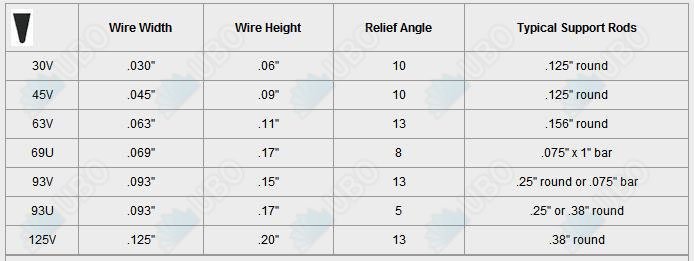

Specifications of SS304 curve wedge wire screen panel for food processing:

SS304 curve wedge wire screen panel for food processing

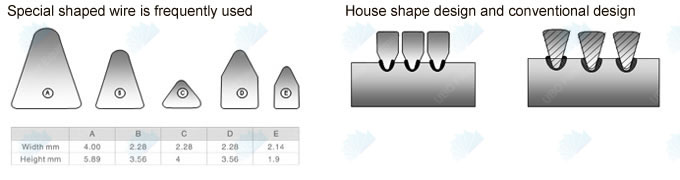

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

120º

End connection

Plain beveled ends, flanged or threaded couplings

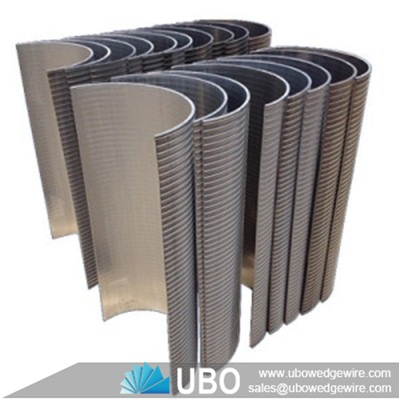

Packaging and Transportation of SS304 curve wedge wire screen panel for food processing:

transportation
