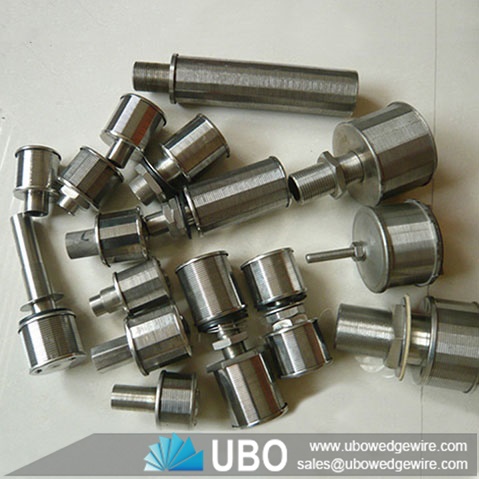

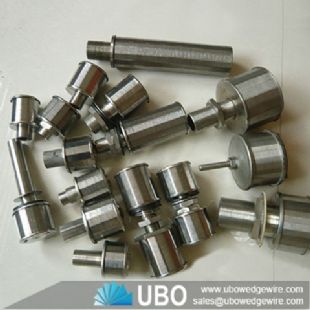

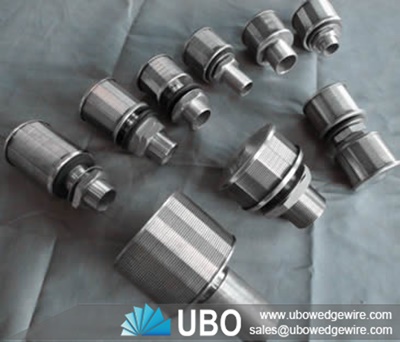

SS weld wire screen filter cap for filtration

More Views

SS weld wire screen filter cap for filtrationSS weld wire screen filter cap for filtrationSS weld wire screen filter cap for filtration

SS weld wire screen filter cap for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS weld wire screen filter cap for filtration

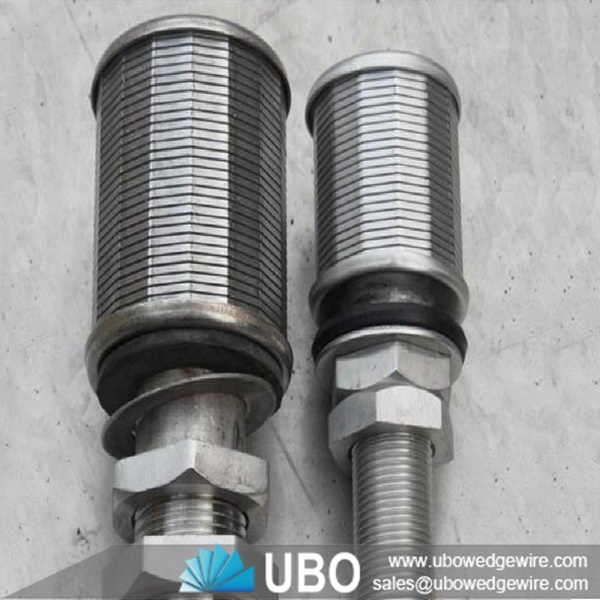

V-shaped wire around the SS weld wire screen filter cap for chemical industry is made up of stainles steel or Hastelloy C wedge wire screen. It use in the water softening treatment equipment, replace Polypropylene(PP) filter.

Application of SS weld wire screen filter cap for filtration

Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

Advantages of SS weld wire screen filter cap for filtration

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Specifications of SS weld wire screen filter cap for filtration:

Type

Slot

Dimension

Flow  area

D

H

L

M

L1

A

0.2mm

Φ45

35

150

M24

Decided by the perforated plate thickness

330m3

A1

0.2mm

Φ45

40

160

M24

400m3

B

0.2mm

Φ53

45

160

M24

500m3

B1

0.2mm

Φ53

45

160

M32

600m3

B2

0.2mm

Φ53

50

170

M32

650m3

C

0.2mm

Φ57

45

160

M32

630m3

C1

0.2mm

Φ57

50

170

M32

780m3

C2

0.2mm

Φ57

55

180

M32

850m3



Note:
4.standard accessories: each water filter nozzle with rubber gasket ,metal gasket material,2 pieces thin type Hexagon nuts.
5.Material:stainless steel 304, 316, 316L, Hastelloy etc.
6.Special specification can be customized according to customer need, welcome to purchase.
