SS wedge wire screen for beverage processing

More Views

SS wedge wire screen for beverage processingSS wedge wire screen for beverage processingSS wedge wire screen for beverage processing

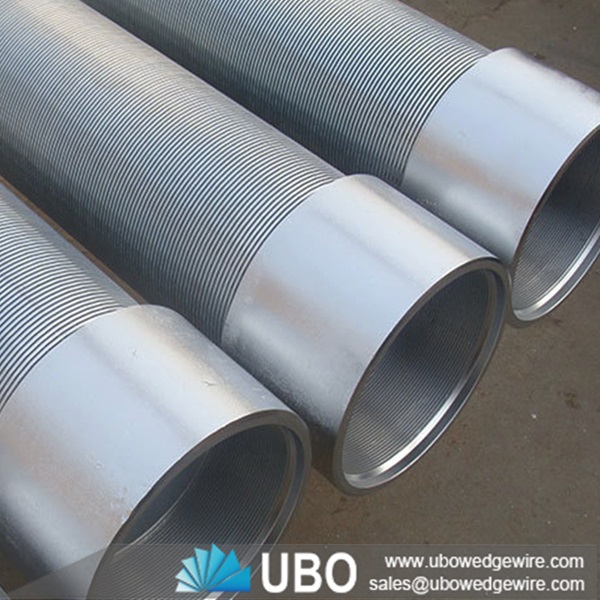

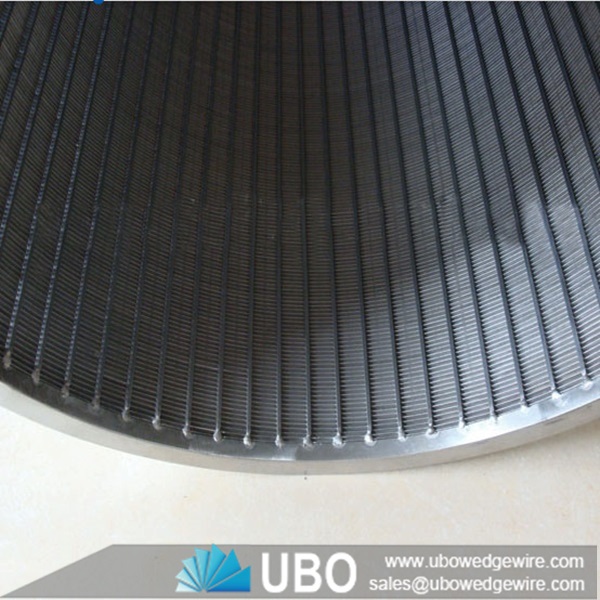

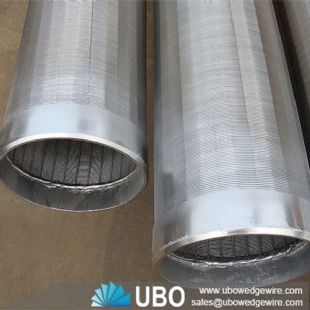

SS wedge wire screen for beverage processing

Category:Wedge Wire Application
Material:Stainless steel 302,304,304L,316,316L
Properties:Wedge Wire Pipe
Application:deep well pump;dive the water pump;in the water-treating equipment;the environmental protection;the sea water transforms into the industrial water

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire screen for beverage processing

SS wedge wire screen for food beverage processing is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

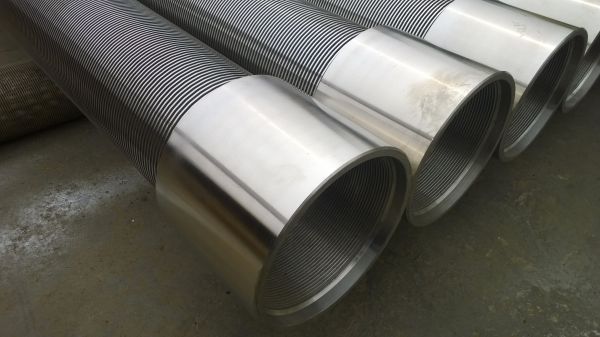

SS wedge wire screen for beverage processing

Application for SS wedge wire screen for beverage processing:

deep well pump;dive the water pump;in the water-treating equipment;the environmental protection;the sea water transforms into the industrial water and life use water desalination treatment;running water treatment;water softening treatment;the petroleum industry;The petroleum product terminal filters and the chemical acid;the alkali liquid filters;the ethyl alcohol and so on the organic solution recycling filters.

Advantage for SS wedge wire screen for beverage processing:

-- wedge wire screen for food beverage processing

-- High mechanical load capacity

-- No form closure connection that would allow vibration of the profiled bar

-- Automated welding process for high-precision manufacturing

-- Perfectly adjusted screen basket profiles

-- Available for all screens

-- Surface finishing as required

Features for SS wedge wire screen for beverage processing:

The Continuous slot screens are made of V-shape wire or wedge shape wire around an internal array of longitudinal support rods. Each joint point of these wire is fusion welded, the V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. Therefore the screen allows water or oil to enter the well freely in ample quantities while keeps the majority of sand and gravel out of the well at the same time.

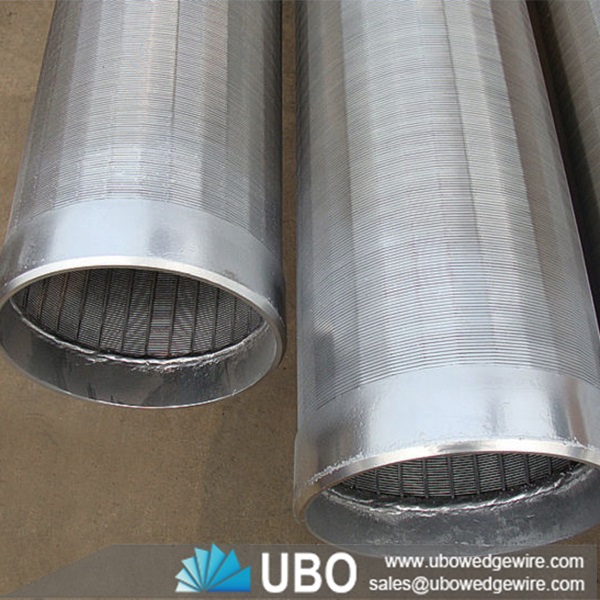

SS wedge wire screen for beverage processing

Specifications of SS wedge wire screen for beverage processing:

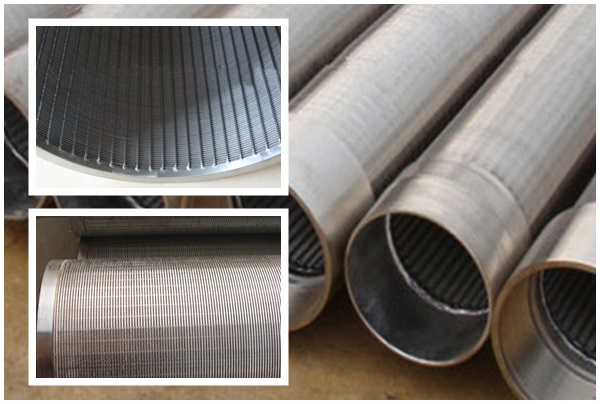

SS wedge wire screen for beverage processing


Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05

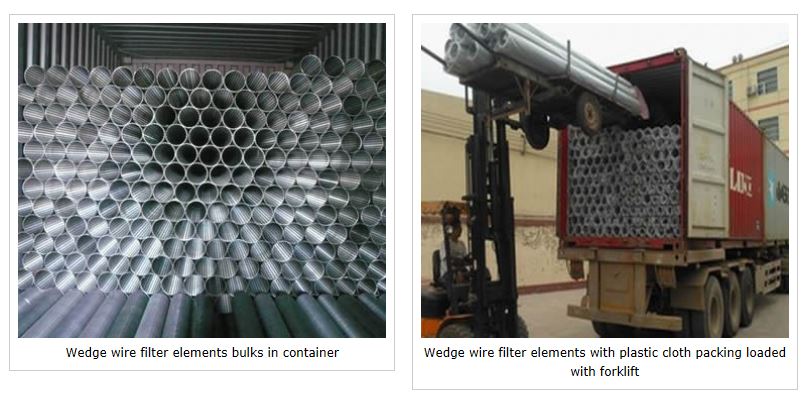

Packaging and Transportation of SS wedge wire screen for beverage processing:



SS wedge wire screen for beverage processing

SS wedge wire screen for beverage processing
