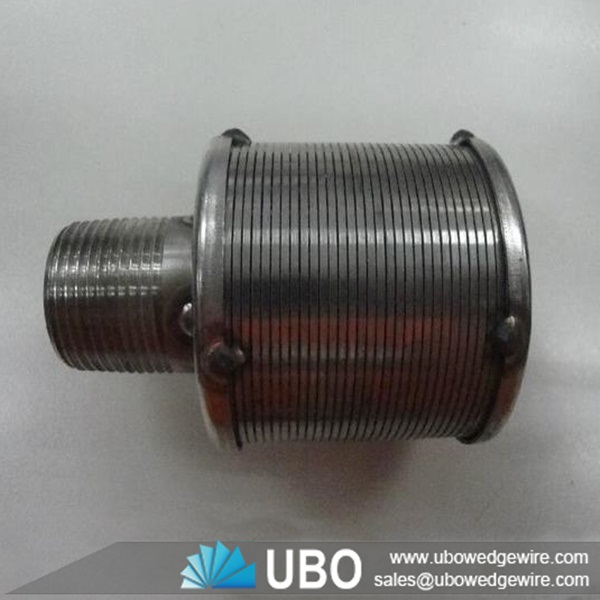

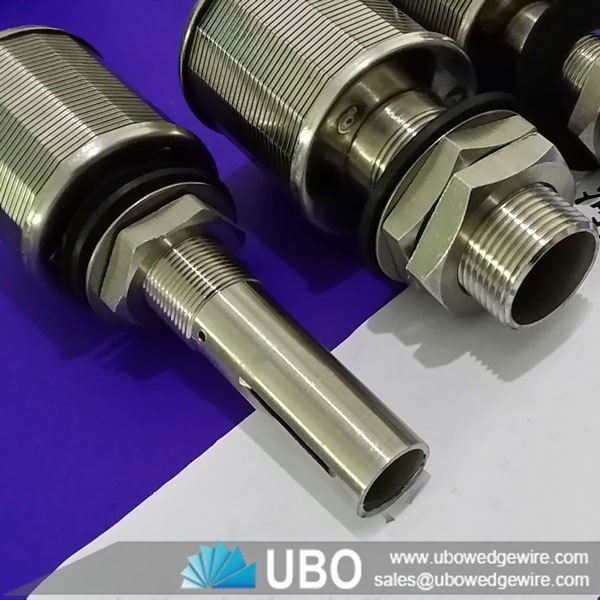

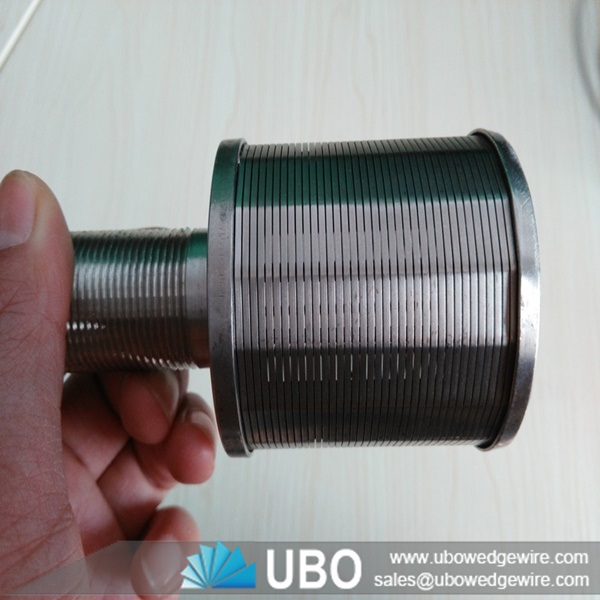

SS wedge wire liquid filter nozzle for water

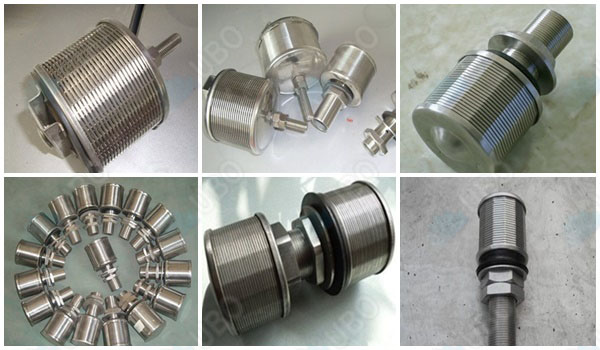

More Views

SS wedge wire liquid filter nozzle for waterSS wedge wire liquid filter nozzle for waterSS wedge wire liquid filter nozzle for water

SS wedge wire liquid filter nozzle for water

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire liquid filter nozzle for water

wedge wire liquid filter nozzle for water are widely used in various industries, especially suitable for water treatment or liquid filtration.The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component.

Stainless steel Water treatment system filter nozzle has a long life. The precise filter ratings are from 20 microns. It is made by welding with profile wire on every connection spots.

Feature of SS wedge wire liquid filter nozzle for water

Composed of surface profile
High open area, non clogging filter surface
Spirally wrapped around the axial support profile
Accurate, narrow slot openings
Triangular wedge wire design creates orifice effect
Cake discharge by back washing

Uses of SS wedge wire liquid filter nozzle for water

The wedge wire liquid filter nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
      Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

        filter nozzle

Specifications of SS wedge wire liquid filter nozzle for water:

filter nozzle


No.
(mm)TYPE
OD
       (mm)
 ID
        (mm)
Support wire Number
Filter direction
1
SRD25.4
25.4
18.6
12
FOTI
2
SRD 33
33
24
8
FOTI
3
SRD 37
37
28
8
FOTI
4
SRD 40
40
31
8/10
FOTI/FITO
5
SRD 45
45
36
10/12
FOTI/FITO
6
SRD 48
48
38
12
FOTI/FITO
7
SRD 60
60
51
12
FOTI/FITO
8
SRD 70
70
61
12/18
FOTI/FITO
9
SRD 85
85
76
18
FOTI/FITO
10
SRD 110
110
101
24
FOTI/FITO
11
SRD120
120
111
24
FOTI/FITO

Packaging and Transportation of SS wedge wire liquid filter nozzle for water:
