SS water well screen tube for liquid filtration

More Views

SS water well screen tube for liquid filtrationSS water well screen tube for liquid filtrationSS water well screen tube for liquid filtration

SS water well screen tube for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS water well screen tube for liquid filtration

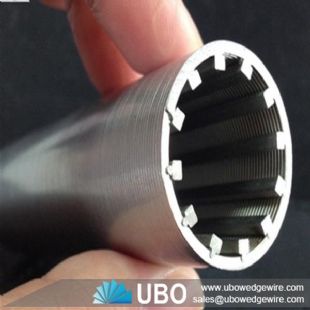

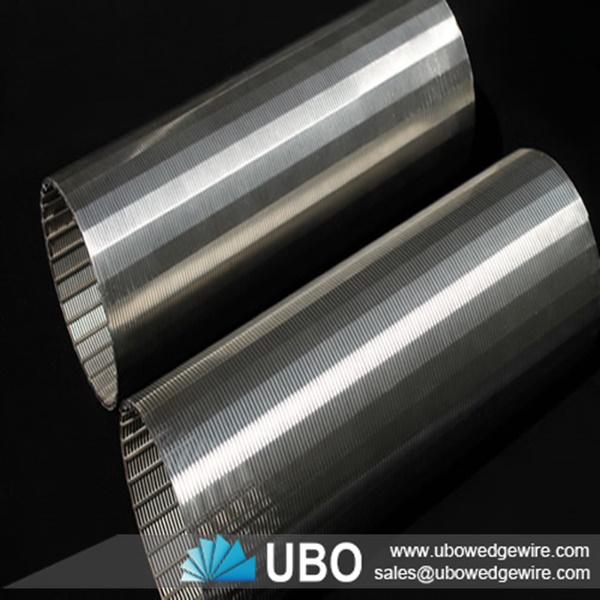

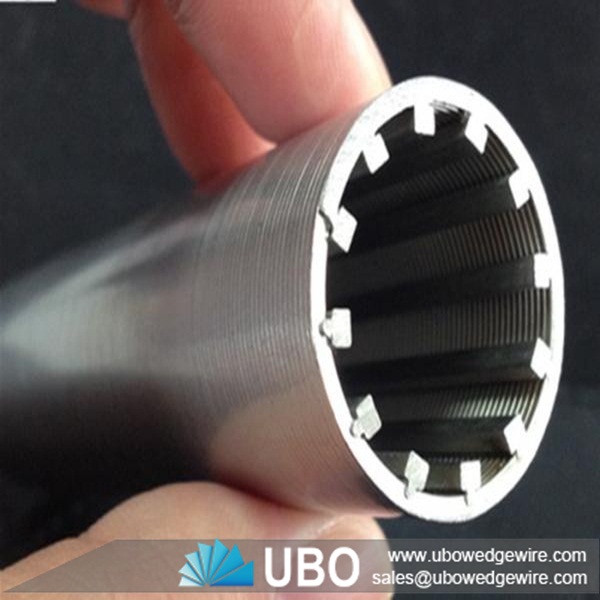

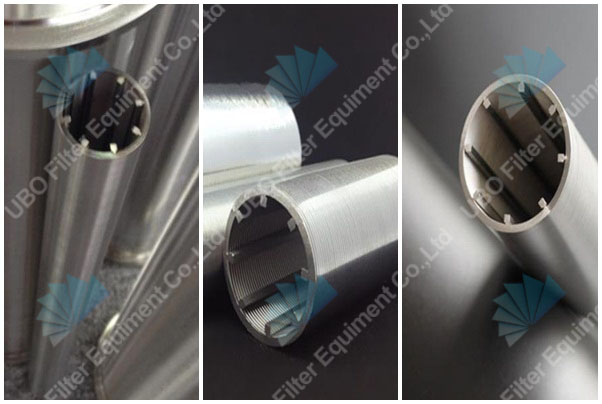

SS water well screen tube, also called round slot tube,wrap wire screen pipe. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

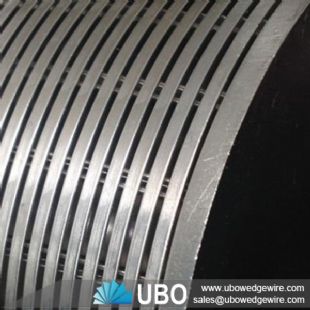

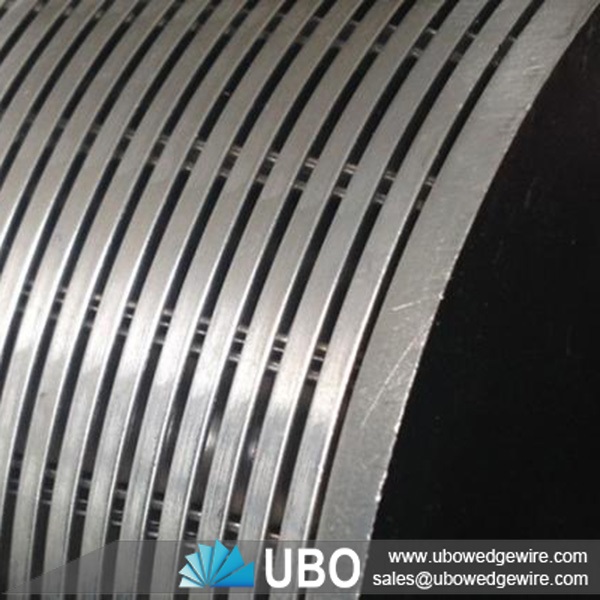

The wedge wire screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

SS water well screen tube for liquid filtration

Features of SS water well screen tube for liquid filtration

Accurate filtering performance.
High efficiency.
Narrow slot openings.
Normal or high grade type for choice.
Various edge types.
Wide range of diameters for choice.
Special sizes can be customized.
Economical but high grade.
Corrosion resistance.
Rust resistance.
Long service life and durable.

Applications of SS water well screen tube for liquid filtration

Petroleum industry. Oil filtration.
Water treatment industry. Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment.
Chemical industry. End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering.
Hydro-geological exploration.
Drilling construction.
Geothermal development.

SS water well screen tube for liquid filtration

Specifications of SS water well screen tube for liquid filtration:

SS water well screen tube for liquid filtration

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

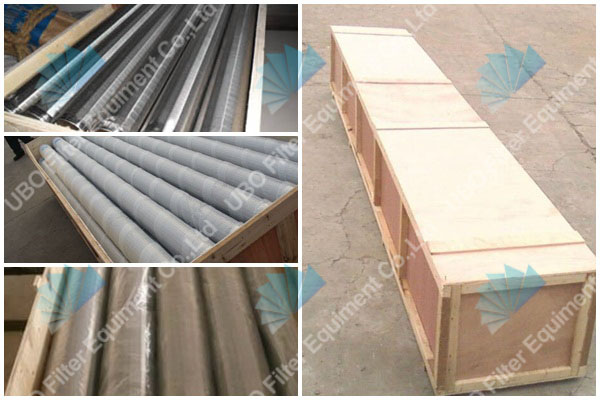

Packaging and Transportation of SS water well screen tube for liquid filtration:

packing

transportation
