SS water well screen pipe

More Views

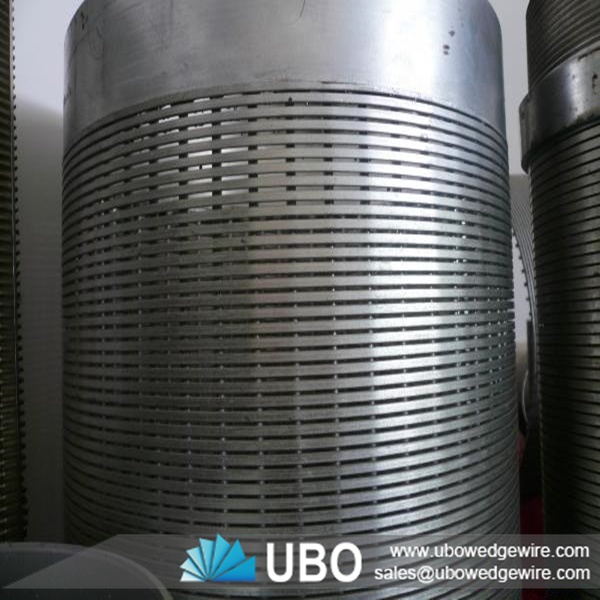

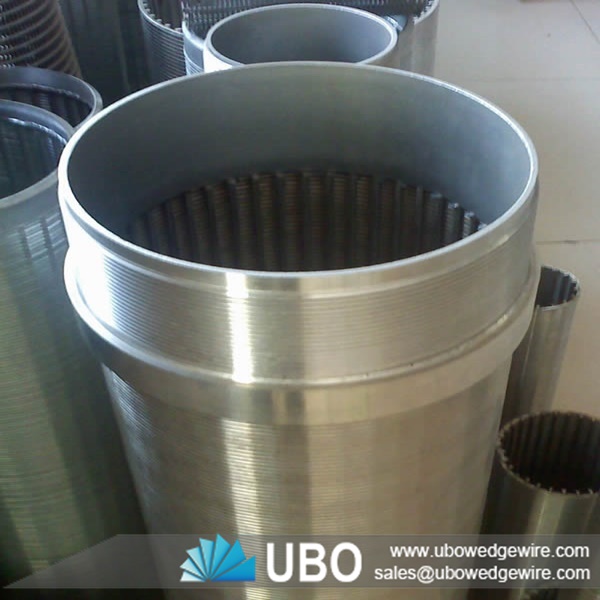

SS water well screen pipeSS water well screen pipeSS water well screen pipe

SS water well screen pipe

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS water well screen pipe

SS water well screen pipe also be named: v wire water well screens, wire wrapped screens pipe, Johnson Screen,welded wedge wire screen, reversed slot screen, continuous slot pre-pack, water filter, screen cylinders, stainless steel slot tube,reverse rolled screen, strainer pipe, continuous slot wire wrap well screens, pipe base well screen, ribbed-type wire wrapped screen, stainless steel or low carbon galvanized or mild steel wire screen, wire wrapped liner, woven wedge wire screen, slot wire screen tube, well screen, strainer screens, well point screens,oil screen tube,etc

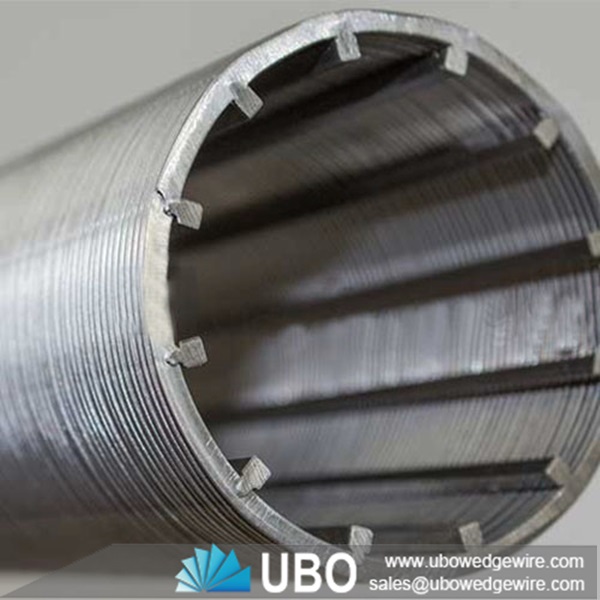

SS water well screen pipe consist of V-shape profile wire and the longitudinal support rods. each intersecting point of these wires is fusion welded. So Johnson screen pipe has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage, and make sure of the unimpeded water. The continuous slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so water well screen pipe can filter sand better. Meanwhile ,the slot size can be changed according to the real condition of the earth.

Advantages of SS Water Well Screen Pipe

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone

2) A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Application of SS Water Well Screen Pipe

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens, many other liquids, solids separation applications.

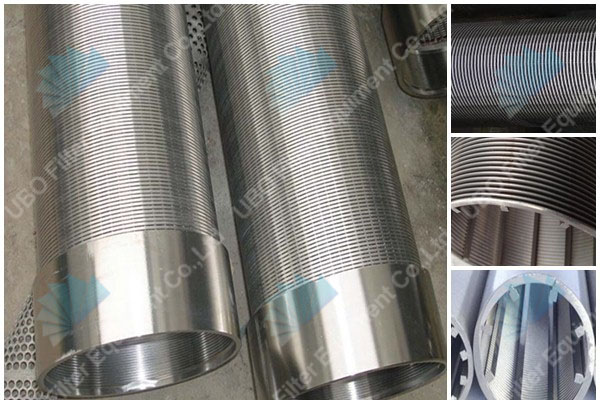

SS water well screen pipe

Specifications of SS water well screen pipe:

SS water well screen pipe

SIZE

(inch)

O.D

(mm)

SLOT

(inch)

LENGTH

(m)

Collapse

Strength

(psi)

Tensile

Weight

(ton)

Wire size

(mm)

RODS (mm)

4

117

0.040

3

395

6

2.2*3.0

3.8mm/22

4

114.3

0.040

3

395

6

2.3*3.0

 3.8mm/22

6

168.3

0.040

3

252

8

2.3*3.5

         3.8mm/32

8

219.1

0.010

3

399

10.5

3.0*5.0

         3.8mm/48

8

219.1

0.020

3

370

10.5

3.0*5.0

         3.8mm/48

8

219.1

0.040

3

323

10.5

3.0*5.0

         3.8mm/48

10

273.1

0.010

3

206

11

3.0*5.0

          3.8mm/50

10

273.1

0.020

3

191

11

3.0*5.0

          3.8mm/50

10

273.1

0.040

3

167

11

3.0*5.0

          3.8mm/50


Packaging and Transportation of SS water well screen pipe:

Packing: Single with bubble bags and thenin wooden cases.
