Quality Wedge Wire Screen Manufacturer in China

SS Wedge Wire Sieve Bend Screens of  Food Processing

More Views

SS Wedge Wire Sieve Bend Screens of  Food ProcessingSS Wedge Wire Sieve Bend Screens of  Food ProcessingSS Wedge Wire Sieve Bend Screens of  Food Processing

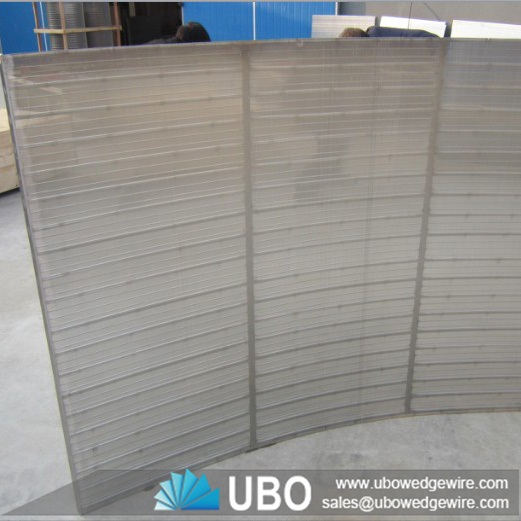

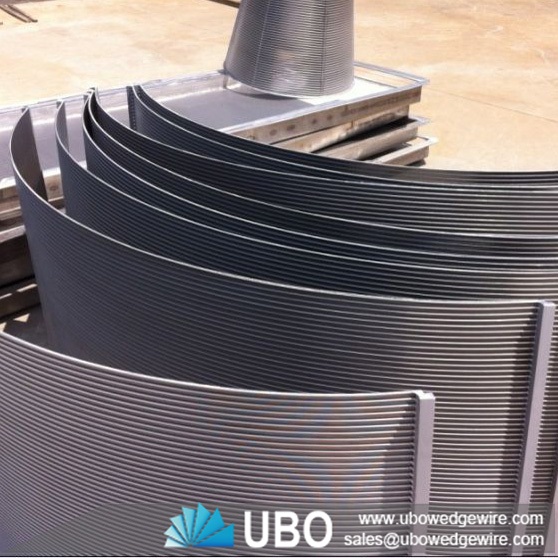

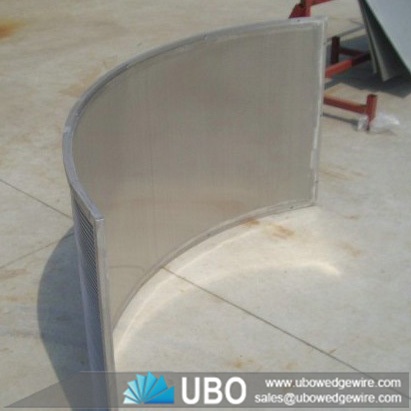

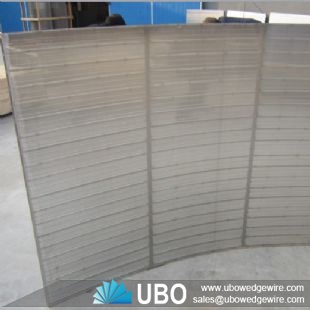

SS Wedge Wire Sieve Bend Screens of Food Processing

Category:Wedge Wire Application
Material:Carbon Steel, SS 201, 304, 304L, 316, 316L etc.
Properties:Sieve Bend Screen
Application:Construction industry,Bathroom drainage,Mineral processing,Water treatment,Food processing

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS Wedge Wire Sieve Bend Screens of Food Processing

SS Wedge Wire Sieve Bend Screens also known as side hill screens, parabolic screens,rundown screens, gravityscreens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes,corn wet milling, coal preparation, and gold recovery.Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Specifications of SS Wedge Wire Sieve Bend Screens of Food Processing:

1.Opening /Slot: 0.02mm -- 6.0mm (Can be customized)
2.Pitch: 10mm -- 35mm
3.Max Length: 6m

Wide (mm)
Length (mm)
38
1200
2400
3600
4800
6000
65
900
1000
1200
1500
2000
100
1000
1200
1800
2000
3000

Packaging and Transportation of SS Wedge Wire Sieve Bend Screens of Food Processing:
