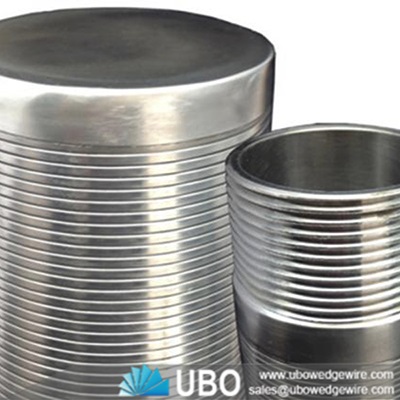

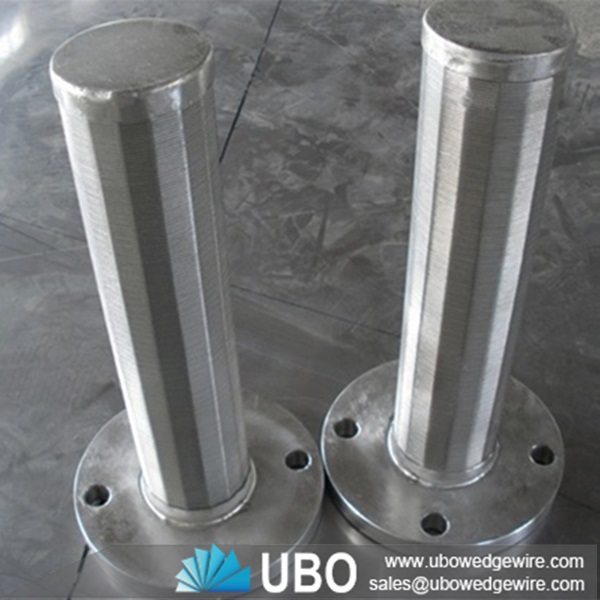

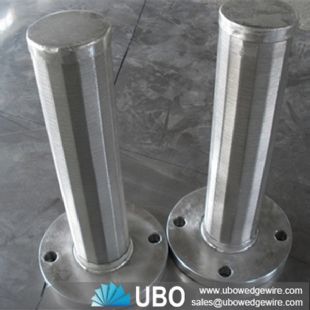

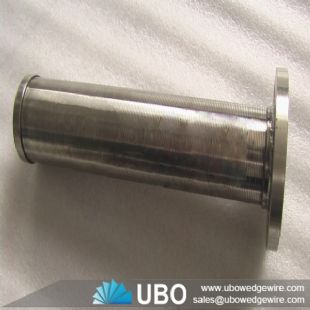

Resin Trap Candle Filter for Water Filter Cartridge Alkaline Lateral NozzleResin Trap Candle Filter for Water Filter Cartridge Alkaline Lateral NozzleResin Trap Candle Filter for Water Filter Cartridge Alkaline Lateral Nozzle

Resin Trap Candle Filter for Water Filter Cartridge Alkaline Lateral Nozzle

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Header Laterals
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Resin Trap Candle Filter for Water Filter Cartridge Alkaline Lateral Nozzle

SS 304 wedge wire candle filter is a the device which traps the resin grain that flows out with water. The resin grain will enter the system when the strength of resin is low and there is some damage of the resin tube. And this would affect the equipment operation. Installing the resin trap filter can prevent the resin grain from entering into the system.

Application for Resin Trap Candle Filter for Water Filter Cartridge Alkaline Lateral Nozzle

Resin Traps are applied in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Advantages for Resin Trap Candle Filter for Water Filter Cartridge Alkaline Lateral Nozzle

1) With V-shaped slot, it is not easy to be blocked and easy to clean.

2) With high strength, this resin trap can bear high temperature and high pressure.

3) With high precision, it can intercept the resin grain effectively

4) The slot is adjustable according to the medium to ensu:re effectively interception.

Detailed for Resin Trap Candle Filter for Water Filter Cartridge Alkaline Lateral Nozzle

1) Resin Trap to keep the resin does not pass the filter if there is a leak from the filter / strainer / nozzle. so it can be detected / maintained so that the resin is not wasted.

2) Resin Trap Screen Predominantly used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.

In the event that there is resin/media build up with the Resin Trap Screen assembly, an increase in the pressure drop will result and if one is installed, the resin/media will be visible through the “sight glass”.

resin trap wire mesh strainers for water filter cartridge alkaline lateral nozzle

Specifications of Resin Trap Candle Filter for Water Filter Cartridge Alkaline Lateral Nozzle:

resin trap wire mesh strainers for water filter cartridge alkaline lateral nozzle


Diameter (mm)

Φ20, Φ50, Φ53, Φ57, Φ60, Φ65, Φ70, Φ75, Φ80, Φ100, Φ125, Φ200, Φ245, Φ300, Φ320, Φ360, Φ400, Φ450, Φ500, Φ550, Φ600, max. 1200

Slot (mm)

0.010, 0.015, 0.02, 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5......15 ...

Length (mm)

50~6000

Material

stainless steel (AISI 304, 316, 316L...), low carbon steel, low carbon steel galvanized zinc, steel treated with plastic spraying

Flange

according to your special requirement

Packaging and Transportation of Resin Trap Candle Filter for Water Filter Cartridge Alkaline Lateral Nozzle:

resin trap wire mesh strainers for water filter cartridge alkaline lateral nozzle
