Reinforced stainless steel wedge wire screen panel for pulp screening and fractionation

More Views

Reinforced stainless steel wedge wire screen panel for pulp screening and fractionationReinforced stainless steel wedge wire screen panel for pulp screening and fractionationReinforced stainless steel wedge wire screen panel for pulp screening and fractionation

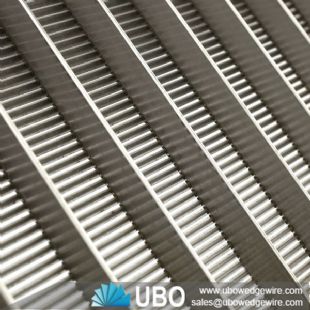

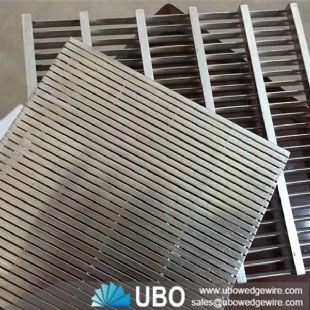

Reinforced stainless steel wedge wire screen panel for pulp screening and fractionation

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wedge wire
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Reinforced stainless steel wedge wire screen panel for pulp screening and fractionation

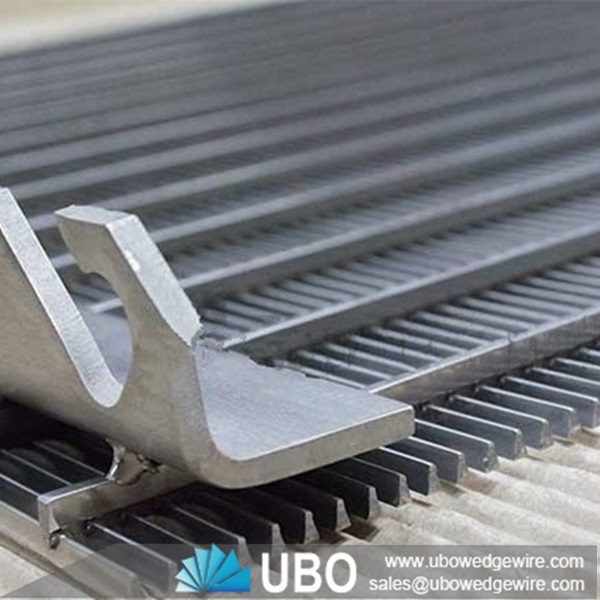

Reinforced wedge wire screens are flat panels of pressure welded screens, forged in frames and prepared for assembly. Dynamically working segments to be built in vibrating sifters demand proper strengthening depending on screen load and proper frame which will guarantee proper fixing of screen to the sifters frame and extend life span. Segments working statically – they can work without special strengthening as bottoms and beds in tanks or storage and sewage reservoirs.

Reinforced stainless steel wedge wire screen panel for pulp screening and fractionation

Usages for reinforced stainless steel wedge wire screen panel for pulp screening

vibrating screen decking,cross flow sieve, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.


Features for reinforced stainless steel wedge wire screen panel for pulp screening

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation:Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.

3) Reduce the abrasion of the pump:Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into screen because of high pressure, thus reduce the abrasion of the pump.

4) Extend the life span of wells:Comparatively, groundwaters entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

Reinforced stainless steel wedge wire screen panel for pulp screening and fractionation

Specifications of Reinforced stainless steel wedge wire screen panel for pulp screening and fractionation:

Reinforced stainless steel wedge wire screen panel for pulp screening and fractionation

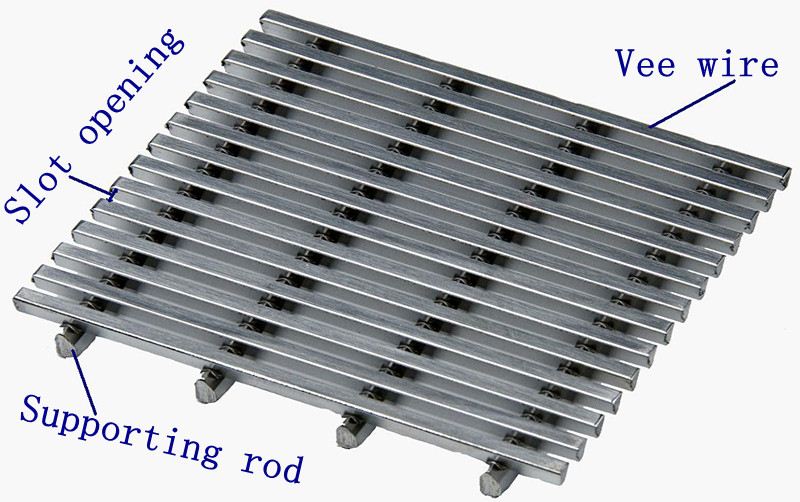

Profile Wire








Width(mm)
1.5
1.5
2.3
2.3
1.8
3.0
3.7
3.3
Height(mm)
2.2
2.5
2.7
3.6
4.3
4.7
5.6
6.3


Support Rod





Round
Width(mm)
2.3
2.3
3.0
3.7
3.3
Ø2.5~Ø5mm
Height(mm)
2.7
3.6
4.7
5.6
6.3




Reinforced stainless steel wedge wire screen panel for pulp screening and fractionation

Packaging and Transportation of Reinforced stainless steel wedge wire screen panel for pulp screening and fractionation:

Reinforced stainless steel wedge wire screen panel for pulp screening and fractionation
