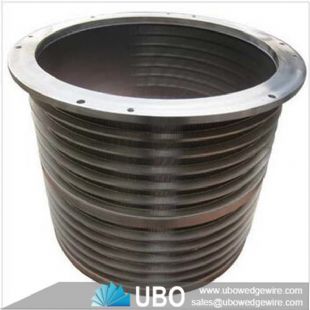

Pressure Screen Baskets for Pulp Screening and Fractionation

More Views

Pressure Screen Baskets for Pulp Screening and FractionationPressure Screen Baskets for Pulp Screening and FractionationPressure Screen Baskets for Pulp Screening and Fractionation

Pressure Screen Baskets for Pulp Screening and Fractionation

Category:Wedge Wire Application
Material:stainless steel 302,304,316,316L
Properties:Wedge Wire Screen Basket
Application:wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining, painting as well as the industries of cigarette, sugar

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

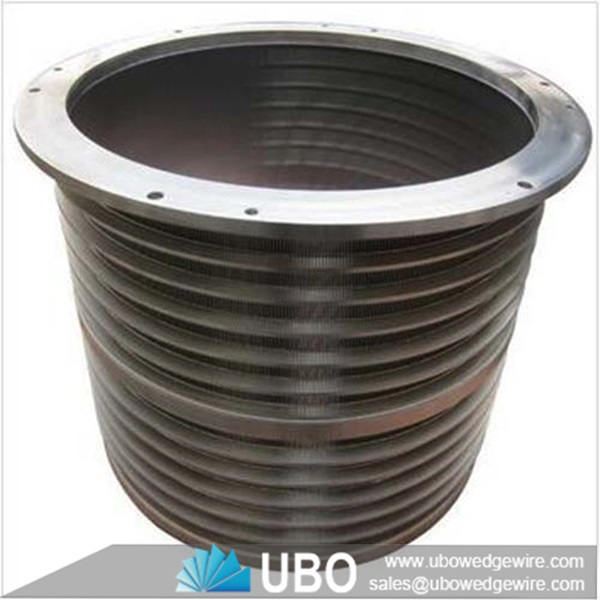

Details of Pressure Screen Baskets for Pulp Screening and Fractionation

Pressure screen basket is one part of the paper pulp pressure screen. The pressure screen is used for paper pulp screening n the paper making process.The basket is made of stainless steel, have hole screen and slotted screen two kinds.

The entire basket with bolts fastened to the upper portion and lower portion of the housing in conjunction with the housing. If the screen basket is hole kind, according to the wear surface, the sieve drum can vertically inverted continue to use, since the lower sieve drum easy to wear, while the upper part is not easy to wear.

Application for Pressure Screen Baskets for Pulp Screening and Fractionation:

Our products are widely used for wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining, painting as well as the industries of cigarette, sugar, foodstuff, noise-sliencer, environmental protection, agricultural machine, chemical industry and pharmacy industry.

Features for Pressure Screen Baskets for Pulp Screening and Fractionation:

-- Mechanically held wires, built in the round.

-- Rugged, high mechanical strength.

-- Electric-chemical polish: no fiber string.

-- Precise slot-width tolerance.

-- High wear resistance.

-- High impact resistance.

-- Larger open area.

-- Self-supporting structure.

-- Non-plugging slot design.

-- Lower operation and maintenance cost.

-- Available for outward and inward flow screens.

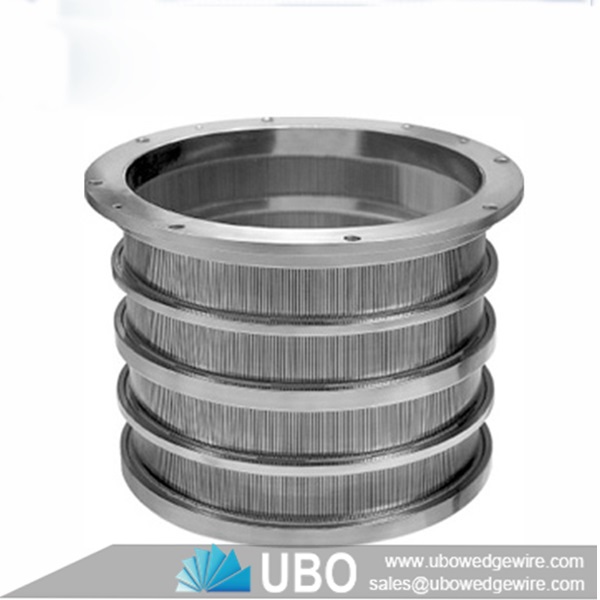

filter strainer baskets for pulp screening and fractionation

Specifications of Pressure Screen Baskets for Pulp Screening and Fractionation:

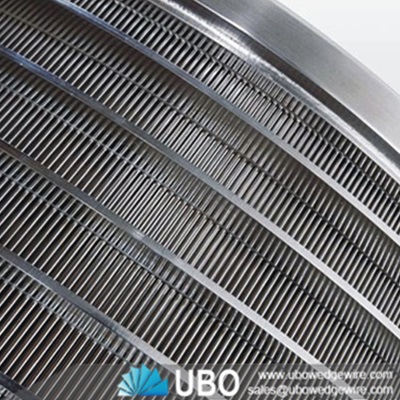

filter strainer baskets for pulp screening and fractionation





Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05
