Oil Slot Screen Pipe

More Views

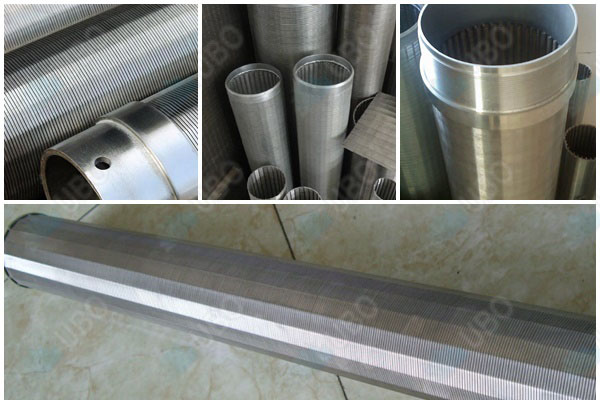

Oil Slot Screen PipeOil Slot Screen PipeOil Slot Screen Pipe

Oil Slot Screen Pipe

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:oil,liquid filter,water filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

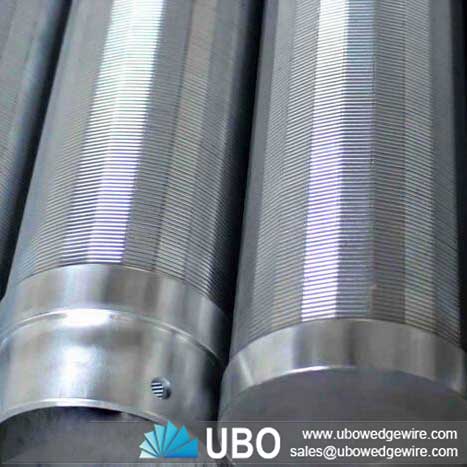

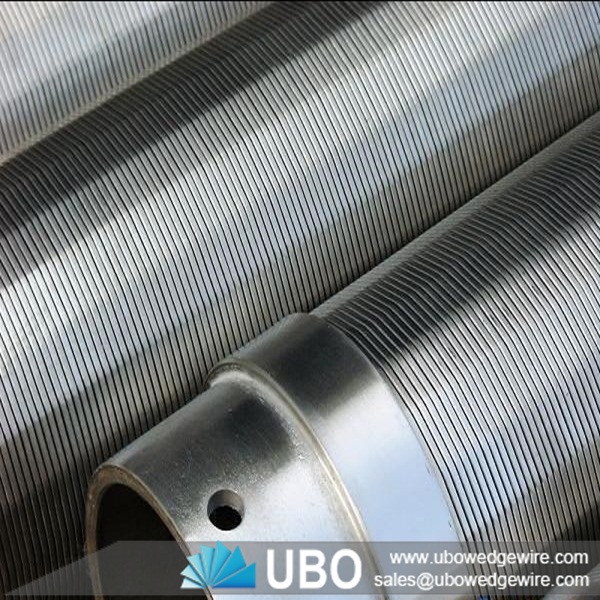

Details of Oil Slot Screen Pipe

The oil slot screen pipe for industrial is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

There are two type of oil slotted pipe will be introduced: straight and keystone. Straight slots are the same width on the outside and the inside of the pipe. The openings on the keystone slots are wider on the inside than they are on the outside. The benefit of the keystone profile is that it allows for the slot to be self-cleaning. We also build stainless steel screen that can be welded to the exterior of specially slotted pipes to produce an extra layer of filtering for specific ground or heavy oil conditions.

The type of oil slotted pipe you need is determined by soil and ground conditions. Generally speaking, the width of a slot should be roughly two-to-three times the diameter of the sand you are drilling through. By using circular, high-speed steel saws and cutting into the pipe from the outside, the slots are slightly longer on the outside than they are on the interior walls. This creates a funneling effect and helps the oil flow faster.

We generally cut liners with an even number of rows so each row can be staggered. Limiting the amount of material we remove to 3% of the total surface area helps preserve the pipe's strength and structural integrity, and also make the drainage and filtering activity more efficient.

Advantages of Oil Slot Screen Pipe

1) Large open area with small slots
2) High filtering accuracy
3) Best-class quality and competitive price
4) Can be customized
5) Timely delivery

Usages: extracting petroleum and natural gas.

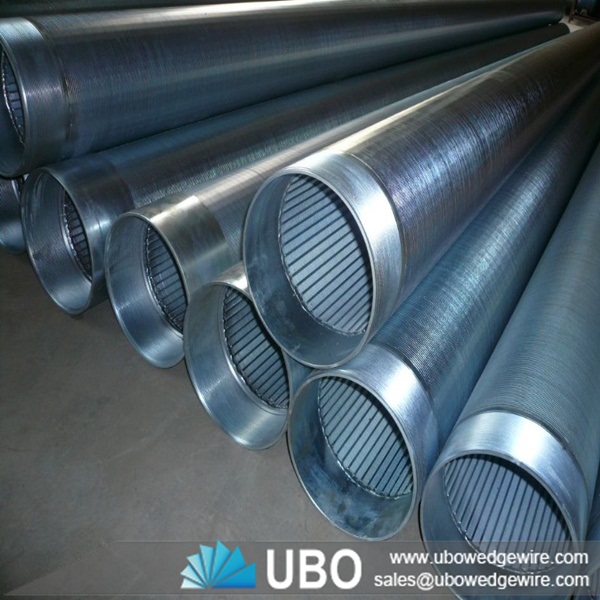

oil slot screen pipe

Specifications of Oil Slot Screen Pipe:

screen pipe


Screen Pipe

ID
mm

Length
m

Slot Length
mm

Slot NO.
NO./m

Slot Width
mm

Slot
Tolerance

Valid Filter
Area
cm/m

Max.
Strength
KN

Spec
mm

Thickness
mm

Per Weight
kg/m

60.32

5

6.84

50.3

3

80

200

0.3

    ±1

48

512.54

73.02

5.5

9.15

62

240

57.6

688.55

88.9

6.5

13.22

75.9

280

67.2

995.1

101.6

6.5

15.22

88.6

300

72

1151.2

114.3

7

18.47

100.3

10

320

76.8

1400.4

127

7.52

22.13

112

340

81.6

1673.8

139.7

7.72

25.11

124.3

360

86.4

1900.2

9.17

29.48

121.4

360

86.4

2232.4

168.3

8.94

35.09

150.4

400

96

2672.95

177.8

8.05

33.68

161.7

440

105.6

2559.2

9.19

38.19

159.4

440

105.6

2940.7

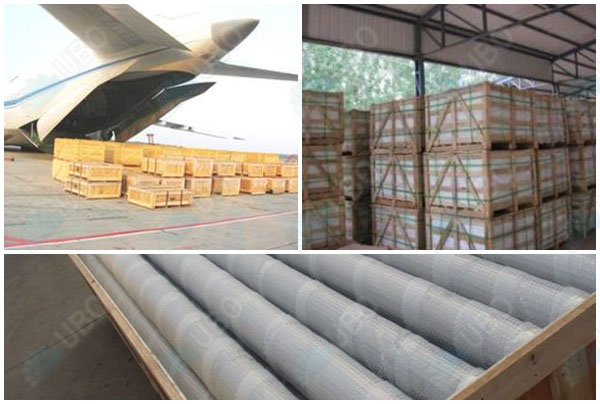

Packaging and Transportation of Oil Slot Screen Pipe:


Packaging Details: packed in a plastic then in a wooden box or as request
Delivery Detail: 25 days and according to the order quanity

transport
