Nozzle strainer water slot well screen for filtration

More Views

Nozzle strainer water slot well screen for filtrationNozzle strainer water slot well screen for filtrationNozzle strainer water slot well screen for filtration

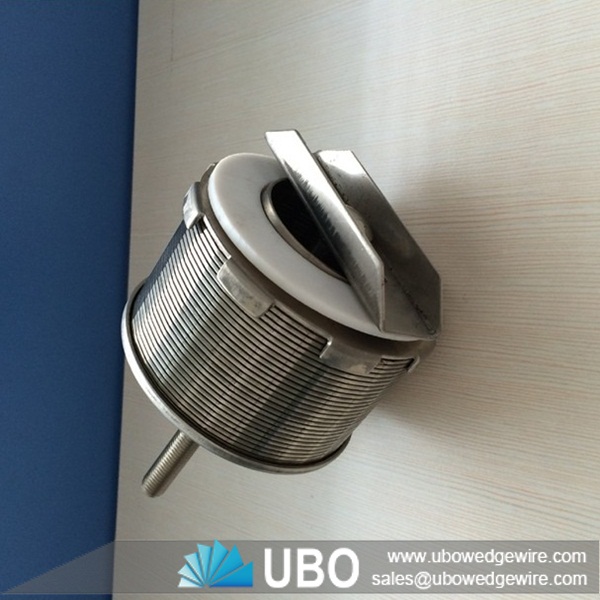

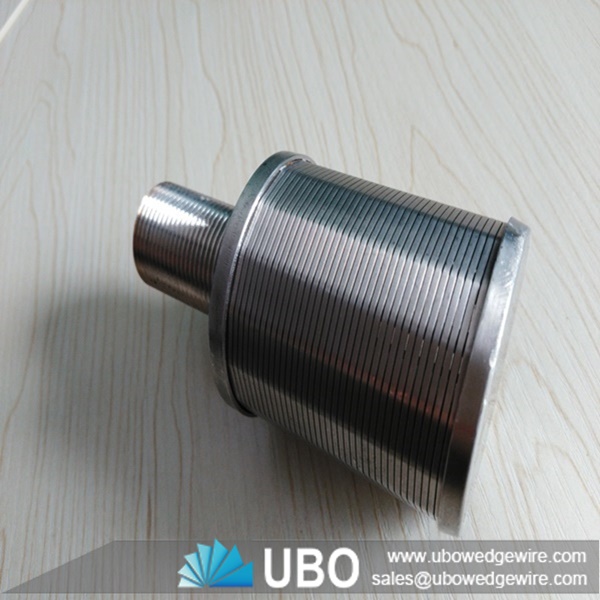

Nozzle strainer water slot well screen for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Nozzle strainer water slot well screen for filtration

Nozzle strainer water slot well screen provided more open area per square foot of screen, allowing more water into the well. it is with firm structure, high temperature and corrosion resistance, good mechanical properities . The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so Wedge Wire screen pipes can filter sand better.

water well screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.

Features of nozzle strainer water slot well screen for filtration

-- Non-clogging slot

-- Large open area

-- Low pressure drop

-- Hydraulic efficiency

-- maximizing flow rates

-- Mechanical strength

-- Easy cleaning

Usages of nozzle strainer water slot well screen for filtration

The wedge wire screen nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

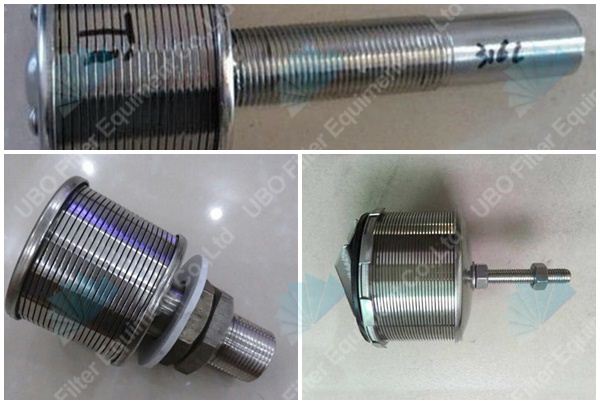

Nozzle strainer water slot well screen for filtration


Specifications of Nozzle strainer water slot well screen for filtration:

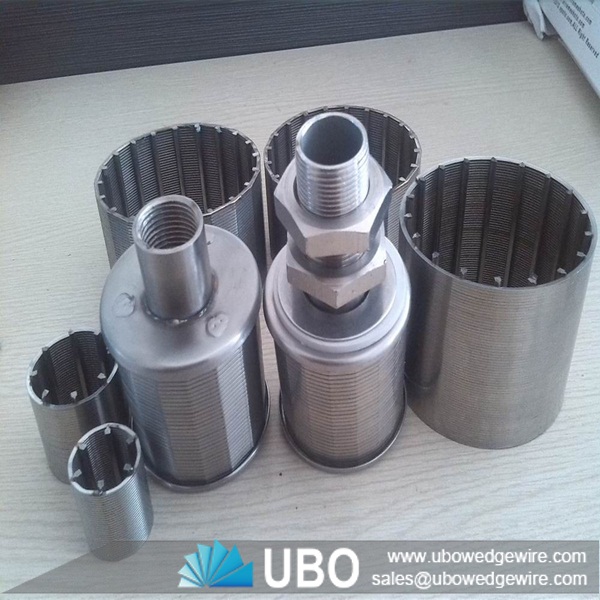

Nozzle strainer water slot well screen for filtration



No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2(reference)

D

L1

L

M

1

TYS45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

TYS53-2-B

1

0.2-0.5

53

45

100

24

570

3

TYS53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

TYS57-3-B

2

0.2-0.5

57

45

110

32

600

5

TYS70-4-B

3

0.2-0.5

70

55

120

32

1000

Packaging and Transportation of Nozzle strainer water slot well screen for filtration:
