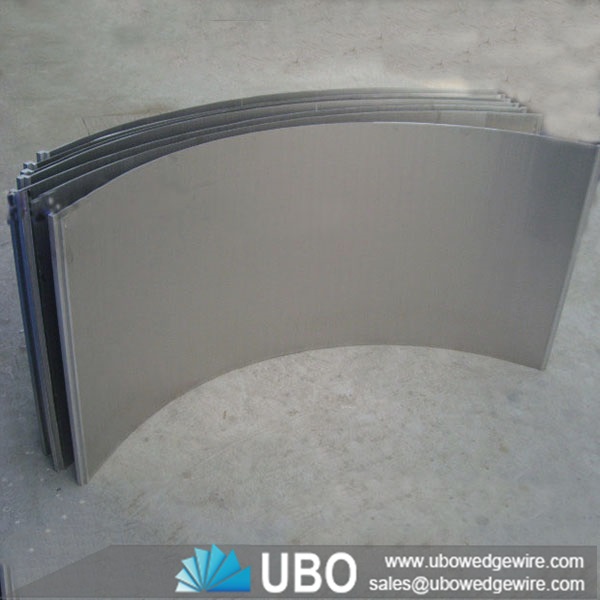

Mineral processing stainless steel wedge wire welded cross flow sieves
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge Wire Screen |
Application: | waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Mineral processing stainless steel wedge wire welded cross flow sieves
Vibrating sieve screen with its approximately circular movement is of multilayer and high efficient. The eccentric shaft vibration exciter and partial block help to adjust amplitude. It coats with multi - component organic binder on perforated metal plate and screen cloth contact to enhance corrosion to form a bonding layer, so that bolting cloth and perforated metal plate as together, constitute the whole napped component.
Usages for stainless steel wedge wire welded cross flow sieves:

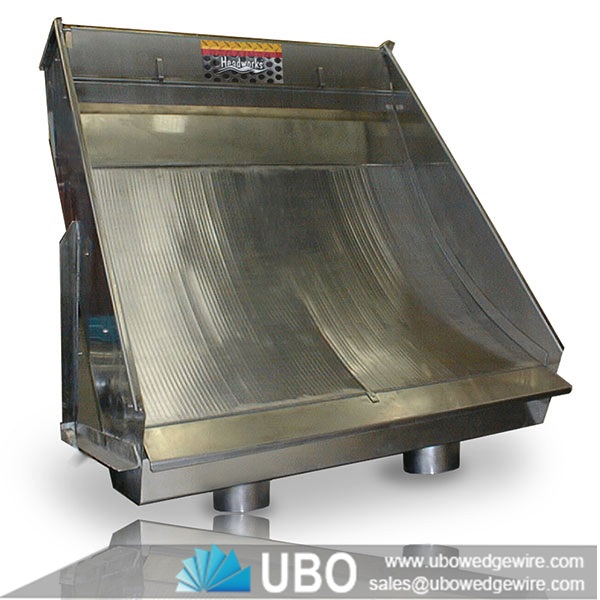

Sieve bend screening unit is the answer to many de-watering, sizing, and wastewater cleanup problems. Typical uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more.
Features for stainless steel wedge wire welded cross flow sieves:
The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering
Advatanges for stainless steel wedge wire welded cross flow sieves:

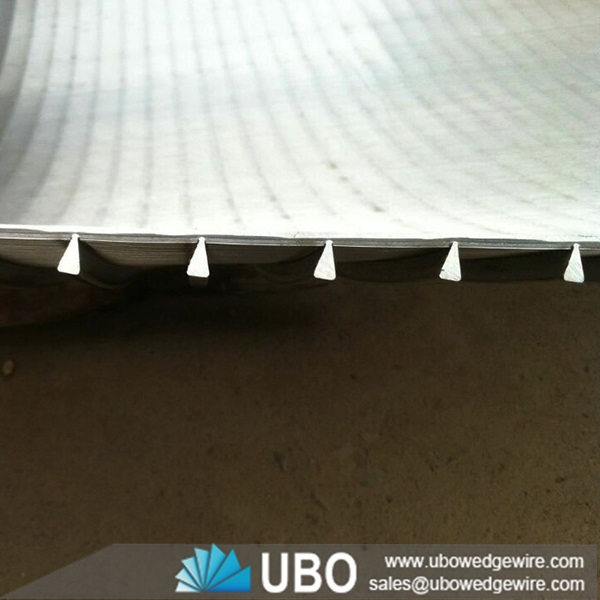

V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.
Continuous Slots: The special design gives continuous slot opening across the periphery and length of screen.
Very Large % Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.
Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening is available down to 0.15 mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.
Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.
Specifications of Mineral processing stainless steel wedge wire welded cross flow sieves:
Surface Profile |
W
|
H
|
Material |
10S |
0.75
|
1.425
|
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL |
10.75
|
1.8
|
|
22S |
1.8
|
3.7
|
|
4S |
0.45
|
1.2
|
|
50SL |
3.4
|
7.5
|
Surface Profile
|
W
|
H
|
Material
|
Q22
|
2
|
2.28
|
S304,S316L Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35
|
3
|
5
|
|
Q53
|
4
|
3
|
|
D56
|
4
|
5.6
|
|
D45
|
3.8
|
6.0
|
