Milling type screen cylinder for filtration

More Views

Milling type screen cylinder for filtrationMilling type screen cylinder for filtrationMilling type screen cylinder for filtration

Milling type screen cylinder for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Milling type screen cylinder for filtration

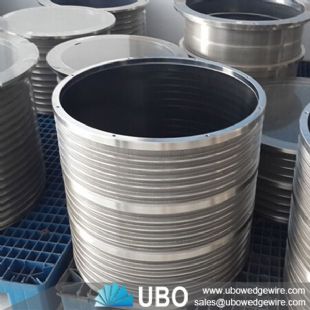

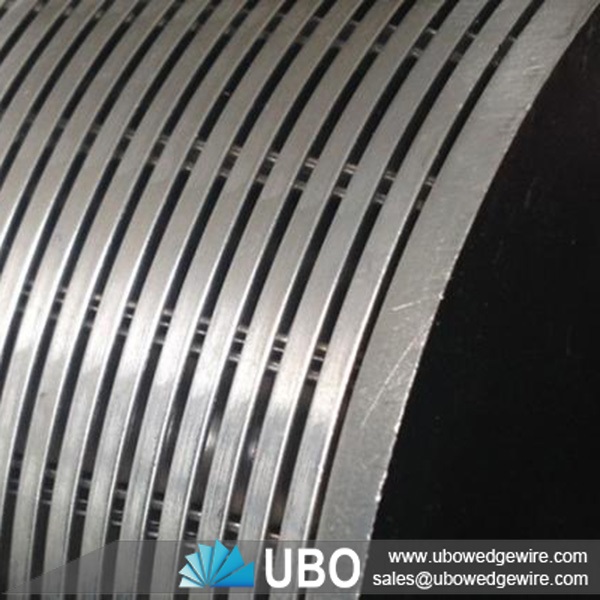

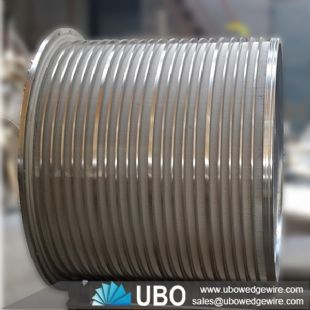

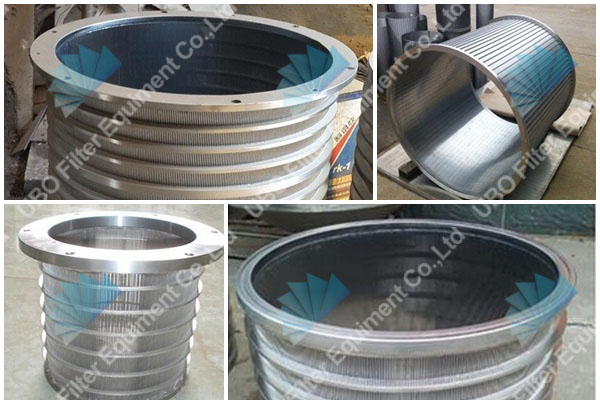

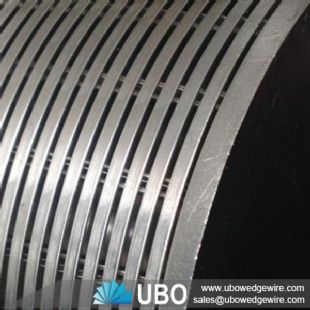

Milling type screen cylinders are manufactured using high quality stainless steel wedge wire and carbon steel flanges and frames. The unique centrifuge basket designs combine our specially selected wedge wire profiles with our field proven support frame and stringent manufacturing standards allowing us to produce top quality baskets that work well and are robust.

The combination of high quality materials, accurate apertures and maximum open areas ensures that the Centrifuge Basket provides you with optimum dewatering and low wear characteristics.

Each of the baskets is dynamically balanced to ensure smooth operation and protection of your centrifuge machines.

Aadvantage of Milling type screen cylinder for filtration

-- Milling counter profile type will create turbulence flow, so that the screen basket cannot clog so easily.

-- With High structural strength, it can be operated in high flow and high consistency.

-- Surface treatment with electrolytic polish and chrome coating can extend the life time of screen basket.

Application of Milling type screen cylinder for filtration

This product can be widely used in mining, coal, petroleum, fertilizer, grain, salt industry, environment protection,etc. Sieving liquid, powder and other materials. Petroleum, chemical industry, metallurgy, mining, pharmaceutical purification, drilling liquid purification and other industries use.

Milling type screen cylinder for filtration

Specifications of Milling type screen cylinder for filtration:

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70....
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00....
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70....
Height(mm): 2.70 3.60 4.70 5.60 6.30....
Round: From 2.50mm to 6.0mm....
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings


Milling type screen cylinder for filtration

Packaging and Transportation of Milling type screen cylinder for filtration:

transportation
